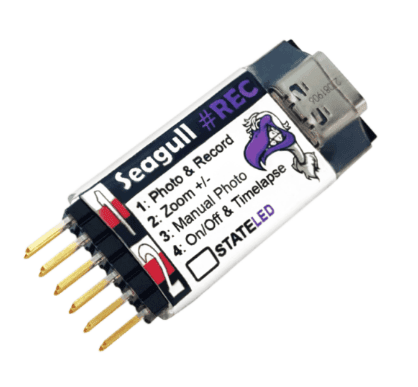

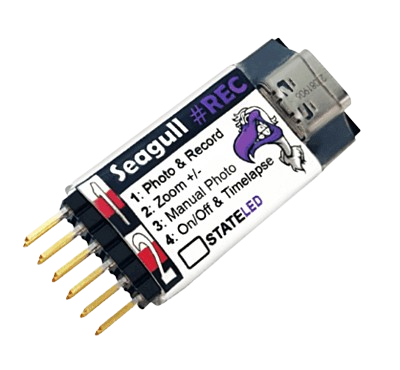

SEAGULL-REC CAMERA TRIGGERS
Specifications
- Current draw: 25mA (average)
- Input signal: Standard R/C PWM servo signal (between 1000 – 2000uS)
- Dimensions: 41mm x 17.5mm x 6.1mm
- Weight: 4g
#REC – Take Control.
Take control and capture the moment with Seagull #REC – exclusively designed for Sony MULTI equipped cameras!
#REC gives you the utmost control of your camera whilst in flight – from shutter control to video record, zoom and more. #REC is the most reliable Sony MULTI camera controller designed for usage within UAV industry.
It’s a perfect solution if you are working within Aerial Videography, Photography, Geomapping, Agriculture Analysis, 3D modelling or similar fields where you need utmost control of your camera.
Take control and capture the moment with Seagull #REC – exclusively designed for Sony MULTI equipped cameras!
#REC gives you the utmost control of your camera whilst in flight – from shutter control to video record, zoom and more. #REC is the most reliable Sony MULTI camera controller designed for usage within UAV industry.
It’s a perfect solution if you are working within Aerial Videography, Photography, Geomapping, Agriculture Analysis, 3D modelling or similar fields where you need utmost control of your camera.
What it does
Seagull #REC supports the following modes
• Video record Start/Stop
• Zoom ( Variable Zoom In/Out speeds )
• 2 Auto Photo modes ( Pre-focus and Instant )
• Manual Photo mode
• Camera On/Off
• Timelapse ( Variable interval shutter release )
What it supports
The following hardware is supported
Flight Controllers:
- Pixhawk 1
- Pixhawk 2.1
- Pixracer
- APM 2.6
- APM 2.5
- DJI Wookong
- DJI A2
- DJI A3
– and many others with camera support
R/C radio systems:
- That interfaces with standard PWM signal (almost any radio system)
What you get
The following is part of this product
- 1 x Seagull #REC
- 4 x Servo cables ( 30cm length )
– all the support your could wish for!
The following is part of this product
- 1 x Seagull #REC
- 4 x Servo cables ( 30cm length )
– all the support your could wish for!
Specifications
Details for Seagull #REC
- Voltage: 3.6 – 16 volts ( 5 volts recommended – do NOT exceed 16V! ) *can be optionally powered by camera
- Current draw: 25mA (average)
- Input signal: Standard R/C PWM servo signal ( between 1000 – 2000uS )
- Dimensions: 41mm x 17.5mm x 6.1mm
- Weight: 4g
Details for Seagull #REC
- Voltage: 3.6 – 16 volts ( 5 volts recommended – do NOT exceed 16V! ) *can be optionally powered by camera
- Current draw: 25mA (average)
- Input signal: Standard R/C PWM servo signal ( between 1000 – 2000uS )
- Dimensions: 41mm x 17.5mm x 6.1mm
- Weight: 4g
