SEAGULL-MAP2 WITH SONY S2 (ANGLED-S) CABLE COMBO
₹4,319.00 ₹8,999.00

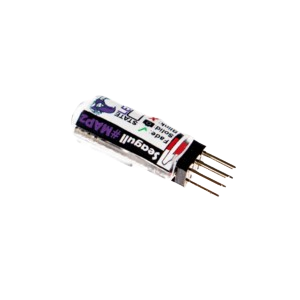

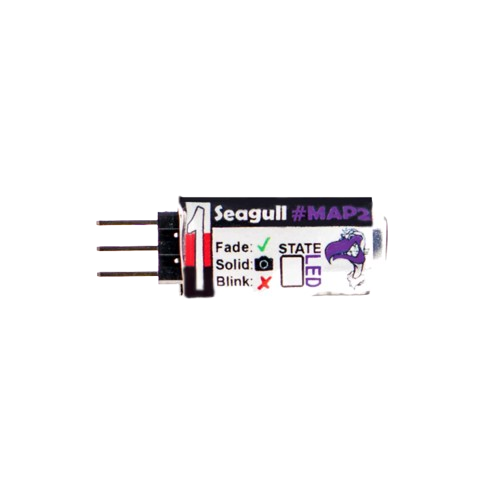

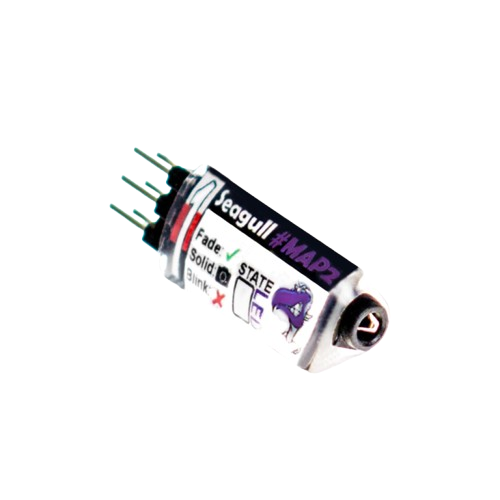

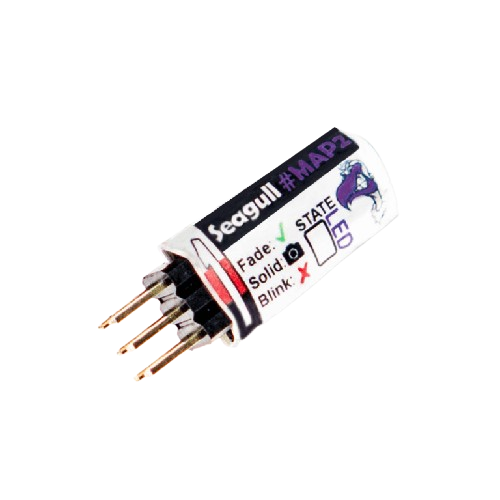

The Seagull #MAP2 is a next-generation professional camera trigger and event logger, ideal for high-precision aerial mapping and 3D modeling. This combo includes a specialized angled Sony S2 (Angled-S) cable for seamless integration with Sony cameras. It captures exact photo coordinates at high rates, supports various triggering methods, and offers internal data logging for efficient geotagging and unparalleled accuracy.
Choose Quantity
Product Details
Features:
- Next-generation precision triggering and logging.
- Logs exact camera exposure events.
- High logging rate (up to 25Hz).
- Includes specialized Sony S2 (Angled-S) camera cable.
- Supports various trigger modes (PWM, TTL, Button).
- Internal data logging to microSD card.
- On-board IMU logging for enhanced precision.
- External altimeter support (LightWare LiDAR).
- Real-time flight controller integration.
- Robust design for professional UAV use.
- AF-T ( 1 sec pre-autofocus – then trigger )
- IS-T ( Instant trigger – as soon as camera locks focus )
- Camera On/Off ( Only with Sony “MULTI” interfaced cameras! )
- Timelapse ( Shutter release with variable time interval )
- Keep-alive ( Sony QX1 keep-alive mode, prevents camera from auto power off )
Technical Specifications:
- Voltage: 3.5 – 5.5 volts ( 5 volts recommended, do NOT exceed 5.5V! )
- Current draw: 21.75mA MAX
- Input signal: Standard R/C PWM servo signal ( between 1000 – 2000uS )
- Dimensions: 28.6mm x 10.3mm x 7.7mm
- Weight: 1.6g ( ~12g with cables – varies by cable type )
- External Sensor Compatibility: Compatible with Lightware LiDAR altimeters (supports external altimeter data logging)
- Camera Cable: Sony S2 (Angled-S Type) - specific angled connector designed for Sony "MULTI" cameras for optimal fit in tight spaces.
- Supported Camera Functions (with Sony "MULTI"): Shutter, Video Record, Camera ON/OFF (requires specific camera firmware features).
- Supported Flight Controllers: Pixhawk 1, Pixhawk 2.1, Pixracer, APM 2.5, APM 2.6, DJI Wookong, DJI A2, DJI A3, ArduPilot (and others with PWM/TTL camera support).
Additional Details:
- Manufacturer: Seagull
- Brand: Seagull
- Generic Name: Camera Trigger || UAV Camera Controller || Geotagging Module || Drone Mapping Accessory || Camera Logger || Precision Camera Trigger || Aerial Surveying Tool || Remote Photography Device || Camera Control System || Drone Component
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: High-Precision Aerial Mapping || 3D Modeling and Photogrammetry || Autonomous Drone Missions || RTK/PPK Drone Systems || Professional Surveying Operations || Agriculture Analysis || Surveillance || Commercial UAV Operations || Users demanding exact photo coordinates and reliable event logging.
Package Details:
Includes:
- 1 x Seagull #MAP2
- 2 x Servo cables ( 30cm length )

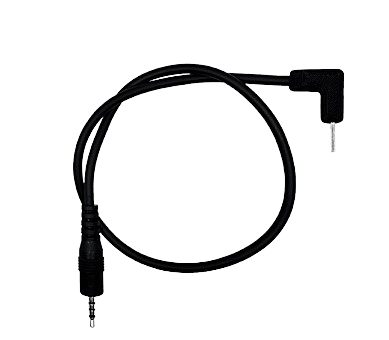

- 1 x Sony S2 (Angled-S) Camera Cable
Frequently Asked Questions:
Q1. What is the primary purpose of the Seagull #MAP2 in this combo?
Ans. The Seagull #MAP2 is a next-generation precision camera trigger and logger specifically designed to capture the exact geographical coordinates of each photo taken, crucial for highly accurate geotagging in mapping, surveying, and 3D modeling applications.

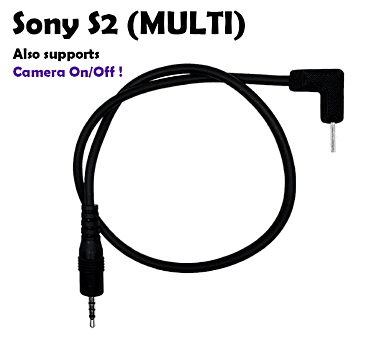

Q2. What is unique about the included Sony S2 (Angled-S) cable?
Ans. The Angled-S cable is a specialized version of the Sony S2 cable featuring an angled connector, designed to provide a more compact and secure fit for Sony "MULTI" cameras, particularly useful in tight drone mounting spaces.
Q3. How does the Seagull #MAP2 enhance precision for drone mapping?
Ans. The #MAP2 logs actual camera exposure events at a high rate (up to 25Hz) and integrates on-board IMU data (GPS-synced) along with optional external altimeter data, providing highly accurate timestamps and positional information for post-processing and precise geotagging.
