SEAGULL-MAP X2 WITH SONY S2 (ANGLED) CABLE COMBO
₹27,409.00 ₹39,570.00

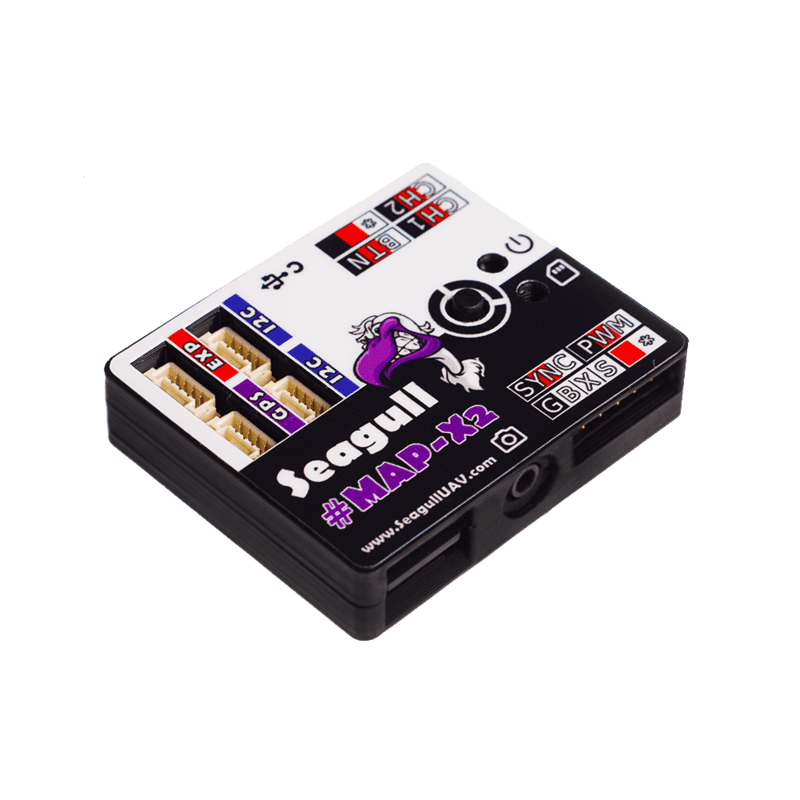

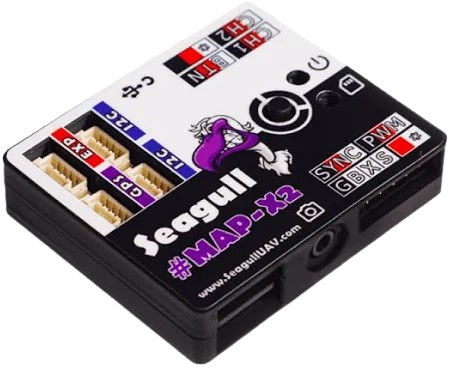

The Seagull #MAP-X2 is a professional-grade camera trigger and logger, providing extreme precision for aerial mapping. This combo includes the angled Sony S2 cable for seamless integration with Sony cameras. It captures exact photo coordinates (up to 25Hz), supports various trigger modes (ACT, TIMELAPSE, etc.), and offers internal data logging for efficient geotagging and 3D modeling.
Choose Quantity
Product Details
Features:
- High rate data logging RTK / PPK / MB / GNSS – up to 25Hz!
- Direct camera feedback – 1:1 ratio between photos & coordinates
- Various trigger modes – SHOE-STATE, ACT, PWM, BUTTON, TIMELAPSE
- Trigger and LOG – with or without SYNC feedback
- Easy geotagging – Pix4D / EXIF
- Internal data logging – download logs via USB or uSD
- #IMU Logging– increased precision + reduced processing time for ORTOPHOTO and 3D models
- External Altimeter support – LightWare LiDAR
- Extensive camera compatibility – simply switch to a different camera cable
- GNSS messages supported for logging – NMEA-GGA / UBX-NAV-PVT / UBX-RXM-RAWX + UBX-RXM-SFRBX
- Wide range of Flight Controllers / GNSS receivers supported!
Technical Specifications:
- Voltage: 3.9 – 12V (5 volts recommended – do NOT exceed 12V!)
- Current draw: 17mA MIN, 43mA AVERAGE, 55mA MAX
- Input signal: TTL or Standard R/C PWM servo signal ( between 1000 – 2000uS )
- Dimensions: 48mm x 40mm x 11mm
- Weight: 20g
- Flight Controllers: Pixhawk 1, Pixhawk 2.1, Pixracer, APM 2.6, APM 2.5, DJI Wookong, DJI A2, DJI A3 – and many others with camera support
- R/C radio systems: That interfaces with standard PWM signal (almost any radio system)
- Seagull: #GPK, #GPK2, #IMU, #SYNC2
Supported Camera Functions:
- SST ( Logging based on SYNC event etc. manual camera triggering )
- ACT ( Regular camera shutter trigger mode with pre-definable focus time )
- PWM ( User-definable PWM signal output for triggering cameras such as Flir Vue Pro etc.)
- BUTTON ( Button based trigger execution for ACT and PWM modes )
- TIMELPASE ( Precise interval based camera triggering )
- CAMERA ON/OFF ( Only supported with Sony “MULTI” interfaced cameras! )
Additional Details:
- Manufacturer: Seagull
- Brand: Seagull
- Generic Name: Camera Trigger || UAV Camera Controller || Geotagging Module || Drone Mapping Accessory || Camera Logger || Precision Camera Trigger || Aerial Surveying Tool || Remote Photography Device || Camera Control System || Drone Component
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Geomapping || Agriculture Analysis || 3D Modeling || Surveillance || Aerial Photography || Autonomous Drone Missions || RTK/PPK Drone Systems || High-Precision Surveying || Commercial UAV Operations || Users demanding exact photo coordinates.
Package Details:
Includes:
- 1 x Seagull #MAP-X2
- 2 x Servo cables ( 30cm length )
- 1 x 16GB micro SD card ( w. fullsize adaptor )
- 1 x #GPK to #MAP-X2 cable (Purple)

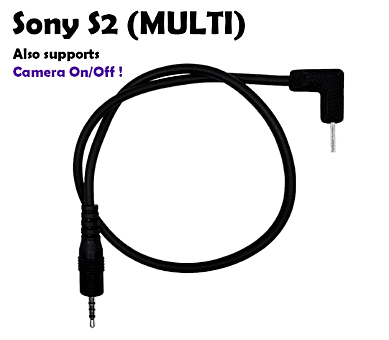

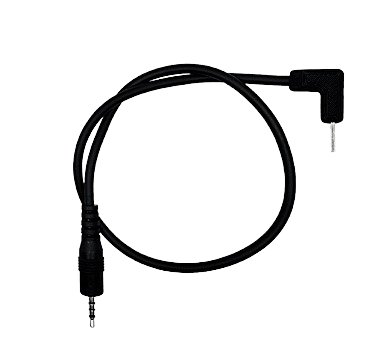

- 1 x Sony S2 (Angled) Camera Cable
Frequently Asked Questions:
Q1. What is the main purpose of the Seagull #MAP-X2 in this combo?
Ans. The Seagull #MAP-X2 is a precision camera trigger and logger designed to capture the exact geographical coordinates of each photo taken, making it an essential tool for accurate geotagging in mapping, surveying, and 3D modeling applications.
Q2. Which Sony cameras are compatible with the included Sony S2 (Angled) cable?
Ans. The Sony S2 cable is designed for Sony cameras featuring the "MULTI" interface (e.g., Sony A6000, A6100, A6300, A6400, A6500, A5000, A5100, RX100 series, QX1, etc.), which allows for both shutter control and camera ON/OFF functions.
Q3. Can the Seagull #MAP-X2 be used for both manual and autonomous camera triggering?
Ans. Yes, the #MAP-X2 supports various trigger modes, including manual triggering via an R/C transmitter and automated triggering through compatible flight controllers like Pixhawk or DJI systems for autonomous mapping missions.
