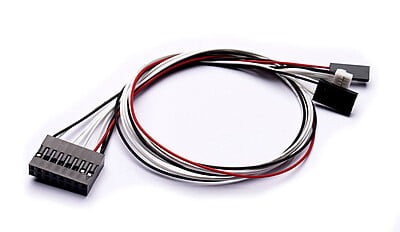

RFD-RFD900X WITH MULTI CABLE MODEM BUNDLE

General

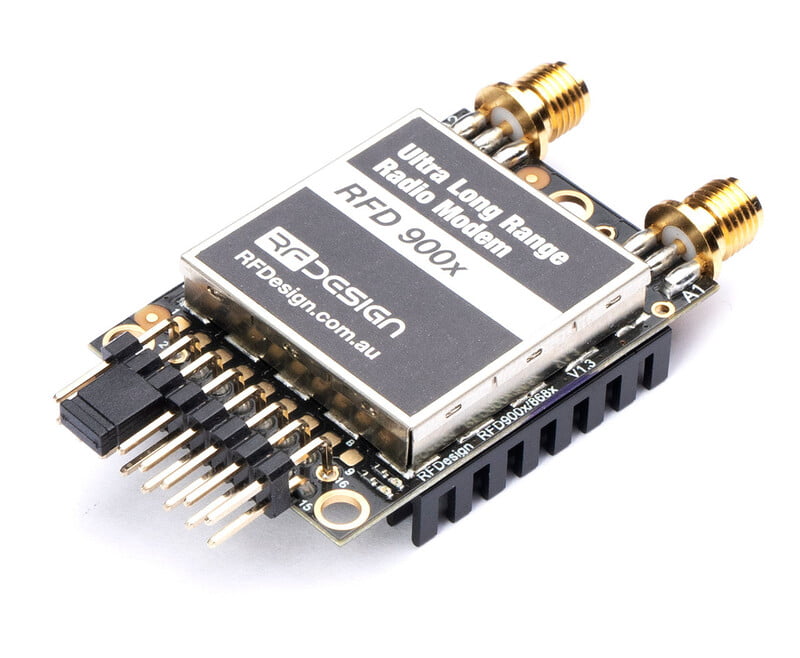

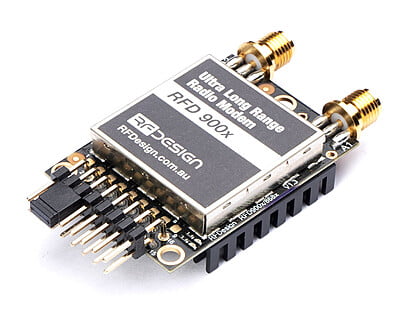

The RFD 868x Modem by RFDesign is a ultra long-range RF modem with 1 Watt transmission power. This enables ranges of up to 40km (Peaks: 80km demonstrated by Edge Research labs on a balloon !, 57km in India, on Dipoles). The software "SiK" is an Open Source development. A Boot Loader and interface are provided for adjustments of model firmware via a serial port.

Features

• Long range >40km depending on antennas and GCS setup *80km demonstrated by Edge Research labs on a balloon !, 57km in India, on Dipoles.
• 2 x RP-SMA RF connectors, diversity switched.
• 1 Watt (+30dBm) transmission power.
• Transmit low pass filter.
• > 20dB Low noise amplifier, high IP3.
• RX SAW filter.
• All I/O ESD protected and filtered.
• Re implemented SiK and Multipoint SiK firmware, field upgradeable, easy to configure.
• Small, light weight.
• Note: Not compatible with older modems

Interfaces/Ports

• RF : 2 x RP-SMA connectors
• Serial: Logic level TTL (+3.3v)
• Power: +5v, ~800mA max peak (at maximum transmission power)
• GPIO: 6 General purpose IO (Digital, ADC, PWM capable).

Specification

• Frequency Range:  868-869 MHz
• Output Power: 1W (+30dBm), controllable in 1dB steps ( +/- 1dB @=20dBm typical )
• Air Data transfer rates: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250, 500 kbit/sec ( User selectable, 64k default )
• UART data transfer rates: 9600, 19200, 38400, 57600, 115200, 400k, 921k baud  ( User selectable, 57600 default )
• Output Power: 1W (+30dBm)
• Receive Sensitivity: >121 dBm at low data rates, high data rates (TBA)
• Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
• Weight: 14.5g
• Mounting: 3 x M2.5 screws, 3 x header pin solder points
• Power Supply: +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
• Temp. Range: -40 to +85 deg C, tested operational from -73 to +123 deg C°
