READYTOSKY-SG 90 9G MINI MICRO SERVO
₹299.00
Out of stock
- Model: SG90
- Weight: 9 gm
- Operating voltage: 3.0V~ 7.2V
- Servo Plug: JR
- Stall torque @4.8V : 1.2kg-cm
- Stall torque @6.6V : 1.6kg-cm
Product Details
Features :
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power

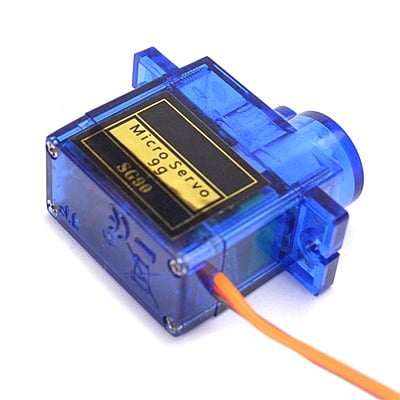

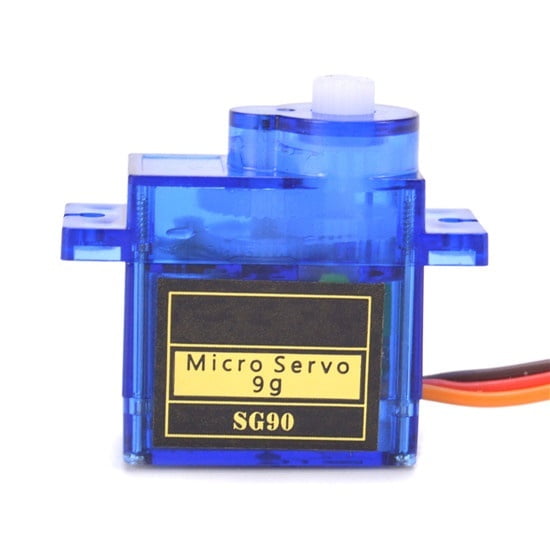

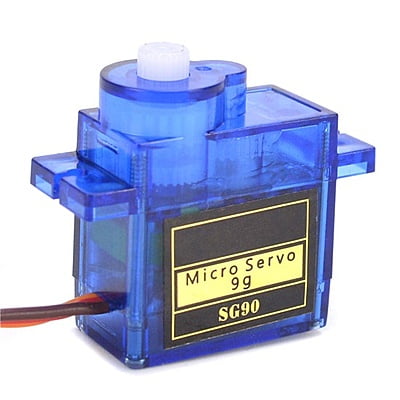

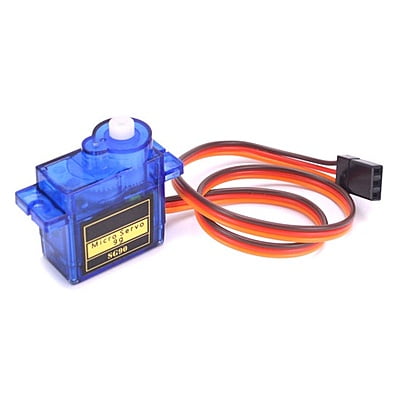

SG 90 9G Mini Micro Servo Plastic
This is the most popular mini servo. Only weighs 9 grams and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam-type robots.
Key features:
• Translucent body
• Lightweight
• Less noise
SG90 servo parameters
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
No load speed: 0.12 sec / 60 deg (4.8 V)
Stall torque: 1.5-1.7kg/cm (4.8V-6V)
Operating temperature: -30~~+60 degrees Celsius
Dead zone setting: 5 microseconds
Working voltage: 4.8V-6V
Recommended model: Mini car, mini ship, helicopter, airplane
Color: Blue
