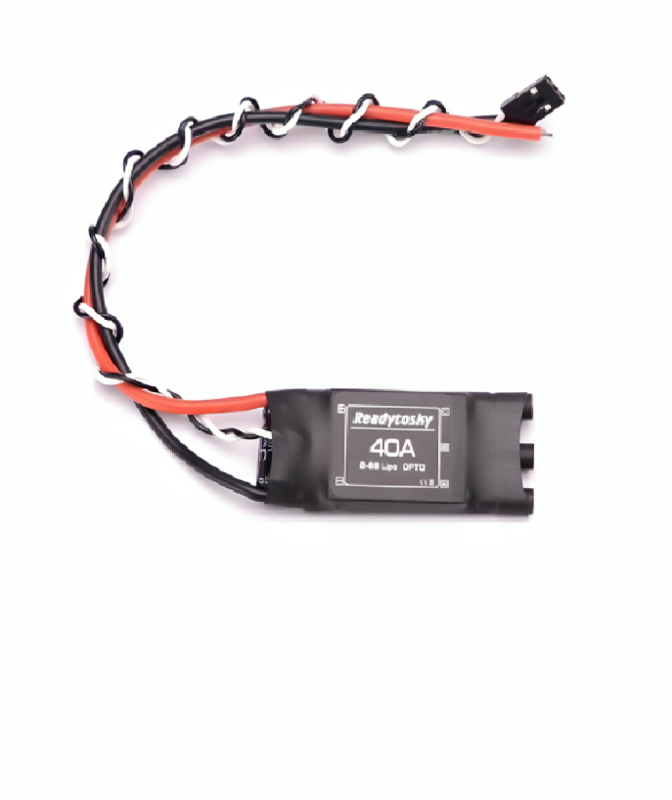

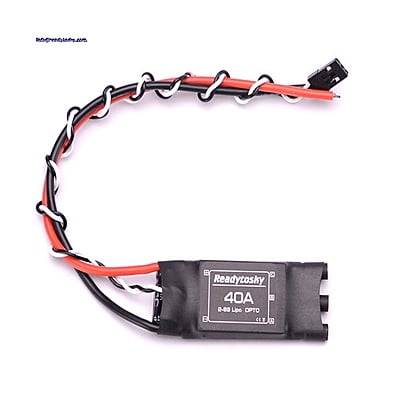

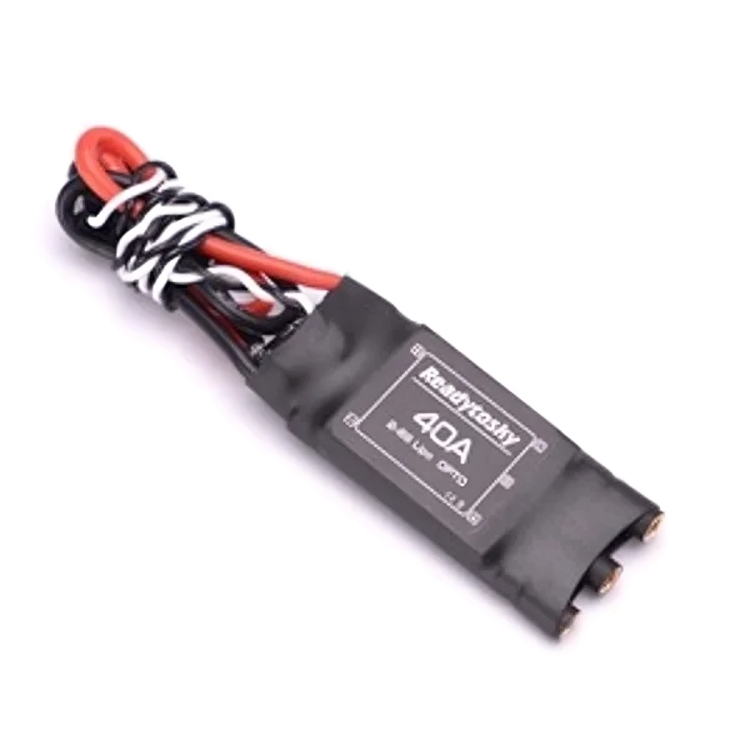

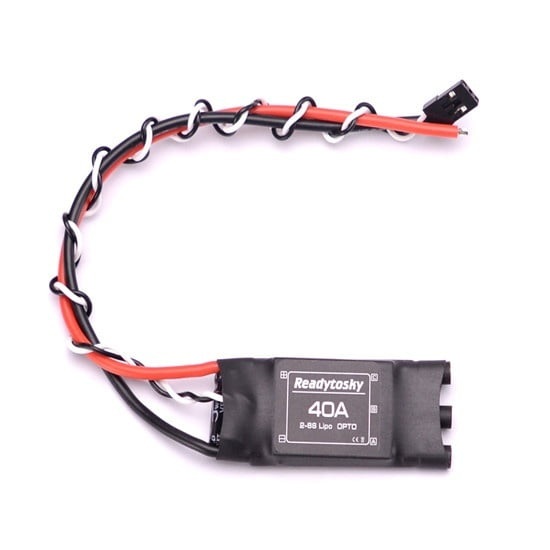

READYTOSKY-2-6S OPTO ESC

Features :

• Supports wide 2S to 6S LiPo input.




• 40 Amps continuous, 60 Amps burst current.




• OPTO design (no built-in BEC).




• Fast throttle response and smooth control.




• Supports high refresh rates (up to 621Hz).




• Optimized firmware for multirotor applications.




• Ultra-low resistance MOSFETs for efficiency.




• Compact and lightweight design.




• Twisted signal wire reduces interference.




• Compatible with various flight controllers.

Technical Specifications :

• Continuous Current: 40A

• Burst Current (10s): 60A

• Input Voltage: 2-6S LiPo (approx. 7.4V - 25.2V)

• BEC Output: None (OPTO)

• Firmware: Multi-integrated special program, optimized for disc motors

• Throttle Signal Refresh Rate: Supports up to 621Hz

• Dimensions: Approx. 68mm x 25mm x 8.7mm (L x W x H)

• Weight: Approx. 26g - 32g (exact weight may vary slightly depending on wires/connectors)

• MOSFET: Ultra-low resistance MOSFETs with special driver integrated circuit.

• Signal Cable: Twisted wire for reduced crosstalk.

• Protection Features: Over-current protection, Over-temperature protection, Low-voltage cutoff

Additional Details:

• Manufacturer: READYTOSKY

• Brand: READYTOSKY

• Generic Name: Electronic Speed Controller || ESC || Brushless ESC || Multirotor ESC || Drone ESC || 2S-6S ESC || OPTO ESC || Motor Controller || Speed Controller || RC ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV Racing Drones || Freestyle Drones || Medium-sized Quadcopters || DIY Drone Builds || General RC Aircraft (without BEC requirement) || Trainer Drones || Hobbyist Multirotors || Drone Repair & Replacement || Custom UAV Projects || Educational Robotics

Package Details:

Includes:

• 1x READYTOSKY 40A (60A Burst) 2-6S OPTO Brushless ESC

Frequently Asked Questions:

Q1. What does the "OPTO" designation mean for this READYTOSKY ESC?

Ans. "OPTO" on an ESC means it does not have a built-in Battery Eliminator Circuit (BEC). This means the ESC directly passes the full battery voltage to the motor side and completely isolates the signal path. You will need a separate UBEC or a flight controller with a built-in BEC to power your receiver, flight controller, and other low-voltage electronics.

Q2. Is this READYTOSKY 2-6S OPTO ESC compatible with modern flight controller protocols like DShot or OneShot?

Ans. The READYTOSKY 2-6S OPTO ESC typically supports high throttle refresh rates (up to 621Hz, beyond standard PWM). While it offers fast response, its compatibility with advanced digital protocols like DShot, OneShot, or MultiShot can vary depending on the specific firmware version. For guaranteed digital protocol support, it's advisable to look for ESCs explicitly stating BLHeli_S or BLHeli_32 firmware.

Q3. What kind of motors is this ESC optimized for?

Ans. This READYTOSKY ESC's firmware is often stated to be specifically optimized for "disc motors," which refers to brushless outrunner motors commonly used in multirotors. It has very good compatibility with a wide range of such motors within its current and voltage limits, ensuring smooth and efficient operation.
