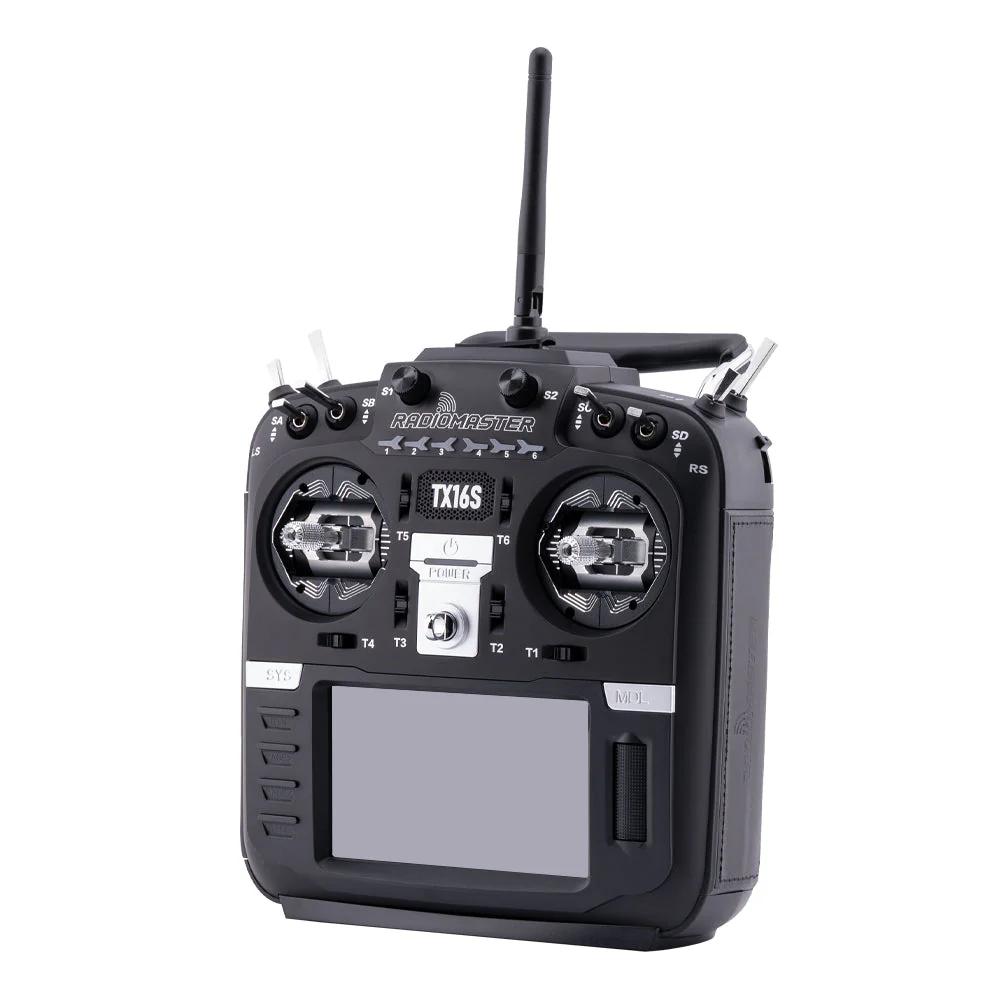

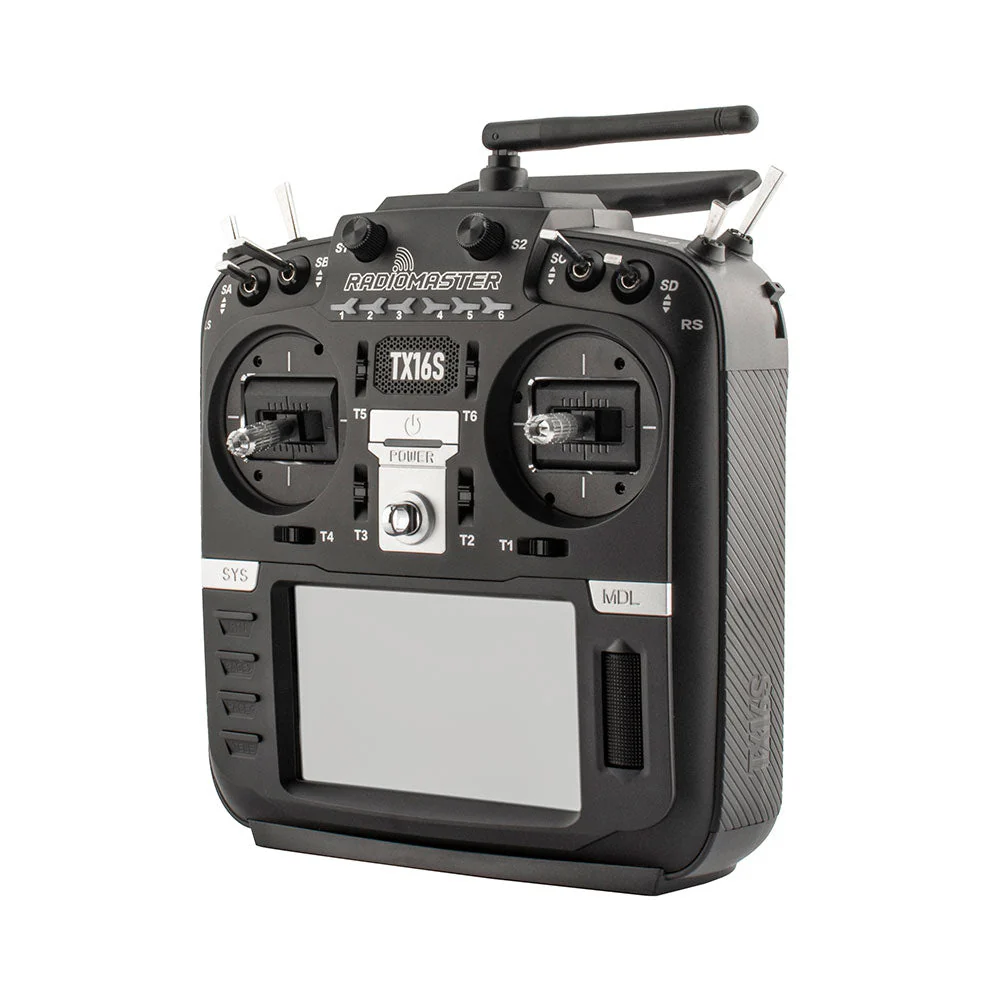

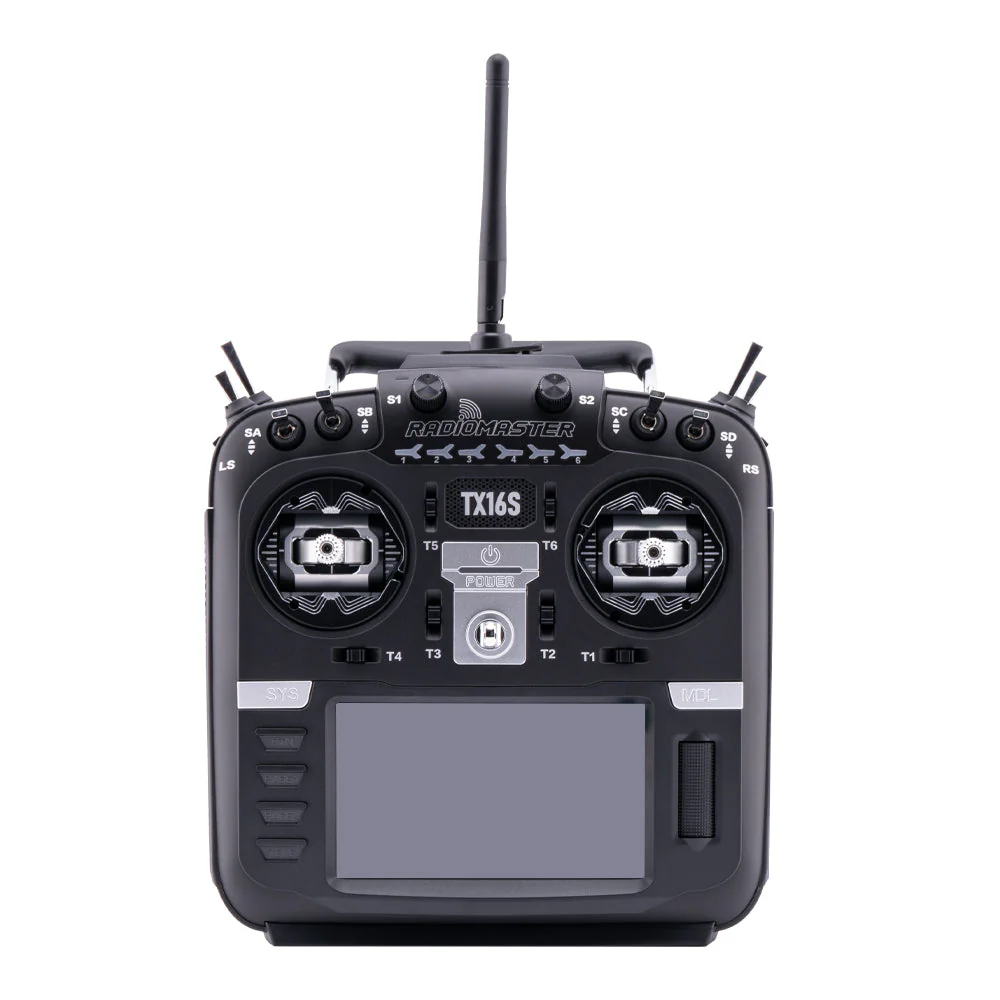

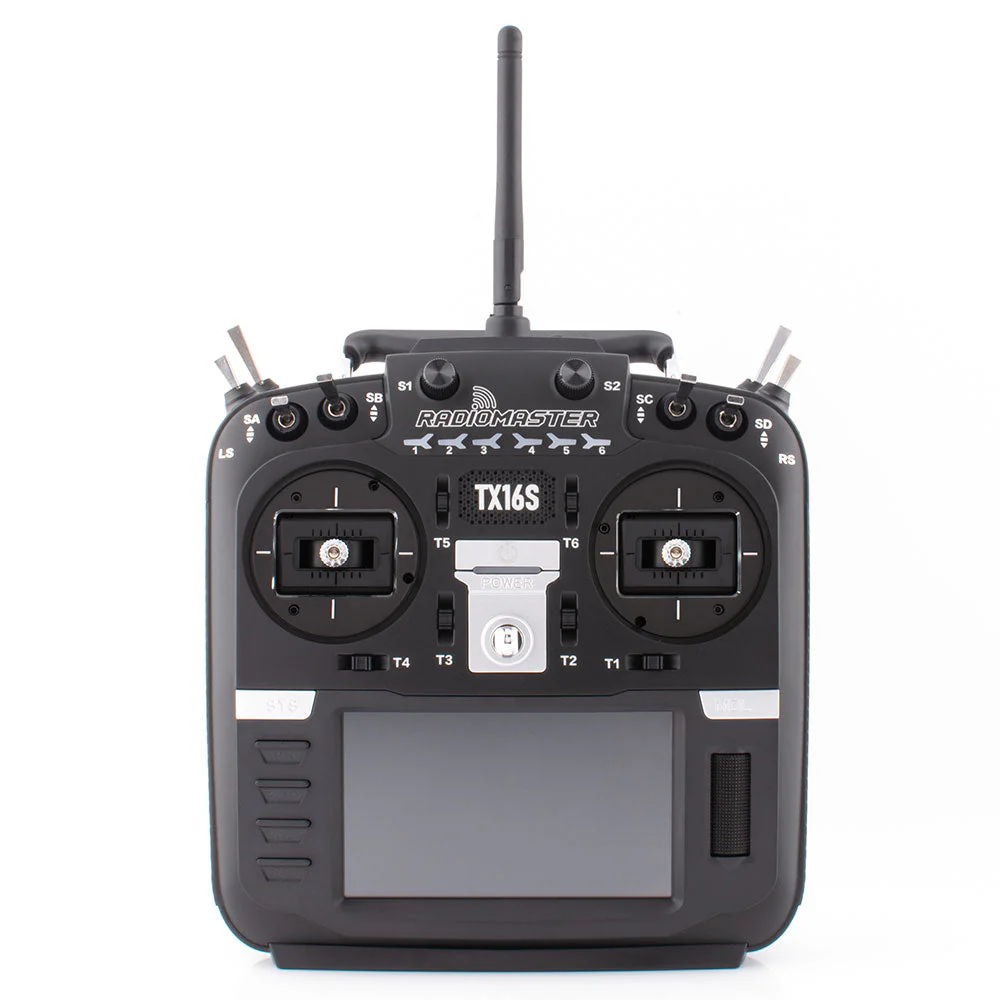

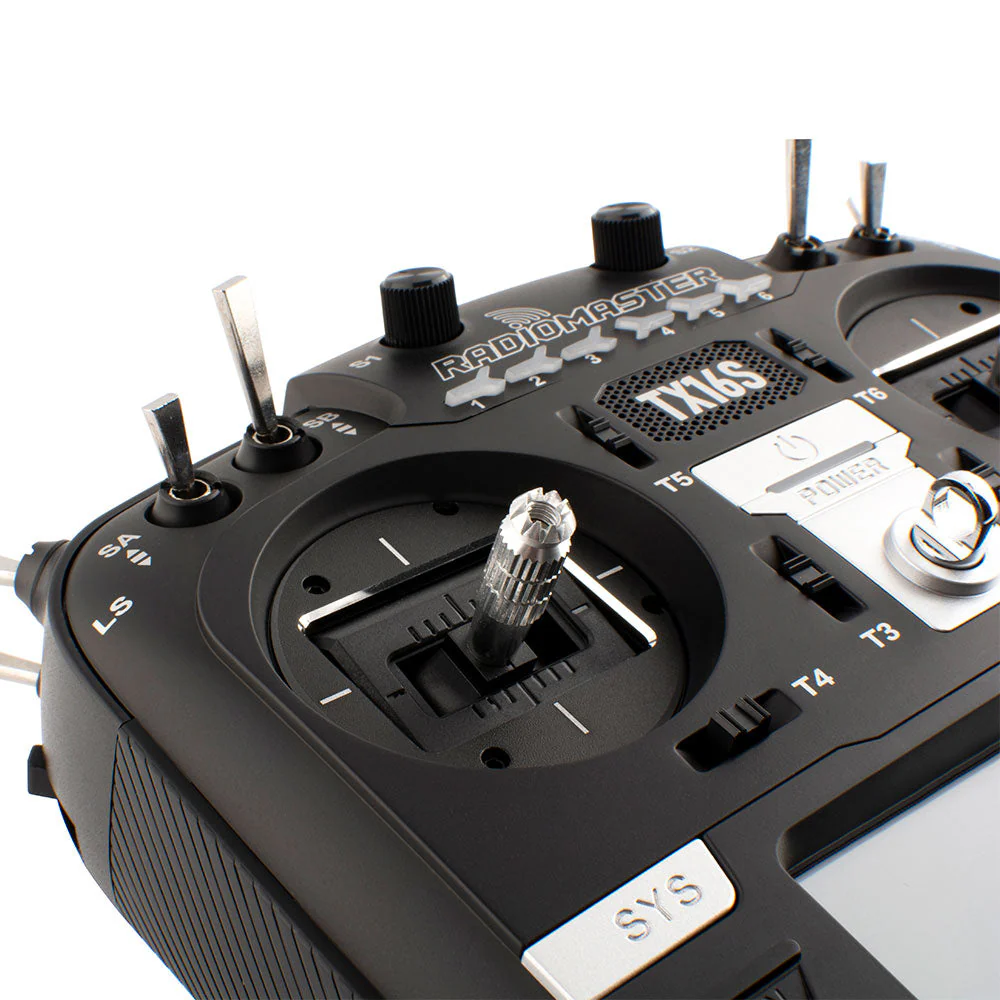

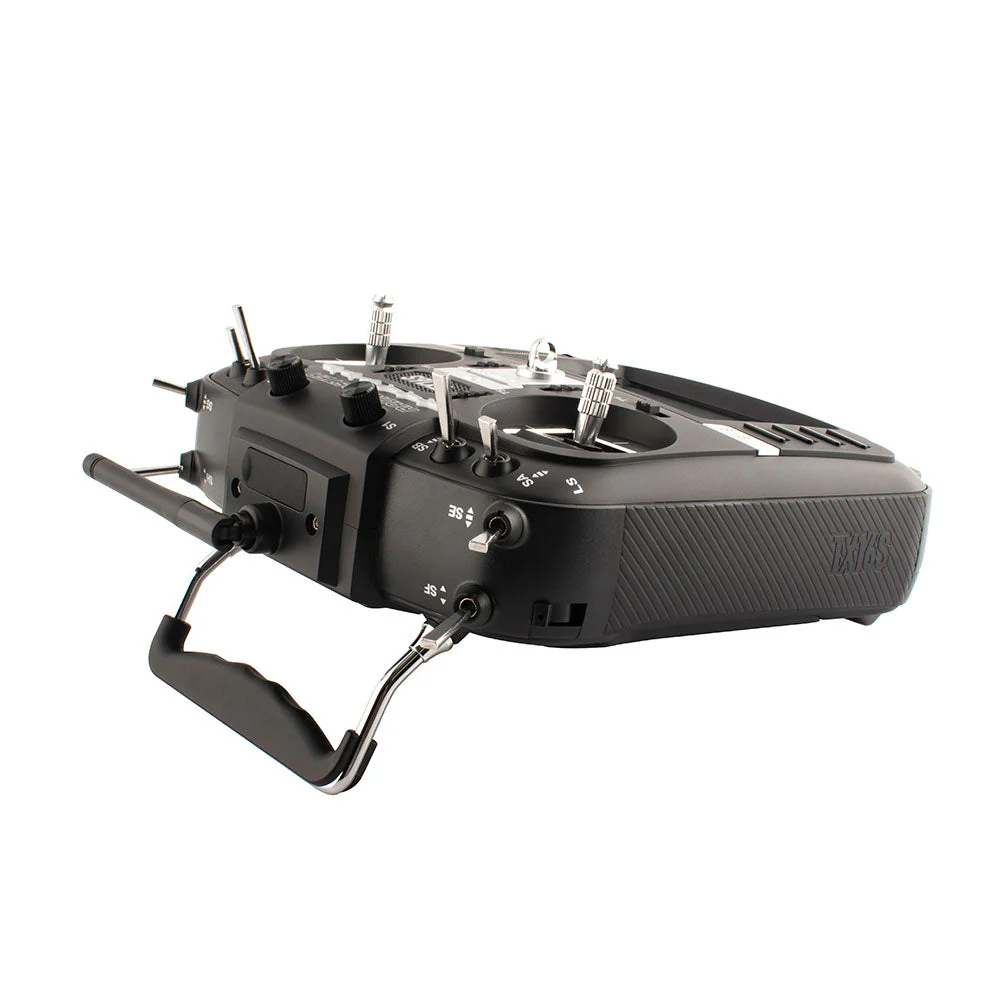

RADIOMASTER-TX16S MK2 TRANSMITTER
Non-returnable
₹20,999.00 - ₹37,499.00
The RadioMaster TX16S MKII Transmitter is a versatile and powerful radio controller designed for RC enthusiasts. Featuring Hall sensor gimbals for precise control, a large color display, and multi-protocol support, it offers exceptional performance across various RC models. Its ergonomic design and OpenTX/EdgeTX compatibility make it a highly customizable and user-friendly choice for both beginners and experienced pilots.
Type
Colour
GIMBAL
Choose Quantity
Product Details
Features:
- Improved internal circuitry and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- Rear-mounted audio jack provided headphone output.
- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).

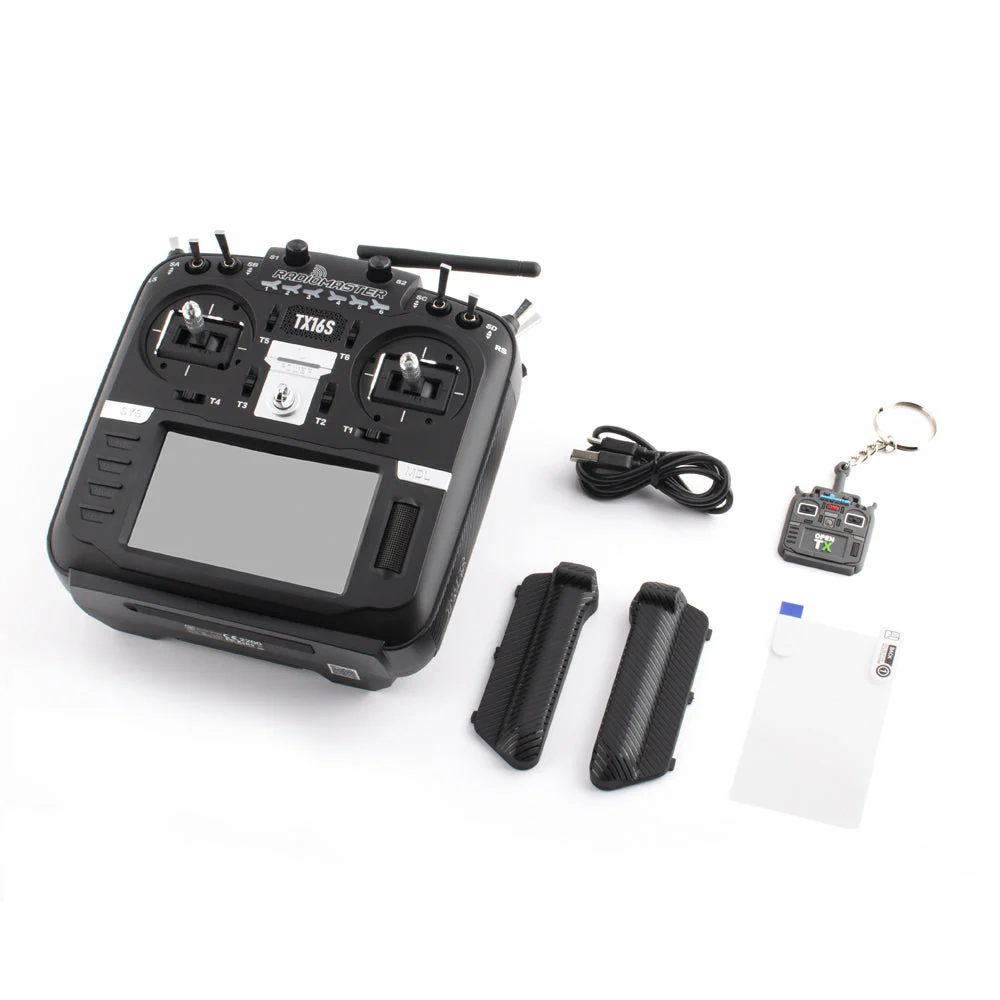

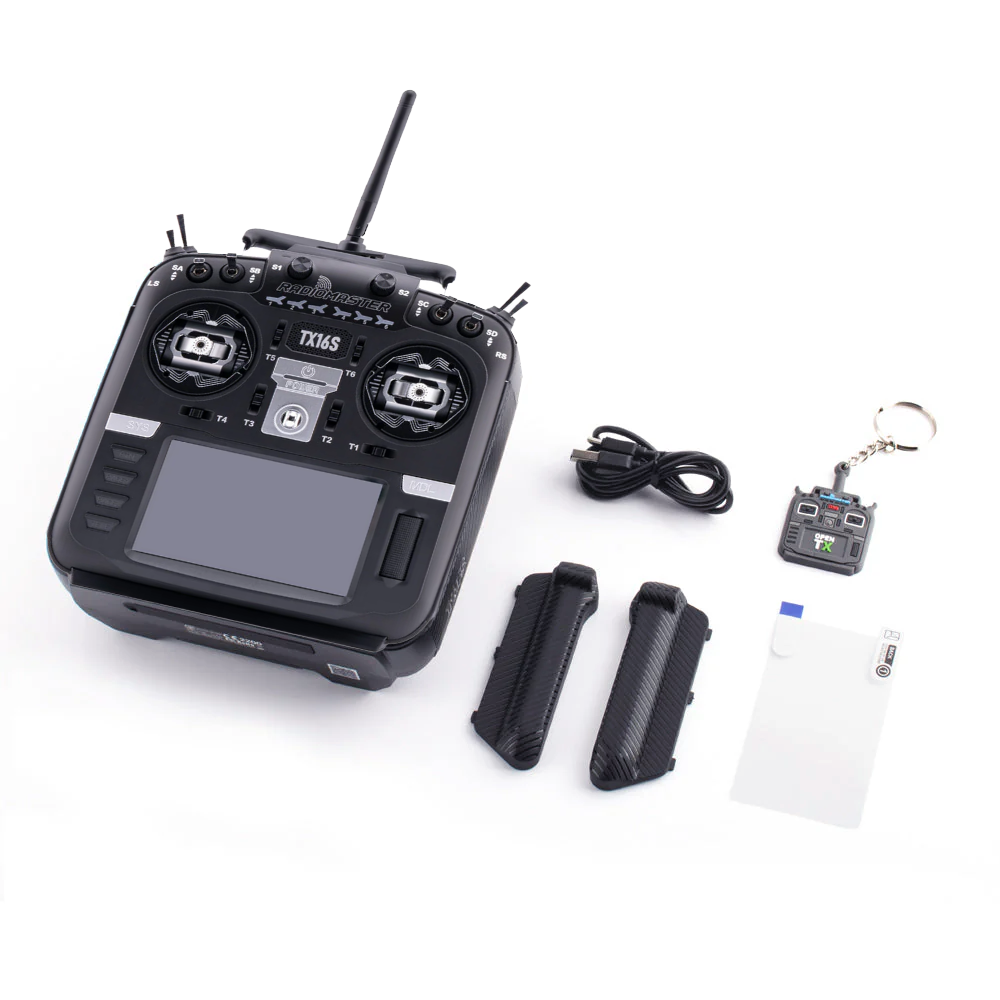

- Optional high/low rear grips are included for improved ergonomics.
- Improved S1/S2 knobs with clear centre-detents.
- Improved LS/RS Sliders with smoother feel and better centre-detents.

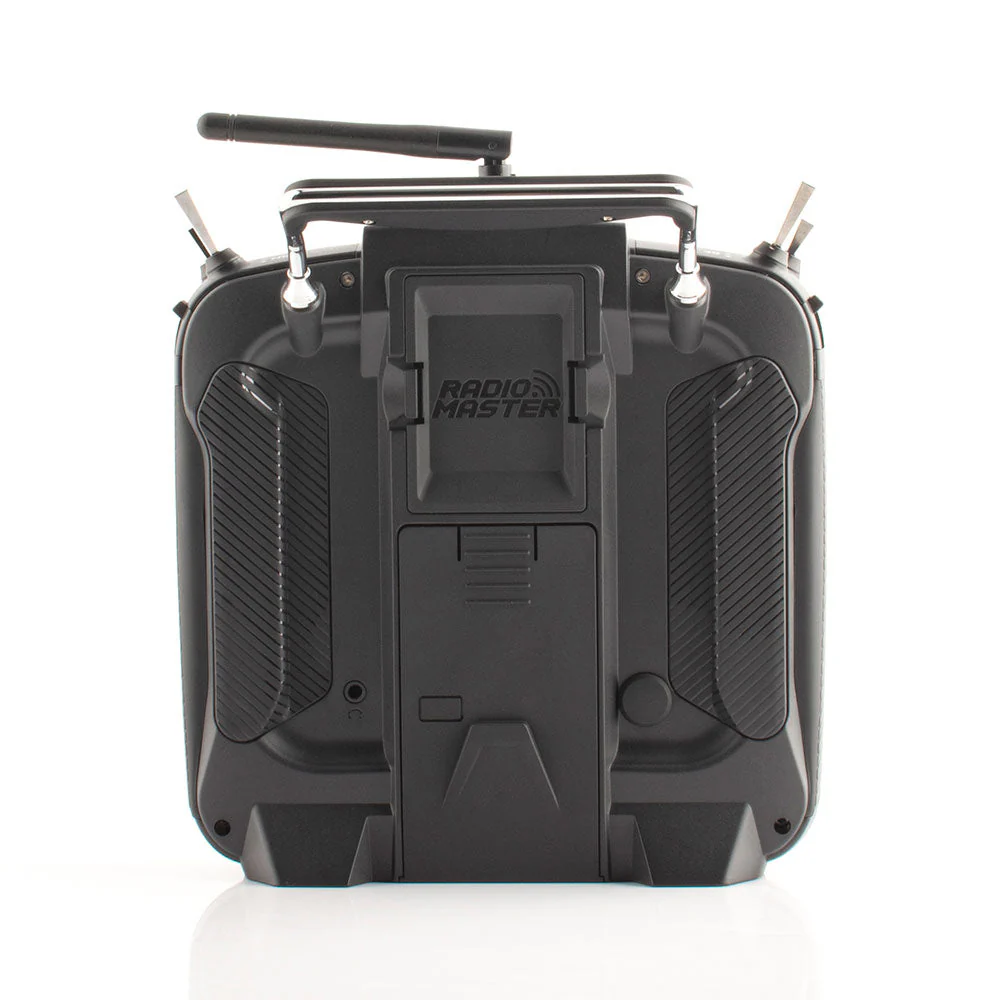

- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalized mods.
- Improved internal plastics for better longevity.
- Built-in ExpressLRS Backpack and 4in1 versions.
Technical Details:
- Item: TX16S Mark II
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz
- Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
- SD card: 256MB by default, 8GB maximum
- Antenna gain: 2db (transmit power adjustable)
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Radio firmware: EdgeTX
- Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on the receiver)
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
Additional Detail:
- Manufacturer: RadioMaster
- Brand: RadioMaster
- Generic Name: RC Transmitter, Remote Control, Radio Controller, Flight Controller
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: RC aircraft, Drones, RC boats, RC cars, Robotics, Model enthusiasts, FPV pilots
Package Details:
- include: 1 x RADIOMASTER-TX16S MK2 TRANSMITTER
Frequently Asked Questions:
Q1: What battery type does the TX16S MKII use?
Ans: It typically uses two 18650 Li-ion cells or a 2S LiPo battery (not included).
Q2: Is the TX16S MKII compatible with all drone types?
Ans: It's compatible with many drone types depending on the receiver protocol used with the internal 4-in-1 module or an external module.
Q3: Can I upgrade the firmware on the TX16S MKII myself?
Ans: Yes, firmware can be easily updated via USB-C or SD card.
