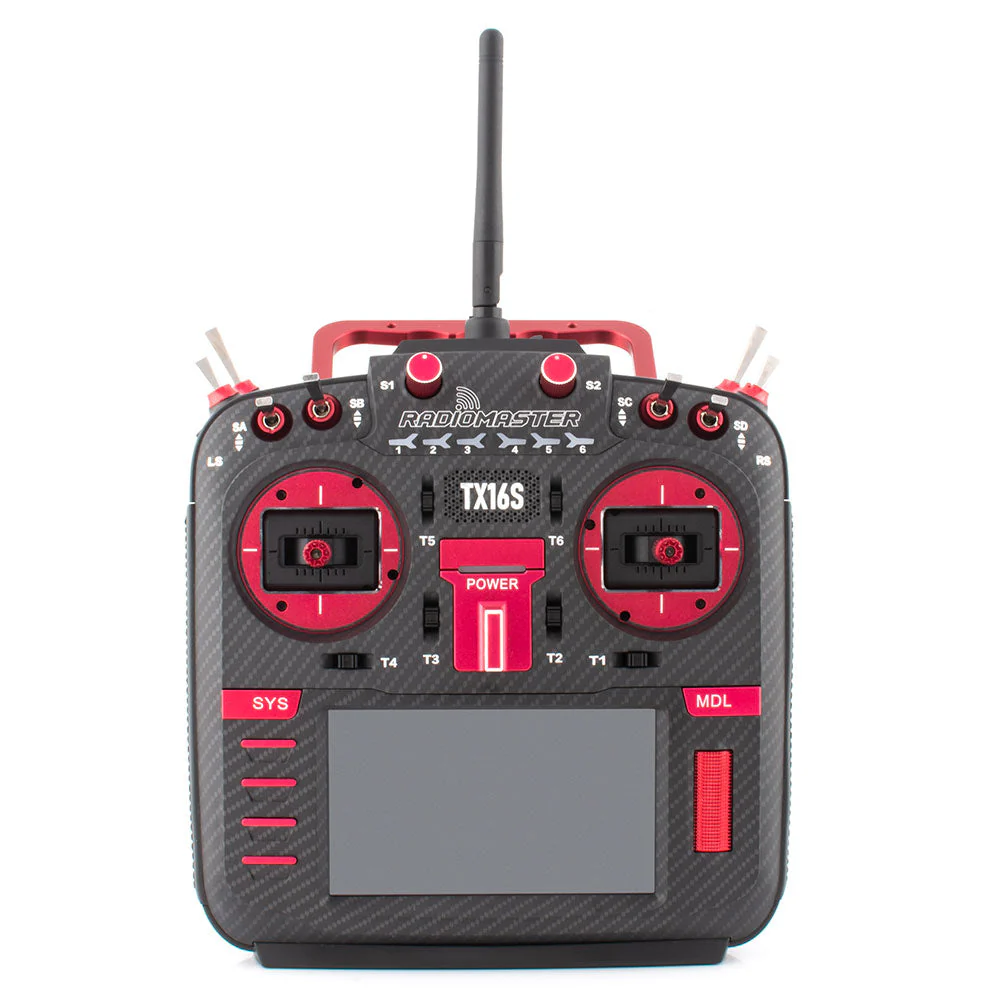

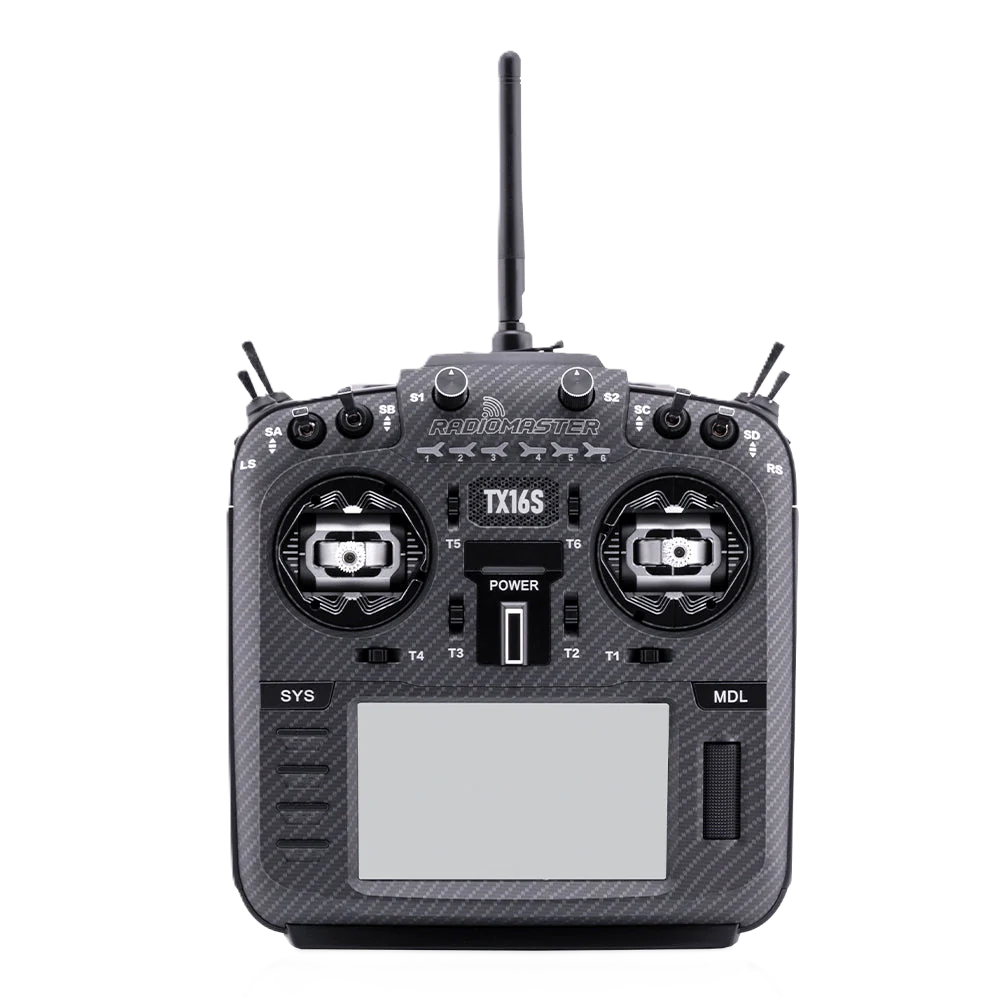

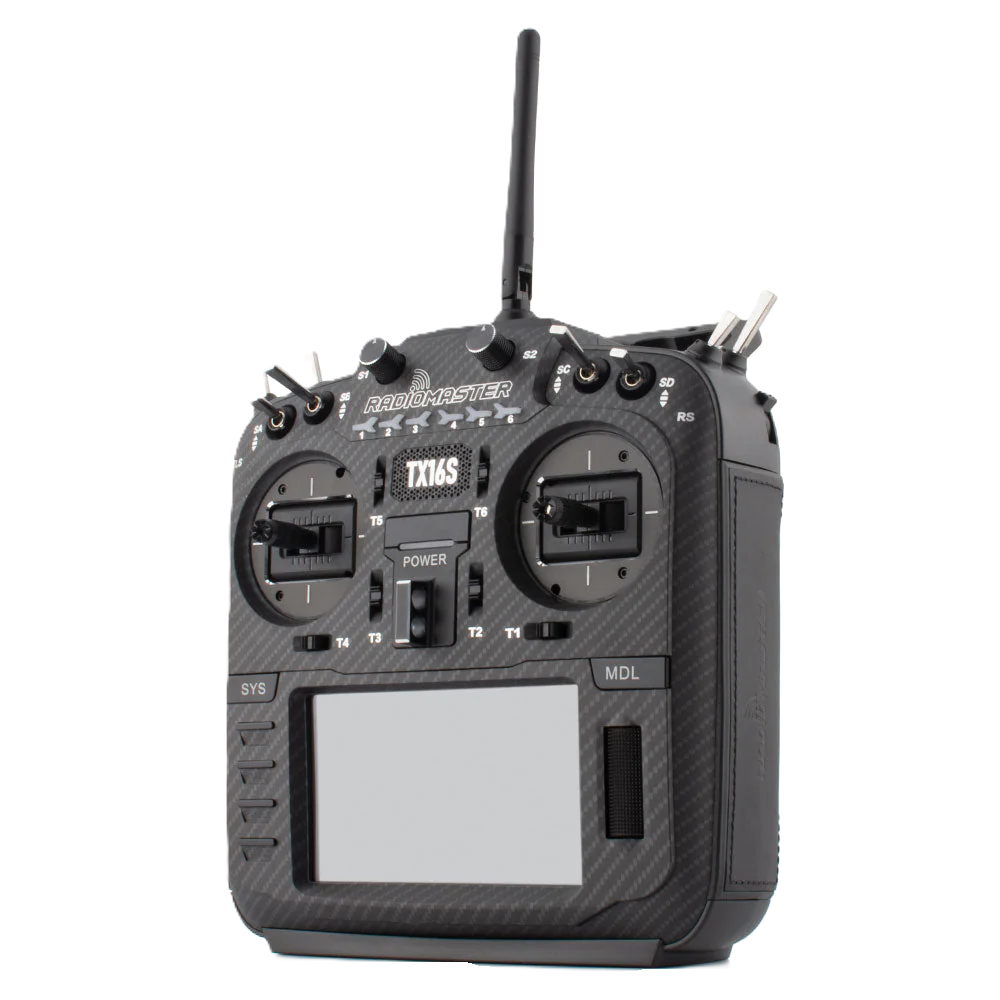

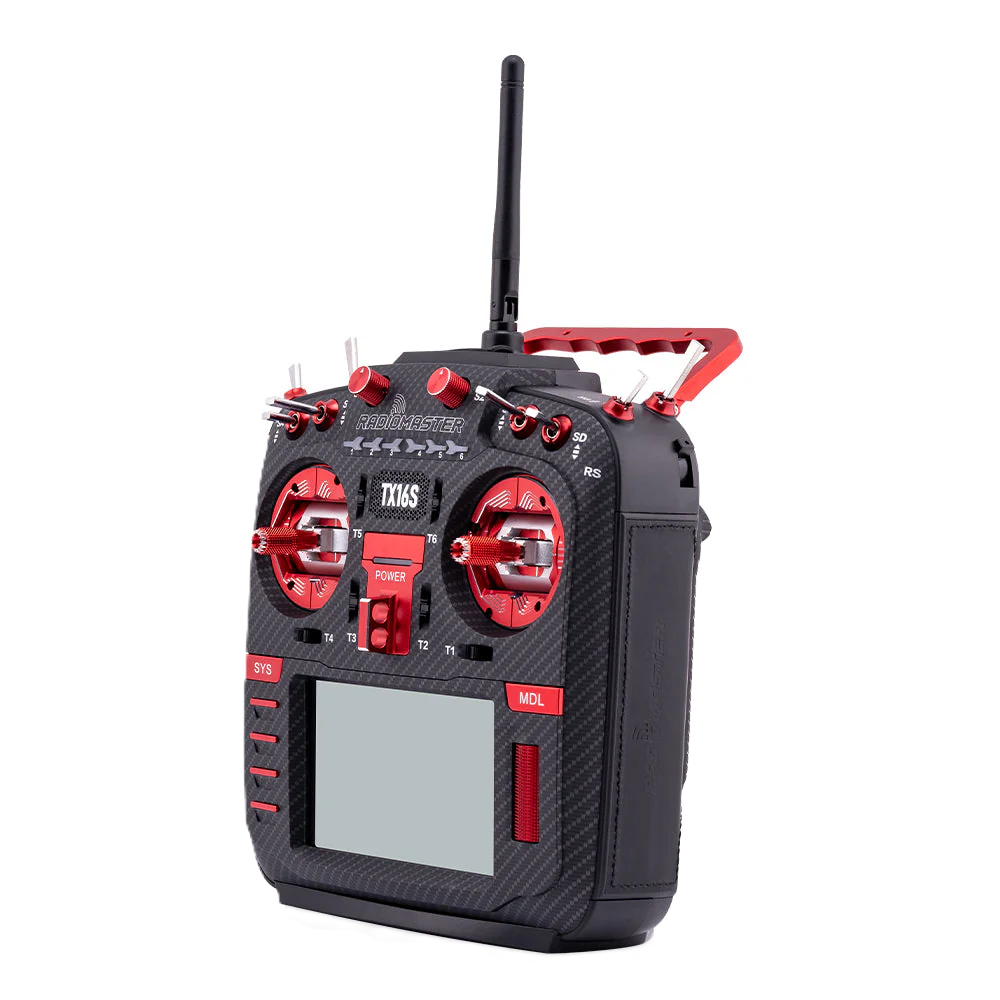

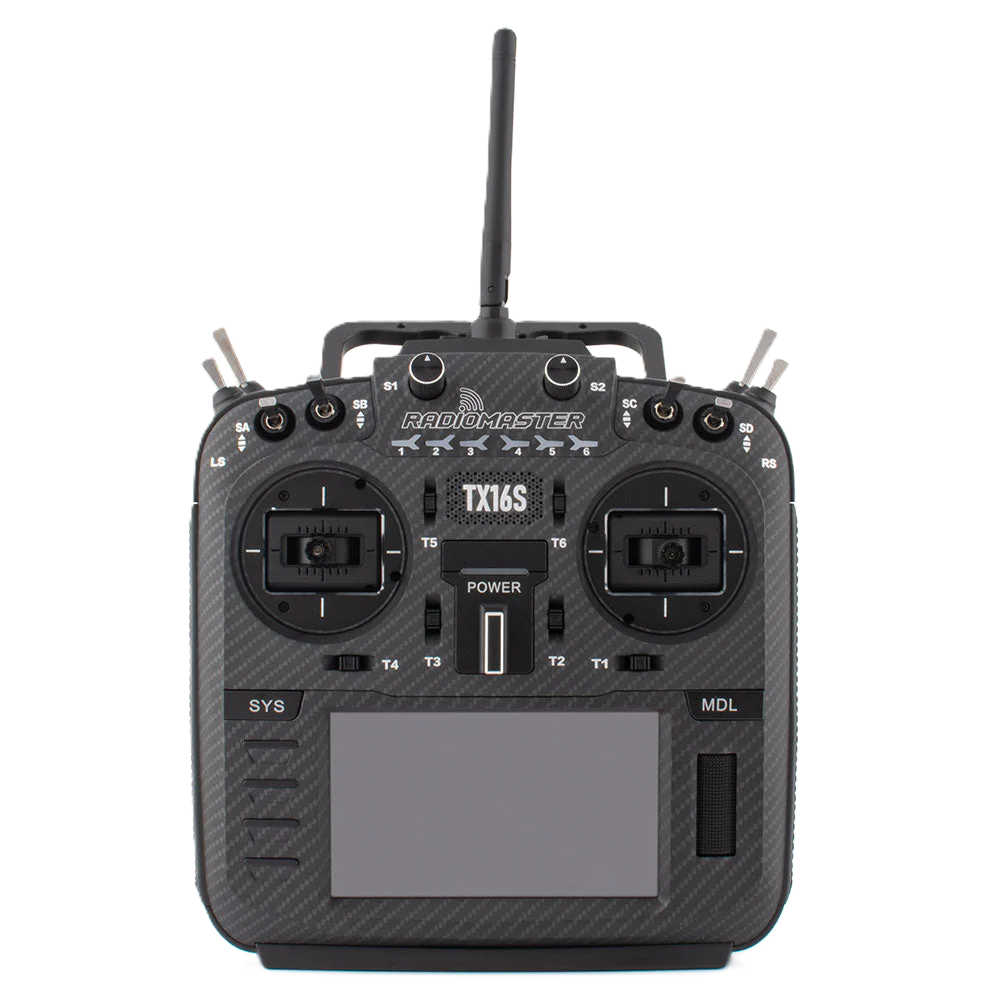

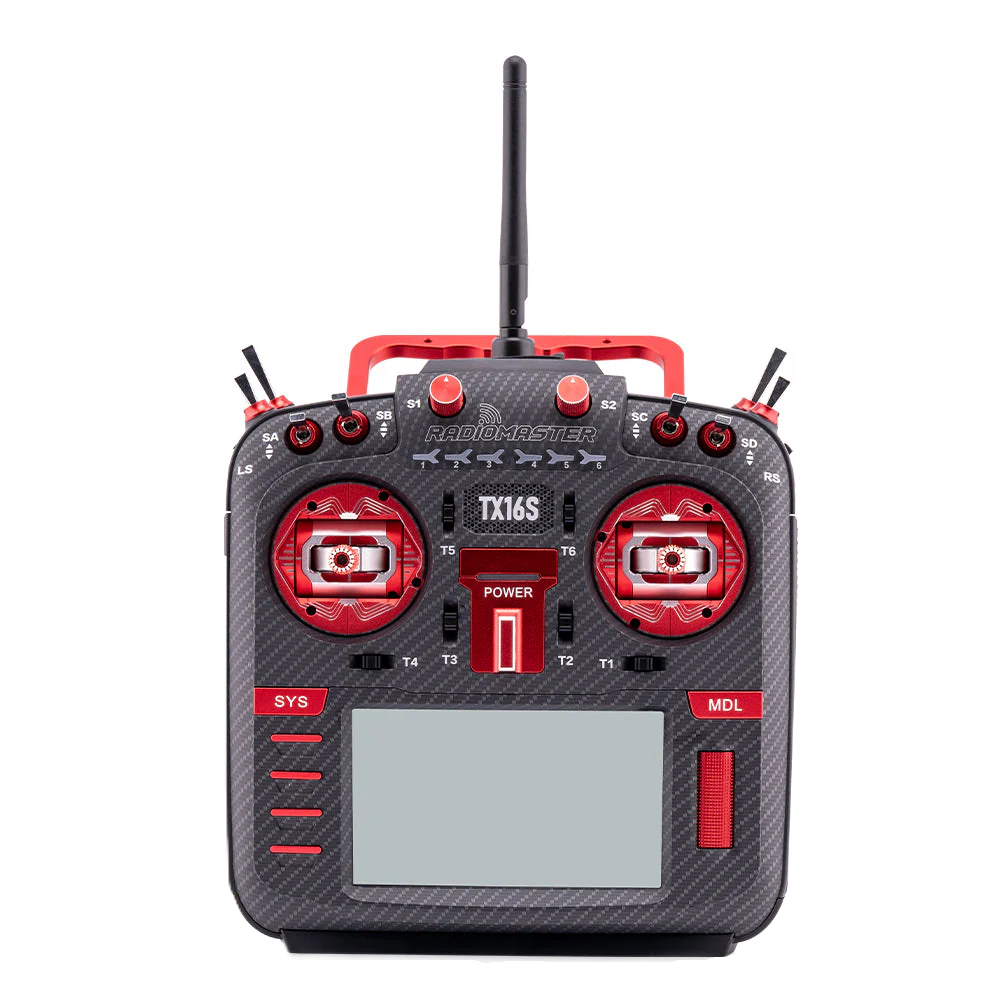

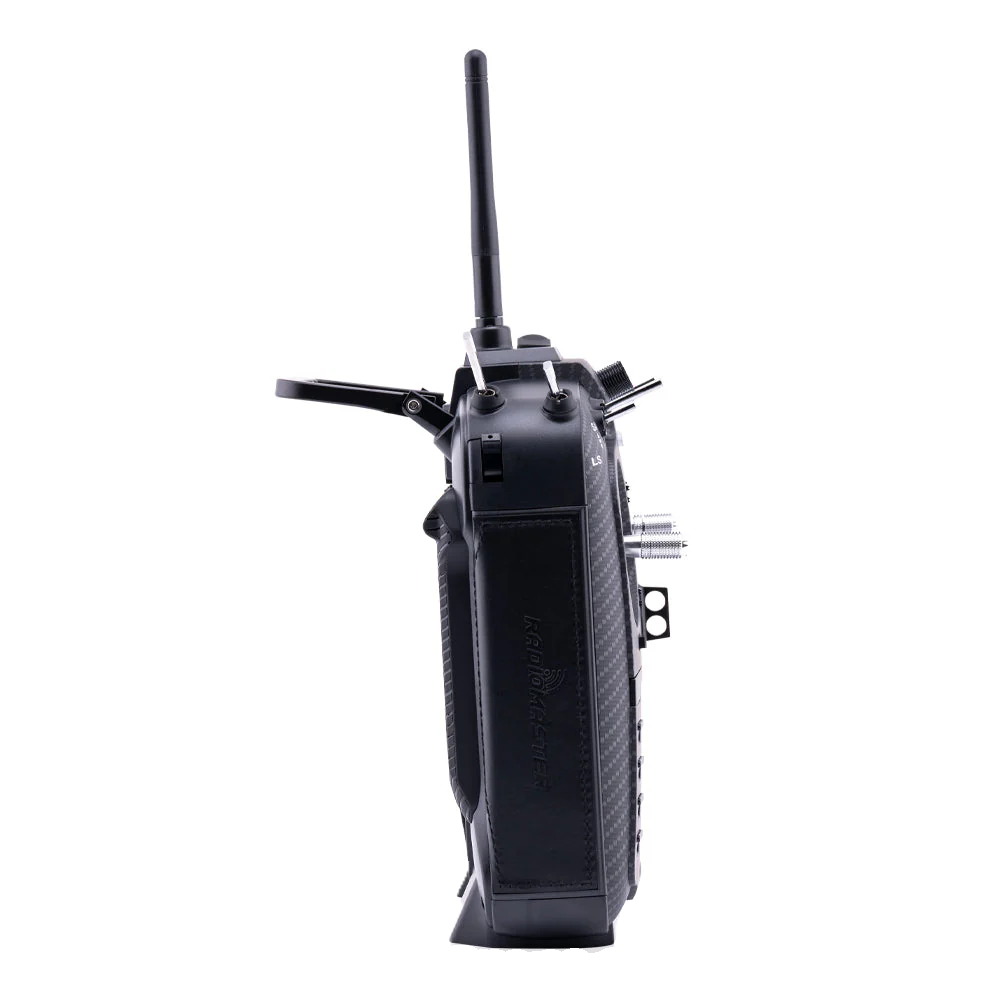

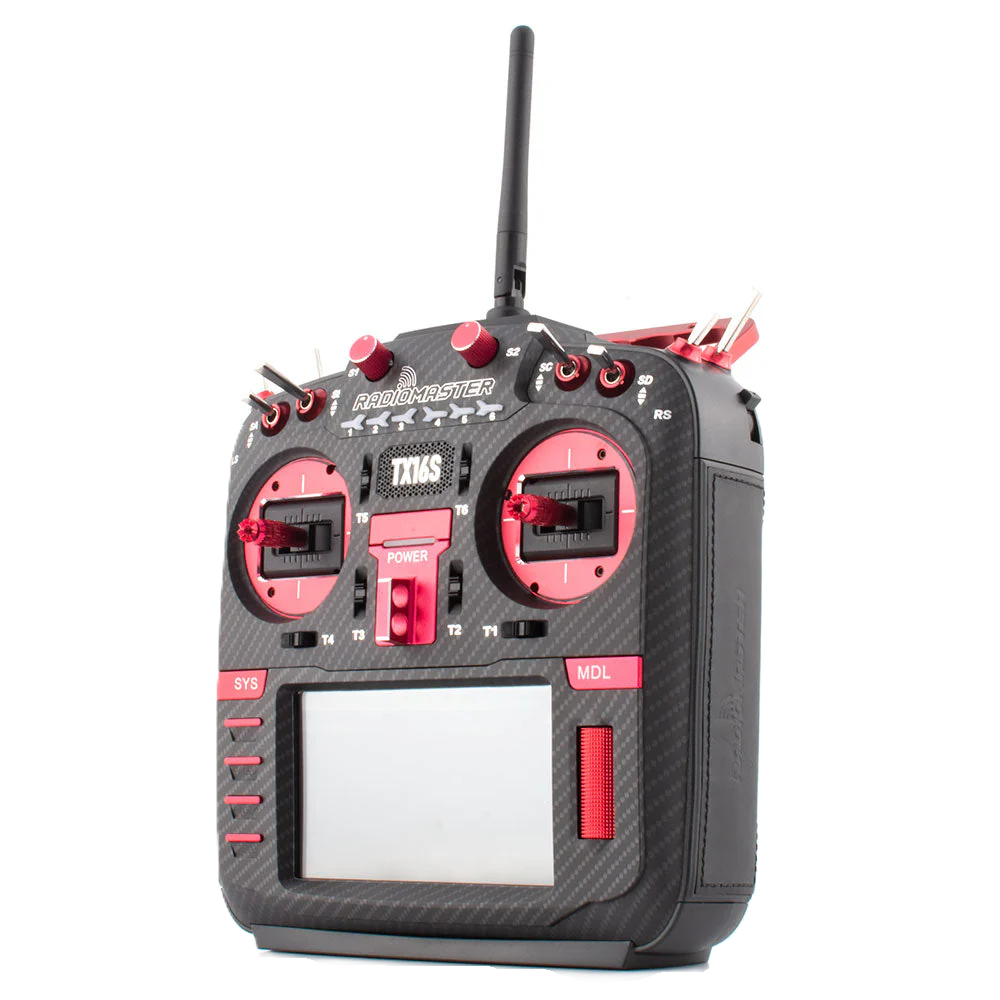

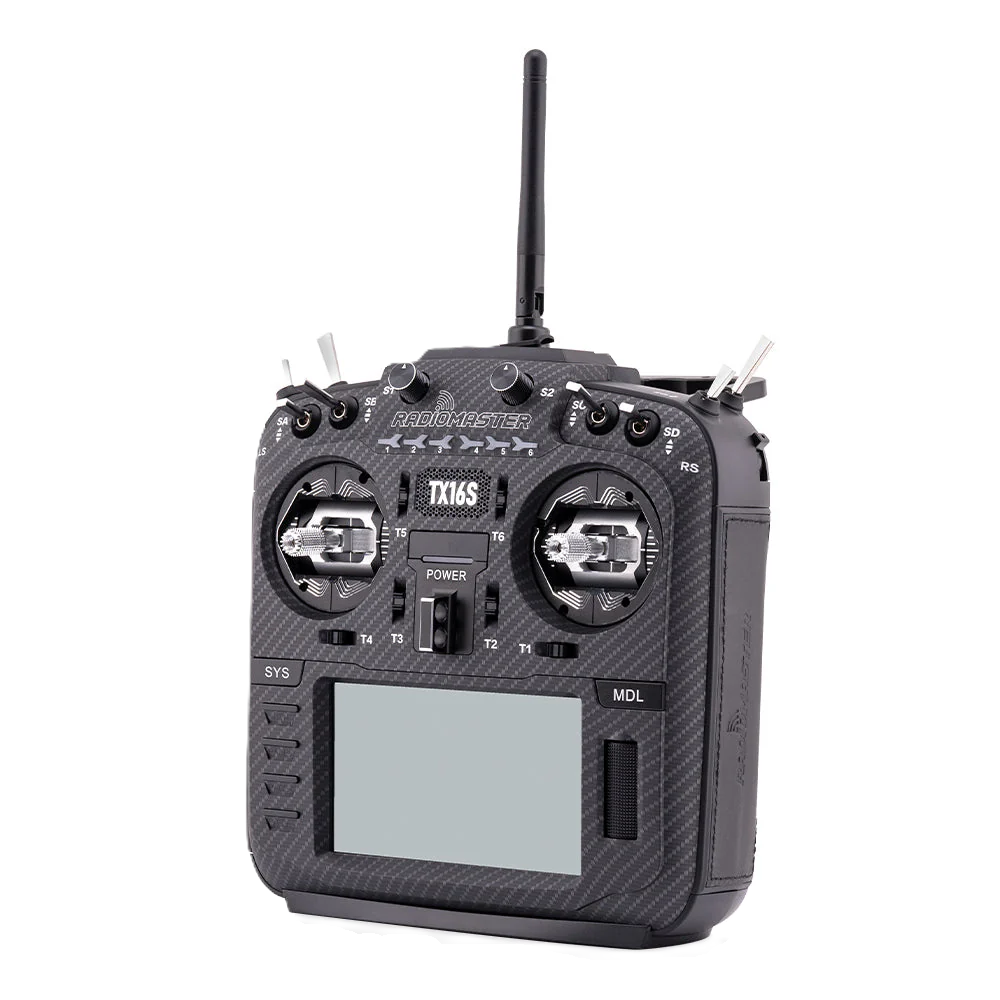

RADIOMASTER TX16S Mark II Max Radio Controller (M2) Transmitter
Non-returnable
₹43,149.00 - ₹65,699.00
The Radiomaster TX16S Mark II Max is a powerful and versatile radio controller, perfect for RC enthusiasts. Featuring a bright 4.3-inch color touchscreen, upgraded V4.0 Hall gimbals or AG01 CNC gimbals, and multi-protocol support (including ELRS), it offers precise control and extensive customization for drones, airplanes, cars, and boats. Its ergonomic design ensures comfortable, long-duration use.
Type
Colour
GIMBAL
Product Details
Features:
- Improved internal circuitry and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.
- Rear-mounted audio jack provided headphone output.
- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
- Optional high/low rear grips are included for improved ergonomics.
- Improved S1/S2 knobs with clear center detents.
- Improved LS/RS Sliders with smoother feel and better center detents.

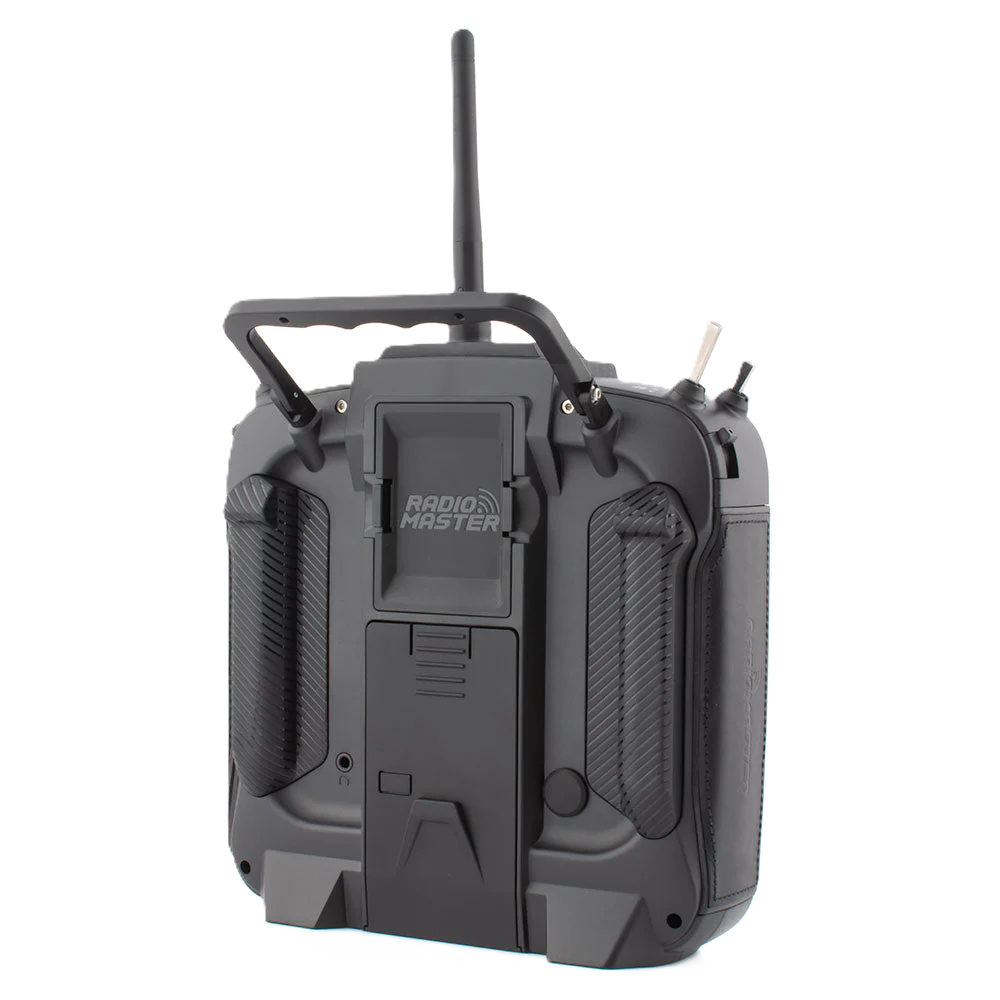

- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalized mods.
- Improved internal plastics for better longevity.
- Built-in ExpressLRS Backpack and 4in1 versions.
Technical Details:
- Items: TX16S Mark II Max
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz
- Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
- SD card: 256MB by default, 8GB maximum
- Antenna gain: 2db (transmit power adjustable)
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Radio firmware: EdgeTX
- Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on the receiver)
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
Additional Details:
- Manufacturer: Radiomaster
- Brand: Radiomaster
- Generic Name: Radio Transmitter, RC Controller, Remote Control Unit
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: RC enthusiasts, FPV drone pilots, RC airplane hobbyists, RC helicopter pilots, RC car and boat operators, advanced hobbyists seeking customizable and long-range control.
Package Details:
- Includes: 1 x RADIOMASTER TX16S Mark II Max Radio Controller (M2) Transmitter
Frequently Asked Questions:
Q1: What is the difference between the 4-in-1 and ELRS versions?
Ans: The 4-in-1 version supports a wide range of older protocols (like FrSky, Spektrum, FlySky), while the ELRS version offers high-performance, low-latency communication specifically with ExpressLRS receivers, ideal for modern FPV drones.
Q2: Can I use my existing batteries with the TX16S Mark II Max?
Ans: Yes, the TX16S Mark II Max is designed to be compatible with 2 x 18650 batteries (using the included tray) or a 2S LiPo battery that fits the battery compartment.
Q3: Does this radio controller come with OpenTX or EdgeTX firmware?
Ans: The TX16S Mark II Max typically comes pre-installed with EdgeTX firmware, with touch screen functionality enabled. It also supports OpenTX firmware for those who prefer it.
