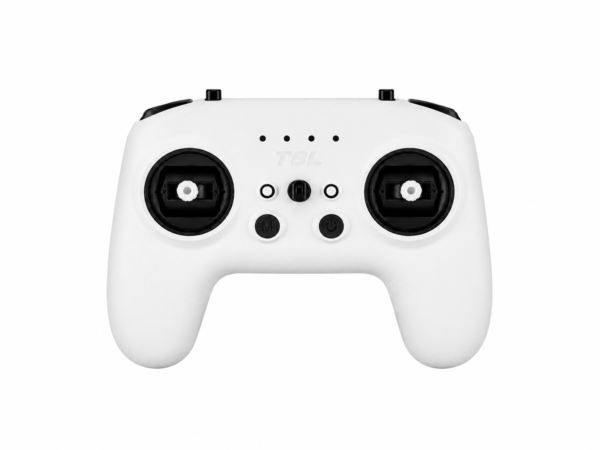

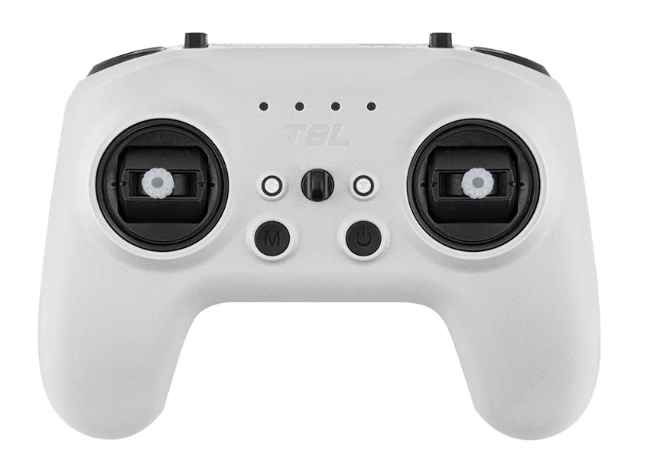

RADIOMASTER T8L Radio Controller (M2, ELRS, White)

The RadioMaster T8L Radio Controller is designed for pilots who value simplicity, portability, and reliable performance. Stripped of bulky screens and complex operating systems, this radio offers a pure flying experience backed by the industry-leading low latency of the ExpressLRS protocol.

Built-In ExpressLRS 2.4GHz

The T8L features a fully integrated 2.4GHz ELRS RF module, delivering exceptional range, ultra-low latency, and robust signal penetration. A dedicated single-button press allows for rapid binding to any standard ExpressLRS receiver on the market.

Screenless Web UI Configuration

Instead of navigating menus on a tiny screen, the T8L utilizes a powerful, built-in HTML Web UI. Simply plug the radio into your PC or Mac via USB-C, open Chrome or Edge, and configure everything directly from your browser. You can calibrate sticks, remap channels, adjust TX power, and update firmware instantly—no third-party apps required.

Precision Hall-Effect Gimbals

Despite its compact size and affordable price point, the T8L does not compromise on control. It is equipped with X5 quad-bearing Hall-effect nano gimbals, ensuring buttery smooth, highly precise stick inputs that will not degrade or drift over time like traditional potentiometer gimbals.

Seamless Simulator Integration

The T8L functions as a plug-and-play USB joystick for your PC. Connect it via the included USB-C cable to instantly fly in popular FPV simulators like Liftoff, Velocidrone, and Uncrashed without needing to install specialized drivers.

Technical Specifications

• Frequency: 2.400GHz - 2.480GHz
• RF Module: Built-in 2.4GHz ExpressLRS (SX1281)
• Transmission Power: Adjustable from 10mW up to 100mW (Max 20dBm)
• Gimbals: X5 Hall-effect, quad ball-bearing nano gimbals
• Channels: Up to 10 channels (depending on receiver configuration)

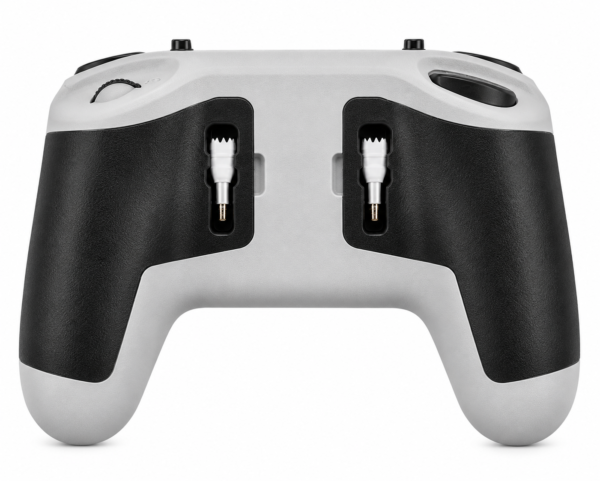

• Battery Configuration: 2x 3.7v 18650 Li-Ion batteries (Not Included)
• Charging: Built-in USB-C internal charging
• Weight: 204g (without batteries)

Frequently Asked Questions (FAQs)

Q1: Does the RadioMaster T8L have a screen for changing settings?

Ans: No, the T8L is a screenless radio. You configure all settings—including channel mapping, switch behavior, and firmware updates—by plugging it into a computer via USB-C and using the intuitive RadioMaster Web UI in your internet browser.

Q2: What does "Mode 2" mean?

Ans: Mode 2 is the global standard layout for drone pilots. It means the throttle (up/down) and yaw (left/right rotation) are controlled by the left stick, while pitch (forward/backward) and roll (left/right tilt) are controlled by the right stick.

Q3: Can I use this radio to fly in FPV simulators?

Ans: Yes. The T8L is fully simulator compatible. Just connect it to your PC or Mac using the provided USB-C cable, and it will be recognized automatically as a standard USB joystick controller.

Q4: Are the 18650 batteries included in the box?

Ans: No, the 3.7v 18650 Li-Ion batteries required to power the radio are sold separately. You will need two standard 18650 cells to operate the controller.
