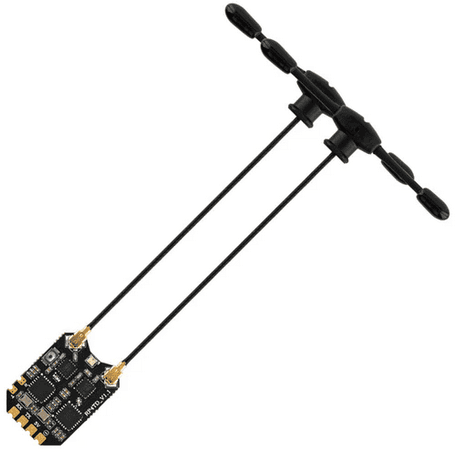

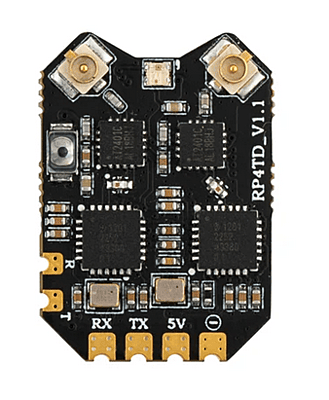

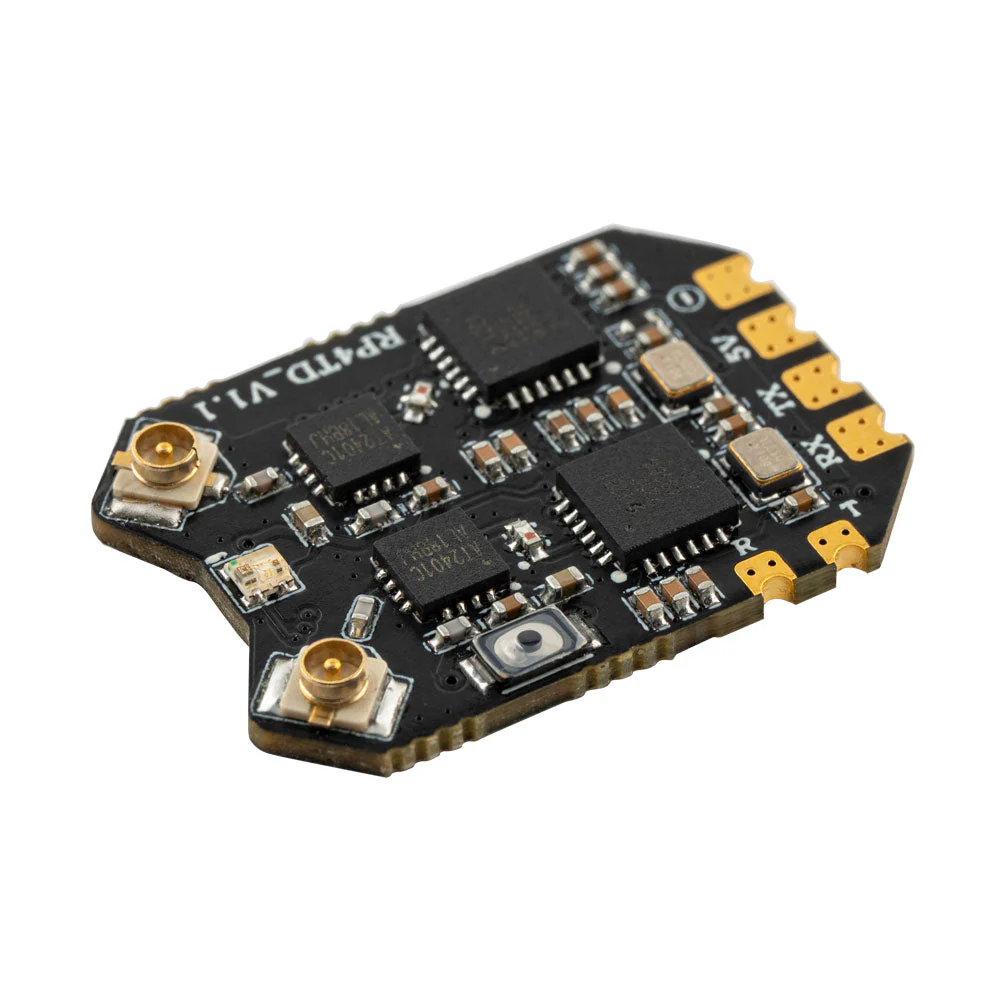

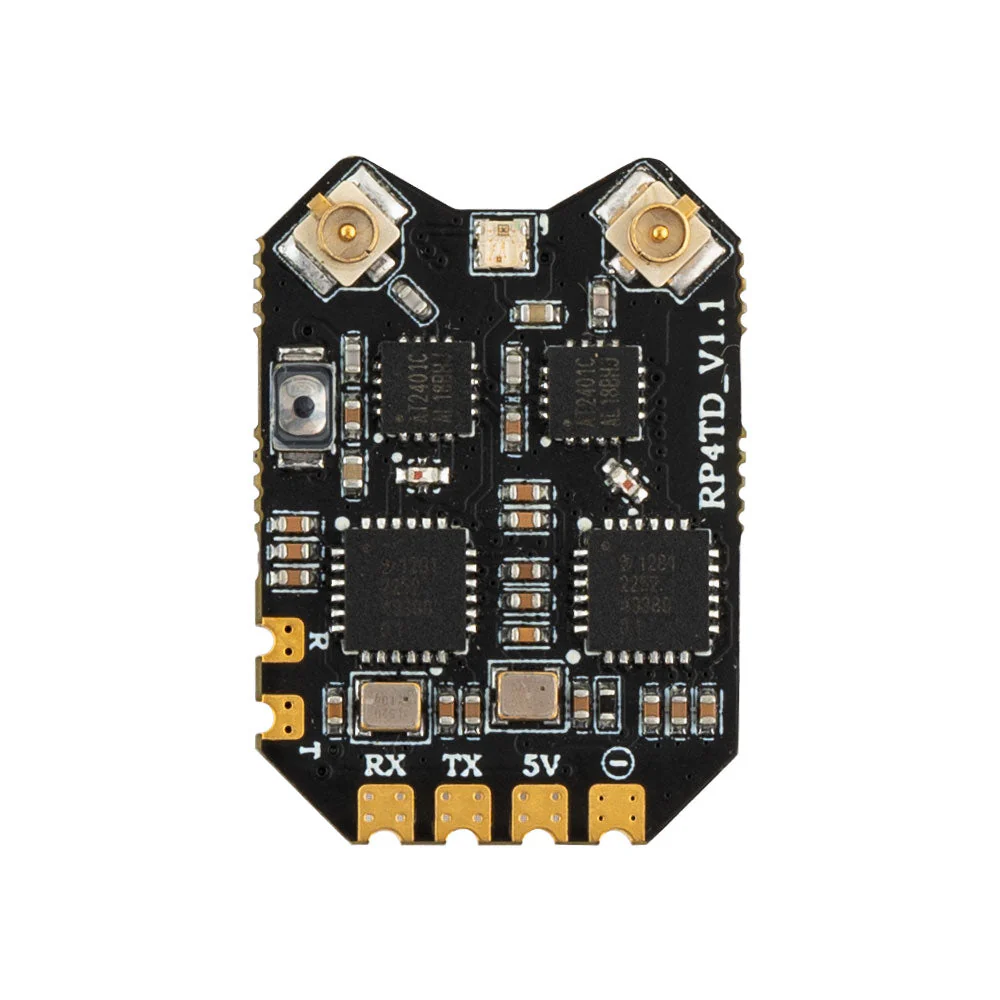

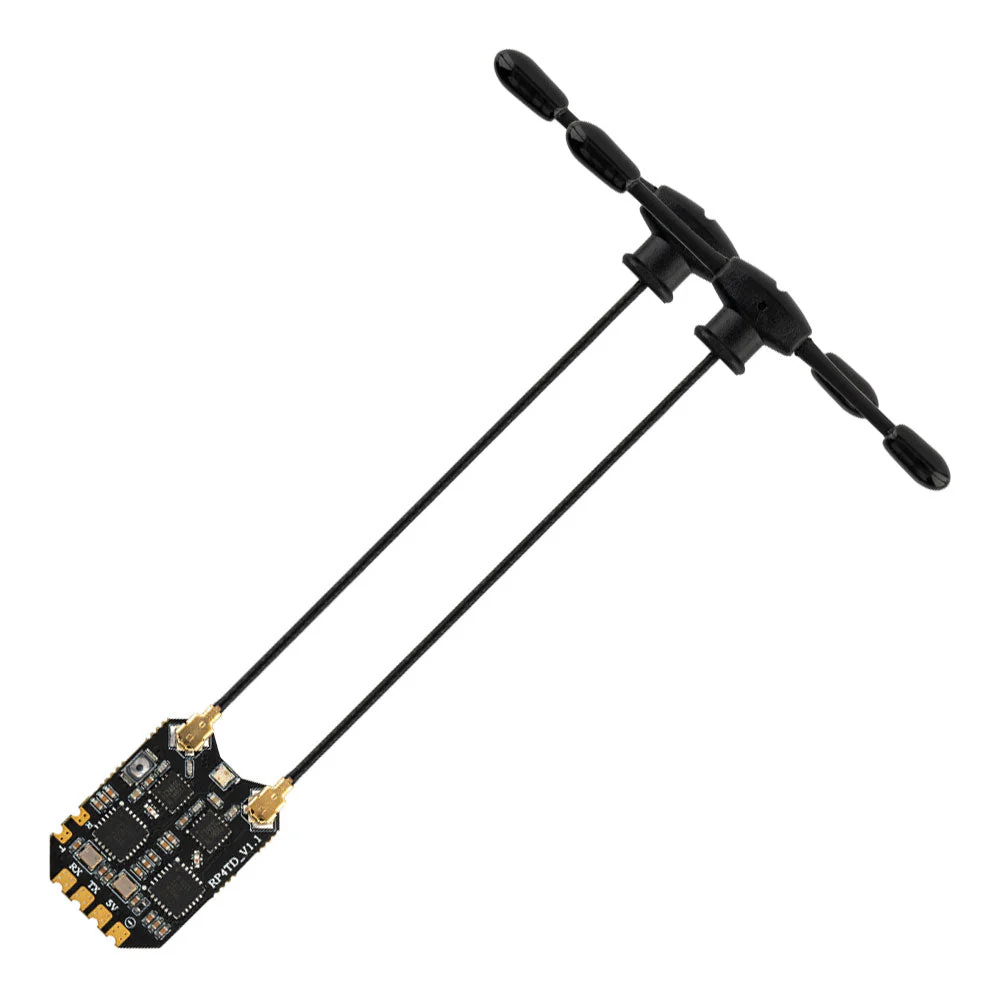

RADIOMASTER RP4TD ExpressLRS 2.4ghz Nano Module
Non-returnable
₹2,619.00
Out of stock
The RADIOMASTER RP4TD is a compact and high-performance ExpressLRS 2.4GHz true diversity nano receiver. Featuring dual SX1281 RF chips and dual TCXO, it offers exceptional signal sensitivity, low latency, and superior reliability for precise control of RC drones and fixed-wing models. Its built-in WiFi allows for convenient wireless firmware updates.
Product Details
Features:
- Gemini mode compatible
- Reliable DCDC Power supply circuit
- Class leading SNR and RSSI performance
- Optimized PCB design for better heat dissipation
- Upgraded antenna with greater durability and performance
- UART pads for extended applications
- Dual TCXO (temperature compensated crystal oscillator)
- 2x 100mw RF Telemetry power output
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Technical Details:
- Item: RP4TD ExpressLRS 2.4GHz Diversity Receiver
- Type: ISM

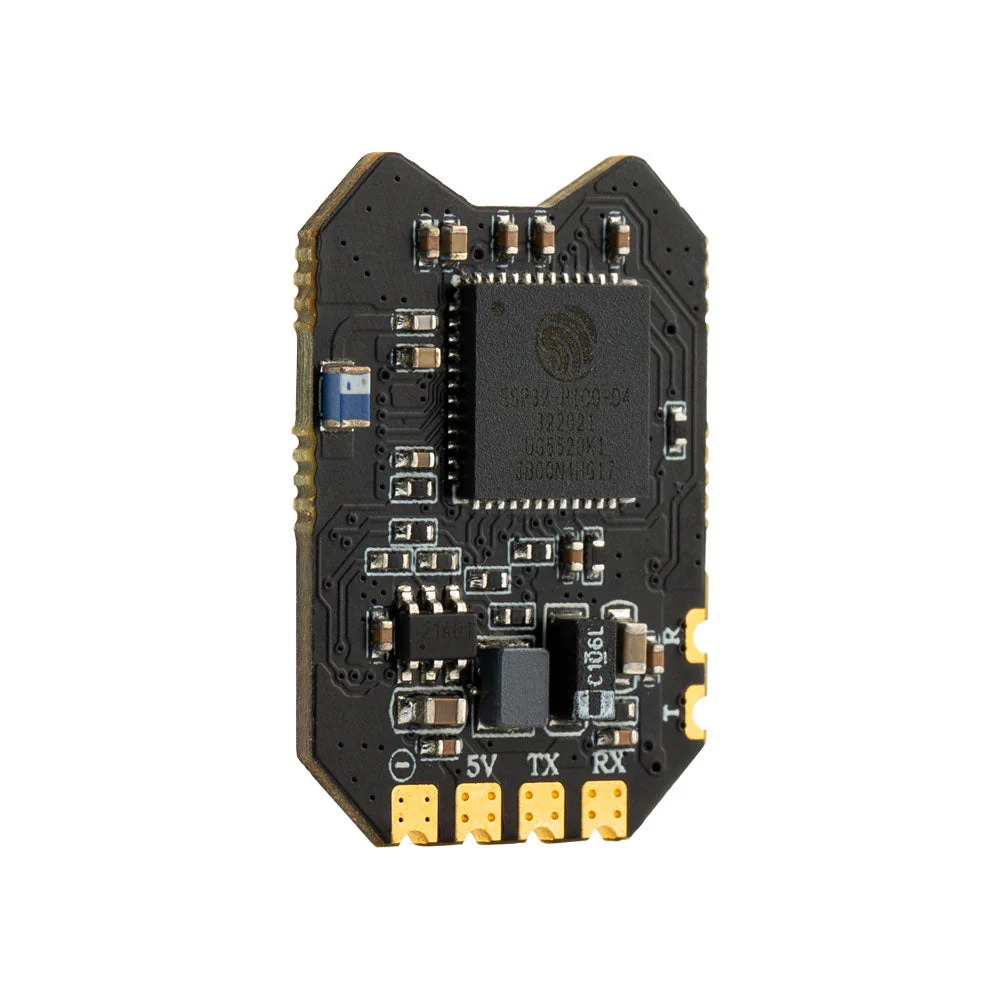

- MCU: ESP32
- RF Chip: SX1281 x 2
- Antenna: 65mm 2.4GHz T Antenna x 2
- Frequency Range: 2.4GHz
- Maximum Refresh Rate: 500Hz / F1000Hz
- Telemetry RF Power: Max 2x 100mW
- Working Voltage: DC 4.5-12.0V
- Weight: 1.4g (without antenna)
- Dimension: 23.7*16.3*4.0mm
- Firmware Version: ExpressLRS V3.3.0 pre-installed
- FW Target: RadioMaster RP4TD 2400 RX
- Bus interface: CRSF
- Extend interface: UART
Additional Detail:
- Manufacturer: RadioMaster
- Brand: RadioMaster
- Generic Name: RC Receiver, ExpressLRS Receiver, Drone Receiver, Radio Control Module, Diversity Receiver
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Drones, RC Airplanes, RC Helicopters, Robotics, Long-Range RC applications.
Package Details:

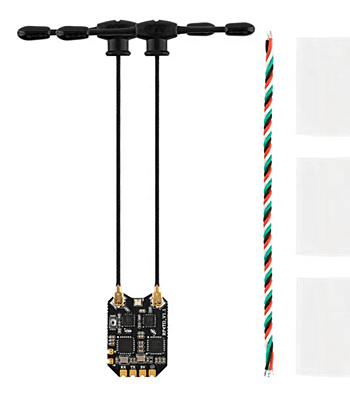

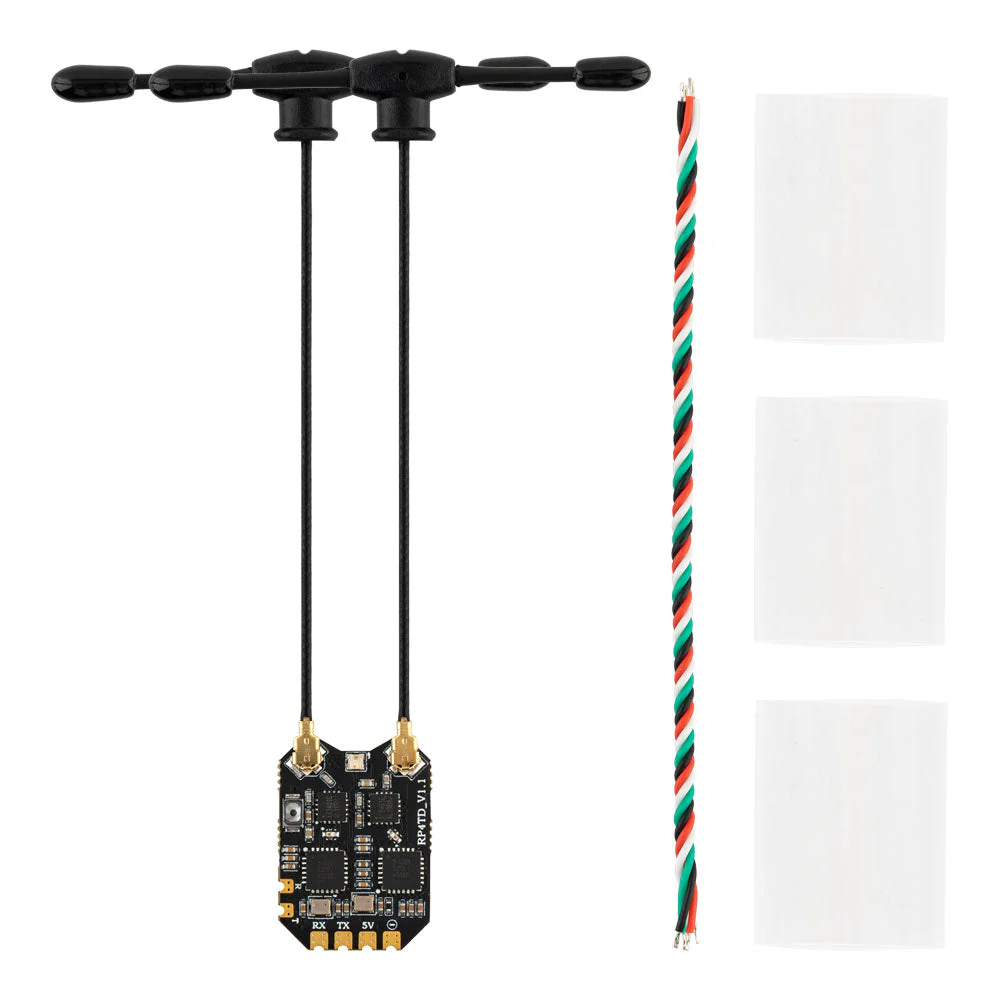

- includes: 1 x RADIOMASTER RP4TD ExpressLRS 2.4ghz Nano Module
Frequently Asked Questions:
Q1: How do I update the firmware on the RP4TD module?
Ans: The RP4TD features built-in WiFi, allowing for convenient wireless firmware updates via a web UI on your PC or mobile phone. You can also update via UART or passthrough.
Q2: What are the advantages of "True Diversity" and "Dual TCXO" in this receiver?
Ans: True diversity, with dual RF chips and antennas, significantly improves signal reliability by picking the strongest signal. Dual TCXO (Temperature Compensated Crystal Oscillator) ensures exceptional frequency stability and accuracy, preventing signal drift due to temperature changes.
Q3: Is this receiver compatible with all ExpressLRS transmitters?
Ans: Yes, the RADIOMASTER RP4TD ExpressLRS 2.4GHz Nano Module is compatible with all 2.4GHz ExpressLRS modules and transmitters on the market.
