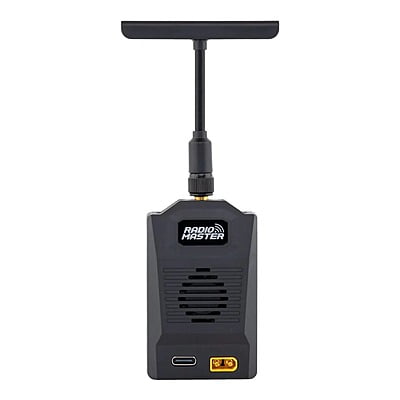

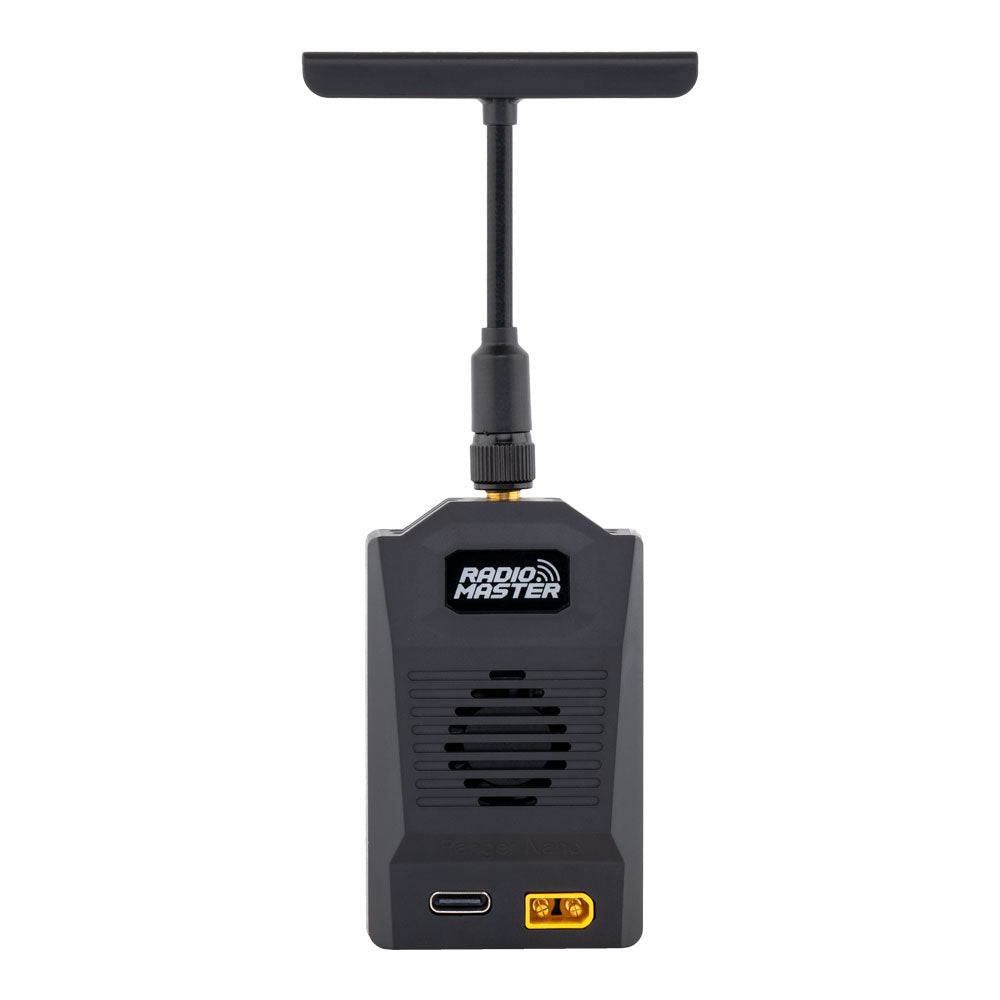

RADIOMASTER Ranger Nano 2.4GHZ ELRS RF Module
- Item: Ranger 2.4GHz ELRS Module
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- Frequency Range: 2400 MHz - 2480 MHz
Description:
The RadioMaster Ranger is the pinnacle of ExpressLRS module design. Built not only to look great but to last with its rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. The Ranger is up to any task and provides all the power and functionality you need.
Featuring an OLED display, a directional menu key, and two assignable shortcut keys the Ranger can be adjusted on the fly and personalized to your needs.
The Ranger includes a T Antenna for general use and a RadioMaster Moxon antenna for long-range directional applications. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios on the market today. A cable has also been included for use with Futaba radios that are CRSF capable.
Features:
- Built-in ExpressLRS Backpack
- OLED Display
- Rugged CNC Case
- Built-in Accelerometer
- Packet rates up to F-1000Hz
- Wifi and Bluetooth support
- High-efficiency cooling system
- 5 Direction Nav key and customizable shortcut buttons
- Micro and Nano adapters included
- Moxon and T-antenna included
- CRSF cable for compatible Futaba radios included
Specification:
- Item: Ranger 2.4GHz ELRS Module
- Regulatory Domain: ISM2400
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency Range: 2400 MHz - 2480 MHz
- Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
- Minimum receiver refresh rate: 25Hz
- RF Output Power: Default 100mW

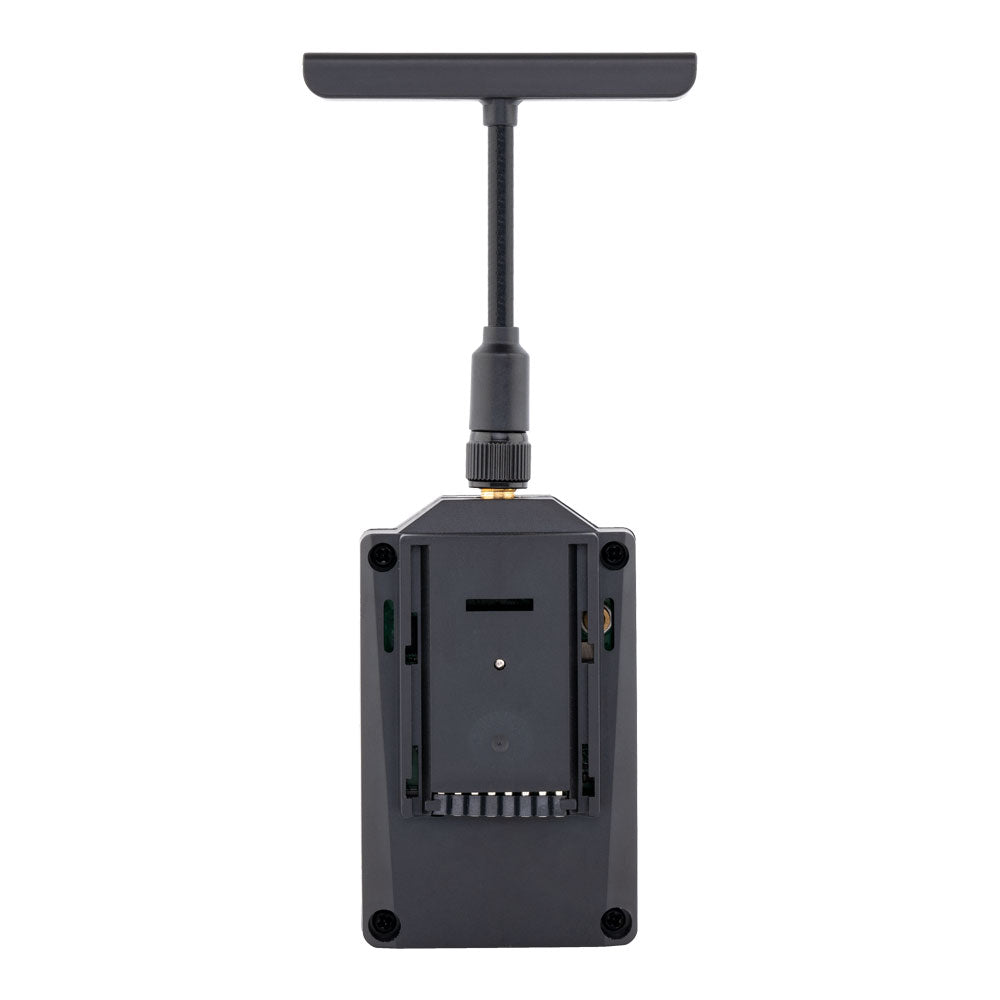

- Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
- Futaba CRSF socket cable: Included
- OLED screen: 64x128px
- Wifi Support: Yes
- Bluetooth support: Yes
- 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer)
- Built-in RGB light strip

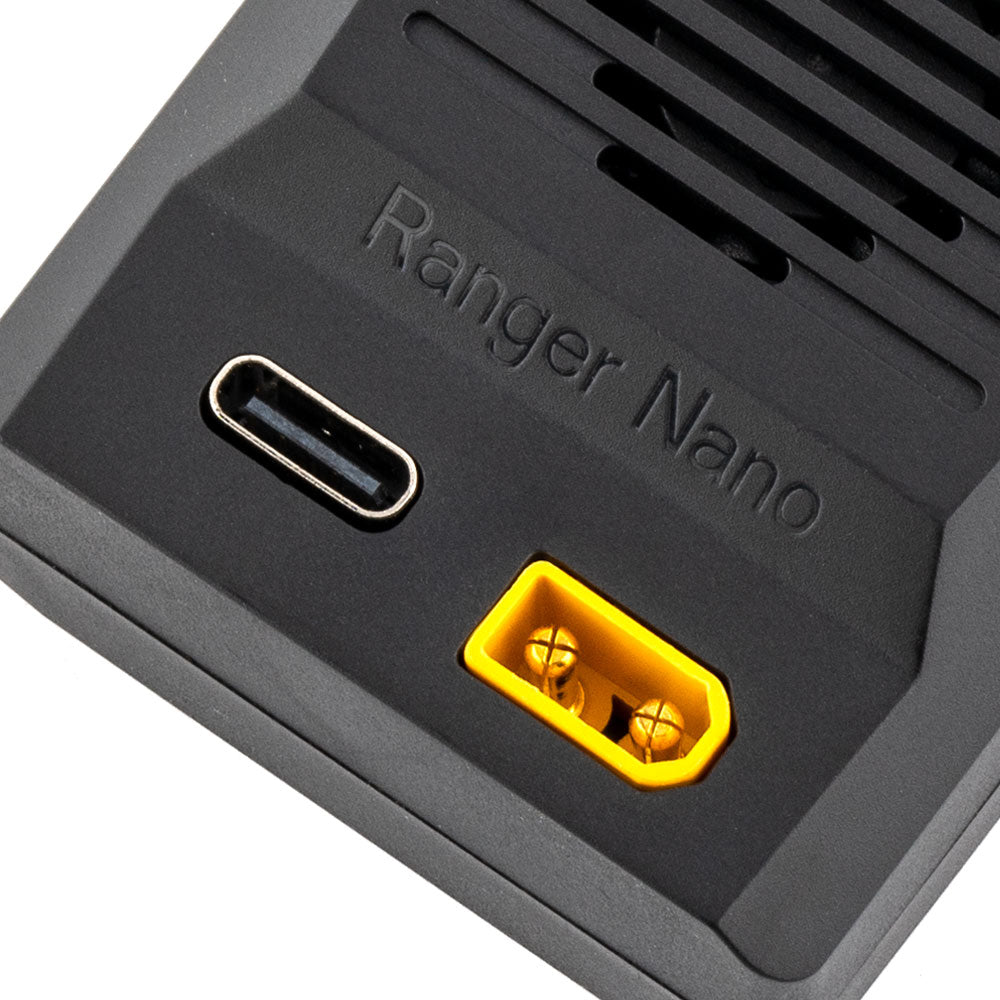

- XT30 Power supply voltage: DC 6V - 16.8V
- Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna)
- Dimension: 95*51*25mm (without antenna)
Package Includes:
- 1 * RANGER Module
- 1 * Futaba CRSF socket cable
- 1 * JR Adapter
- 1 * Nano Adapter
- 1 * T Antenna
- 1 * Moxon Antenna
- 1 * Hexagon socket screwdriver
- 3 * M2*5 Screws
- 1 * Assembly Manual
