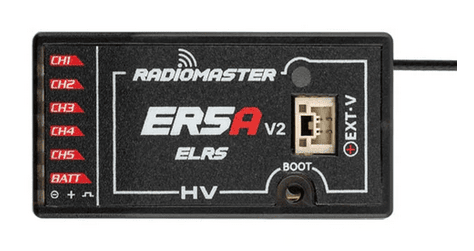

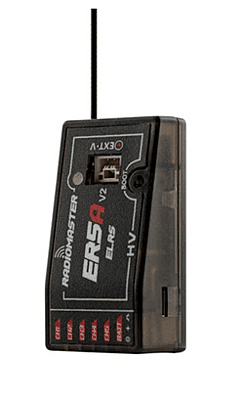

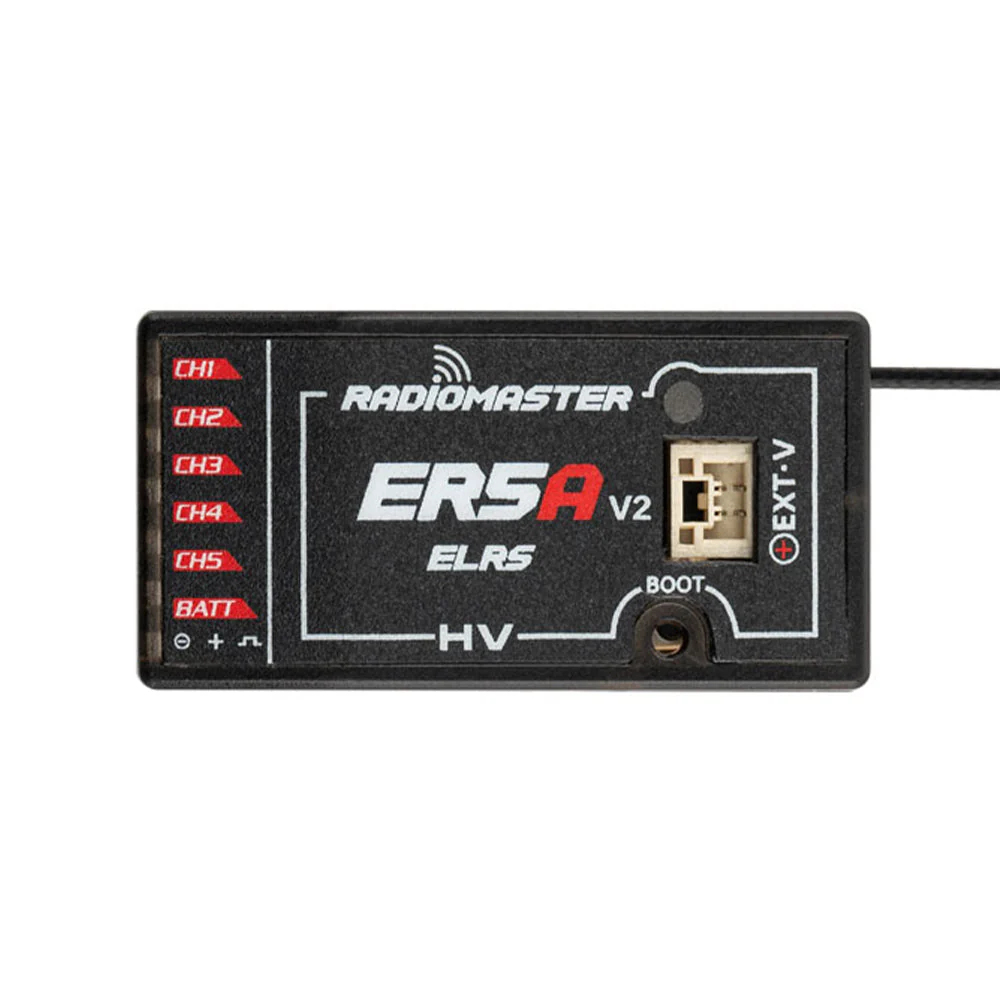

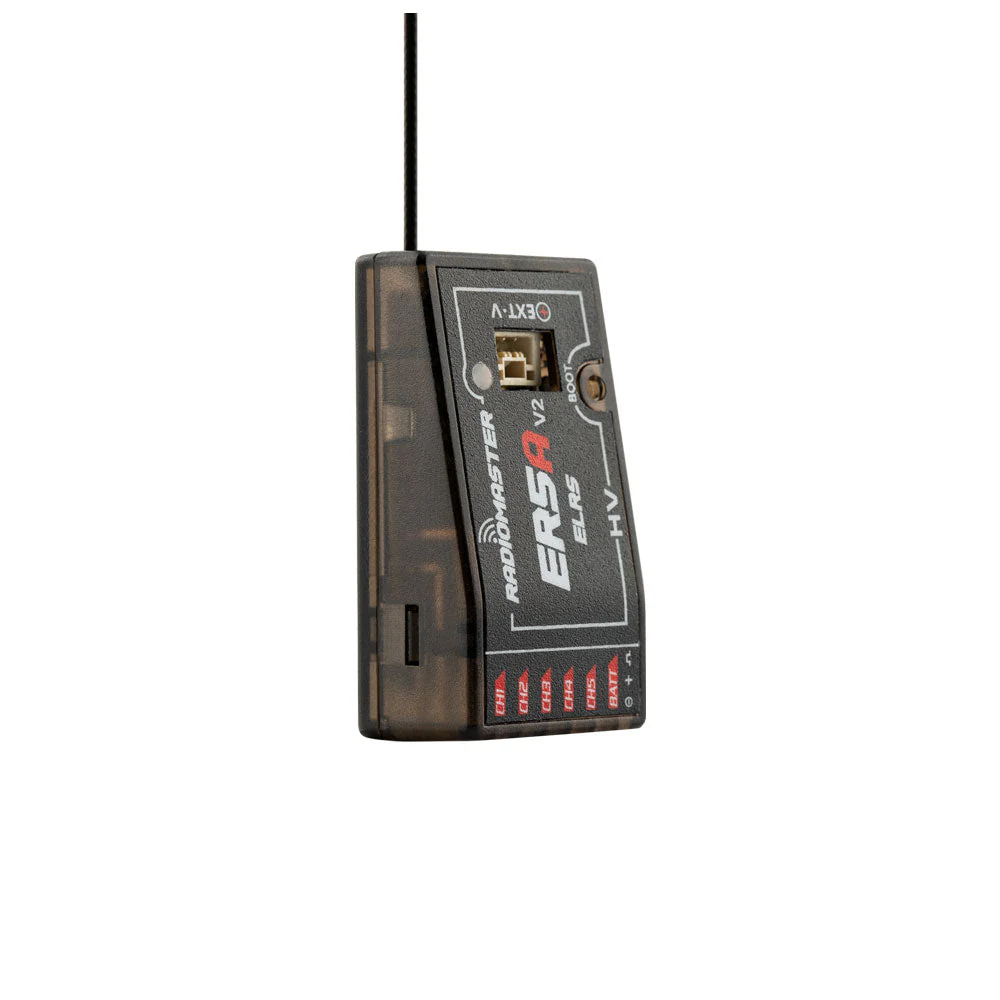

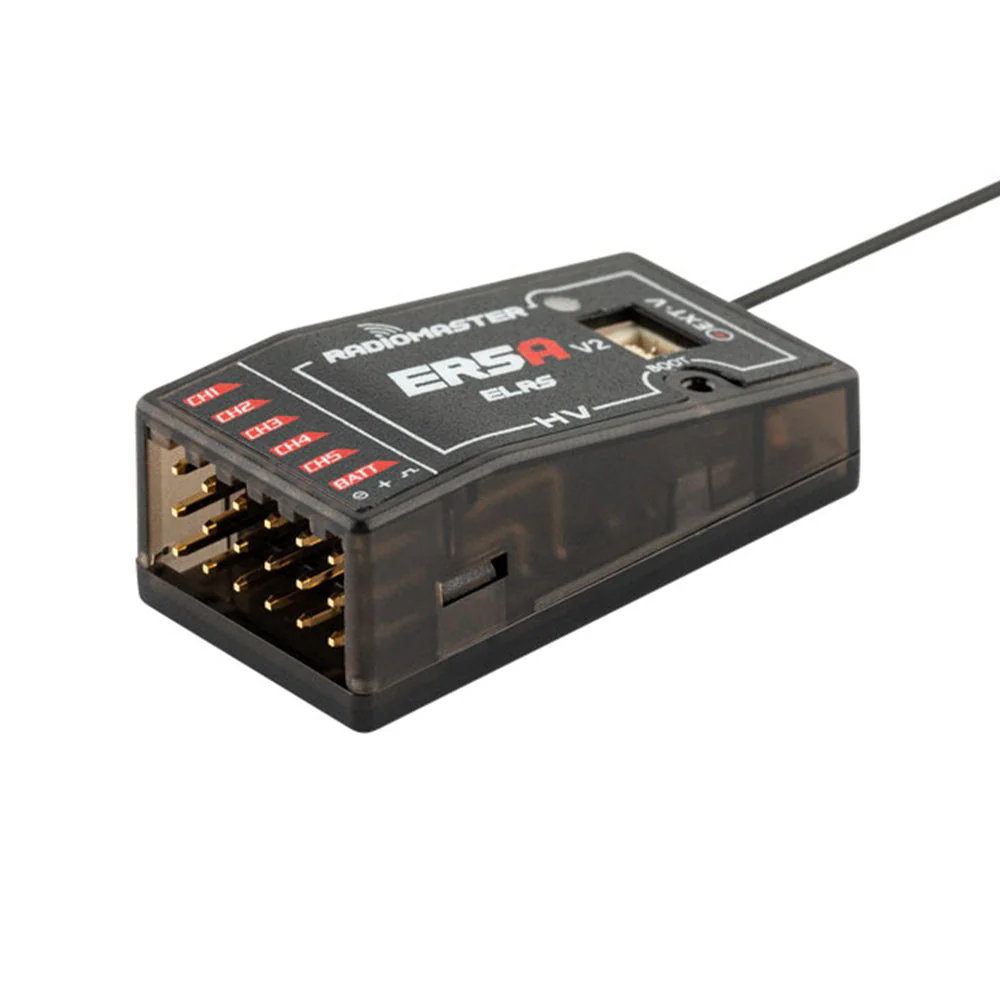

RADIOMASTER ER5A-V2 ExpressLRS Module
Non-returnable
₹2,219.00
Out of stock
The RadioMaster ER5A-V2 ExpressLRS Module is a compact and high-performance receiver designed for RC enthusiasts. Utilizing the robust ExpressLRS protocol, it offers exceptional range, low latency, and reliable connectivity for various RC applications. Ideal for drones, planes, and cars, this module ensures precise control and a stable link, enhancing your RC flying and driving experience with its advanced features and compact design.
Product Details
Features:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 5 PWM Channels
- Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
- Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
- Optimized ground up PCB design
- Supports Wi-Fi updates and WEBUI configuration
- Compact size, easy to install. Perfect for aircraft applications
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Technical Details:
- Item: ER5A V2 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5-8.4V
- Antenna type: High-sensitivity antenna
- Wireless Protocol: ELRS 3.3.0 pre-installed
- Channels: 5
- Telemetry Voltage Detection Range: DC 4.0 - 35V
- RF Telemetry: Yes
- Telemetry Power: 10mw
- Weight: 6.7 grams
- Size: 37.0 * 19.3 * 13.0mm
- Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER5A 2.4GHz PWM RX
Additional Details:
- Manufacturer: RadioMaster
- Brand: RadioMaster
- Generic Name: RC Receiver, ExpressLRS Receiver, Radio Control Module, PWM Receiver
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: RC Drones, RC Airplanes, RC Cars, FPV Racing, Remote Control Vehicles, Model Aircraft, Robotics Projects
Package Details:
- includes: 1 x RADIOMASTER ER5A-V2 ExpressLRS Module
Frequently Asked Questions:
Q1:What is ExpressLRS?
Ans: ExpressLRS (ELRS) is an open-source radio control link project aiming to provide high performance, low latency, and long-range connectivity for RC models, widely adopted for its reliability and configurability.
Q2: Is this module compatible with all RC transmitters?
Ans: The ER5A-V2 is compatible with RC transmitters that support the ExpressLRS 2.4GHz protocol. Ensure your transmitter has an ELRS module or is capable of running ELRS firmware.
Q3: How do I update the firmware on the ER5A-V2?
Ans: The firmware can be updated wirelessly via Wi-Fi using the ExpressLRS configurator, or by connecting the module to a computer using a suitable adapter (e.g., an FTDI adapter).
