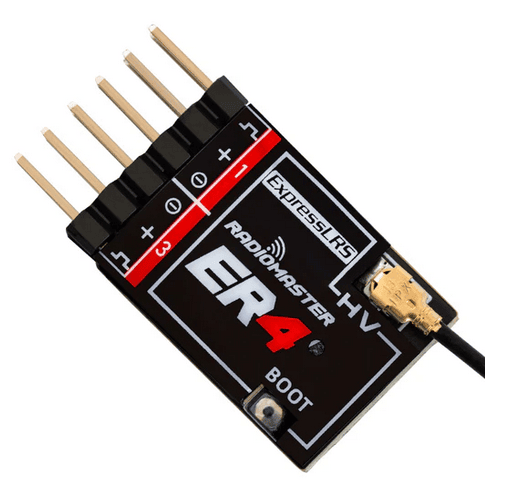

RADIOMASTER ER4 ExpressLRS Module
Non-returnable
₹1,519.00
Out of stock
The RadioMaster ER4 ExpressLRS Module is a compact and high-performance 4-channel PWM receiver, ideal for small RC models. Based on the revolutionary ExpressLRS system, it offers ultra-low latency, extended range, and reliable control. Features include built-in voltage telemetry and easy Wi-Fi updates for a seamless hobby experience.
Product Details
Features:
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 4 PWM Channel
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector

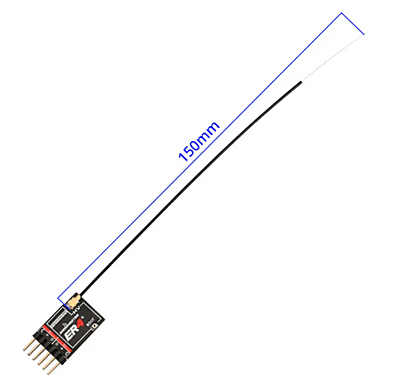

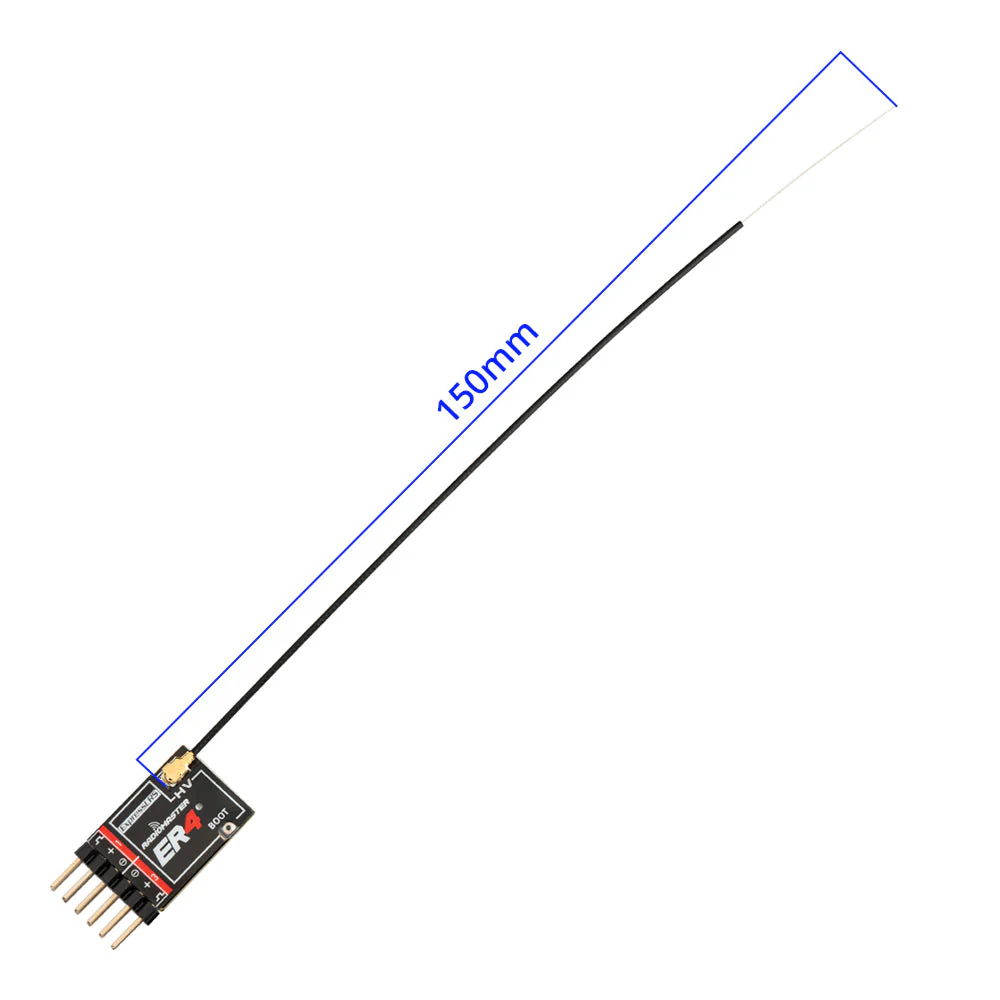

- Standard 15 cm High Sensitivity Antenna
- For small aircraft, boats and cars and more
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Technical details:
- Item: ER4 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5 - 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 4CH PWM
- Serial Output: CRSF / Sbus
- Telemetry power: 10mw
- Battery voltage detection range: DC 4.0- 35V
- Weight: 3.0 grams

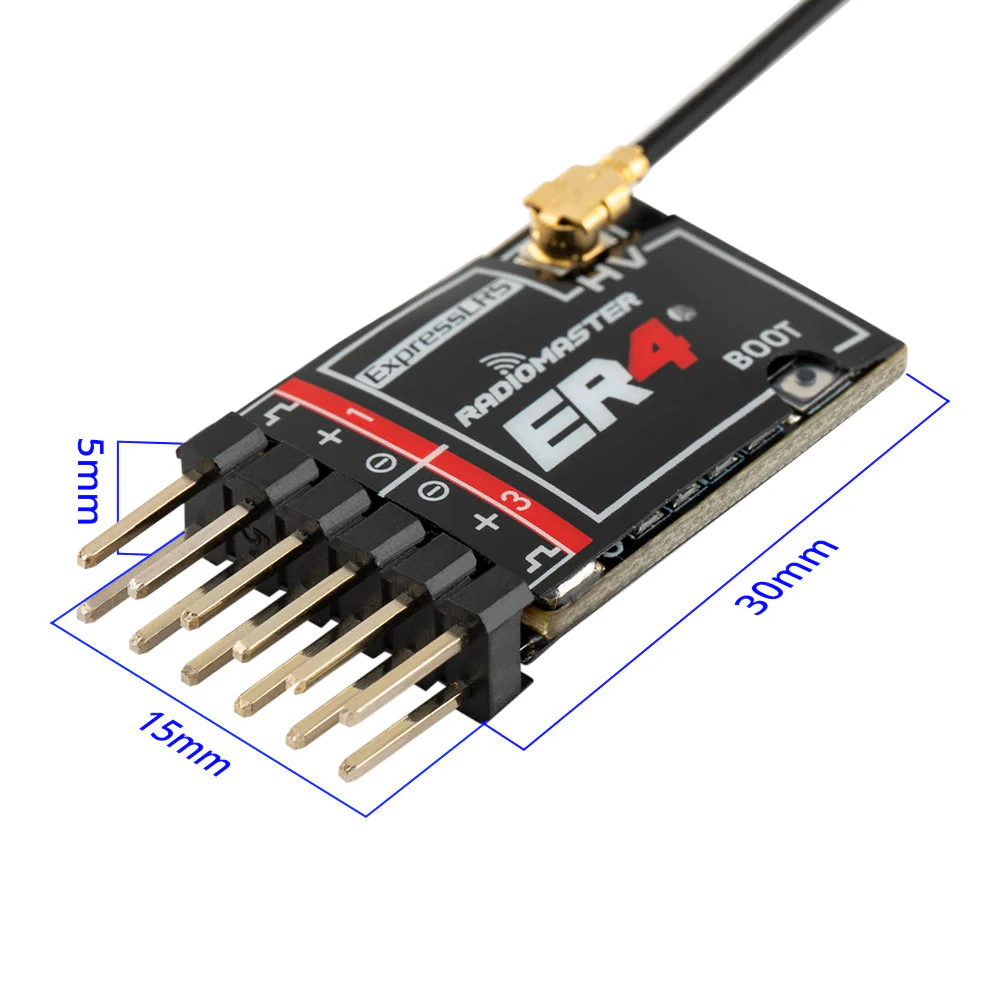

- Dimensions: 30*15*5mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER4 2.4GHz PWM RX
Additional detail:
- Manufacturer: RADIOMASTER
- Brand: RADIOMASTER
- Generic Name: RC Receiver, ExpressLRS Receiver, PWM Receiver, Radio Control Module
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Small RC aircraft, model boats, RC cars, fixed-wing aircraft, and other small-scale remote-controlled vehicles.
Package Details :
- includes: 1 x RADIOMASTER ER4 ExpressLRS Module
Frequently Asked Questions:
Q1: What is ExpressLRS and why is it beneficial?
Ans: ExpressLRS is an open-source radio control link known for its ultra-low latency, long range, and high reliability, offering superior control performance for RC models.
Q2: How do I bind the RADIOMASTER ER4 ExpressLRS Module to my transmitter?
Ans: Upon first power-up, the ER4 enters bind mode (double LED blink). You can then use your ExpressLRS compatible radio's LUA script to bind. Alternatively, power cycle the receiver three times to enter bind mode, or hold the boot button for 10 seconds to reset it to bind mode.
Q3: Can I update the firmware on the ER4 module, and how?
Ans: Yes, the ER4 module supports Wi-Fi updates. You can connect to the receiver's Wi-Fi hotspot and access the WEBUI (10.0.0.1) in your browser to update firmware and configure settings.
