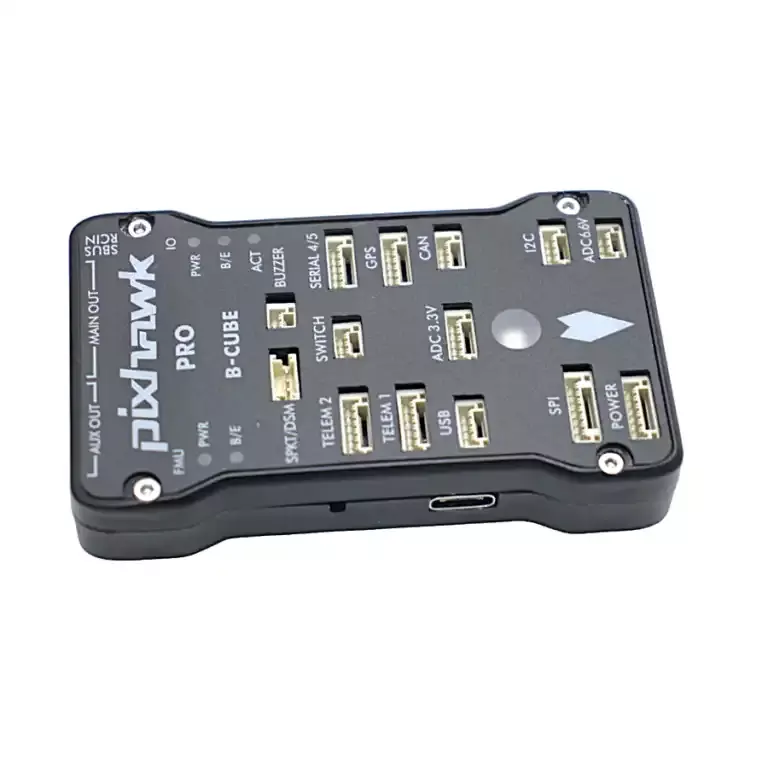

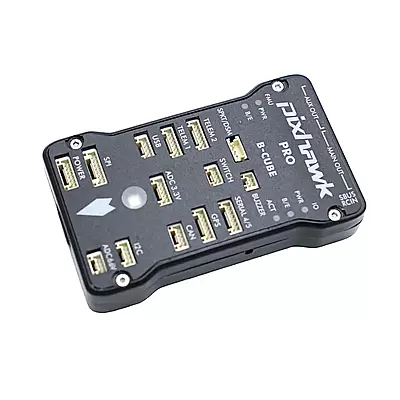

PIXHAWK 2.4.8 Drone Flight Controller PX4 32 Bit Autopilot
₹15,099.00
Out of stock
The PIXHAWK 2.4.8 Drone Flight Controller is a reliable 32-bit PX4 autopilot designed for multirotor, fixed-wing, VTOL, and rover applications. It offers precise flight control, advanced navigation, GPS compatibility, and support for ArduPilot and PX4 firmware, making it ideal for professional and DIY drone projects.
Choose Quantity
Product Details
Features:
- The advanced 32-bit ARM CortexM4 high-performance processors; can run NuttX RTOS real-time operating system.
- 14 PWM / servo output.
- Bus interface (UART, I2C, SPI, CAN).
- The integrated backup power and backup controller fails; the primary controller fails over to the backup control is safe. Provide automatic and manual modes.
- Provide redundant power input and failover.
- Multicolor LED lights.
- Provide a multi-tone buzzer Interface.
- Micro SD card to record flight data.
Specifications:
Processor:
- 32bit STM32F427 Cortex M4 core with FPU.
- 32-bit STM32F103 failsafe co-processor.
- 168 MHz.
- 128 KB RAM.
- 2 MB Flash.
Sensors:
- ST Micro L3GD20H 16 bit gyroscope.
- ST Micro X4HBA 303H 14-bit accelerometer/magnetometer.
- Invensense MPU 6000 3-axis accelerometer/gyroscope.
- MEAS MS5607 barometer.
Interfaces:
- 5x UART (serial ports), one high-power capable, 2x with HW flow control.
- 2x CAN (one with an internal 3.3V transceiver, one on expansion connector).
- Spektrum DSM / DSM2 / DSM-X® Satellite compatible input.
- Futaba S.BUS® compatible input and output.
- PPM sum signal input.
- RSSI (PWM or voltage) input.
- I2C.
- SPI.
- 3.3 and 6.6V ADC inputs.
- Internal micro USB port and external micro USB port extension.

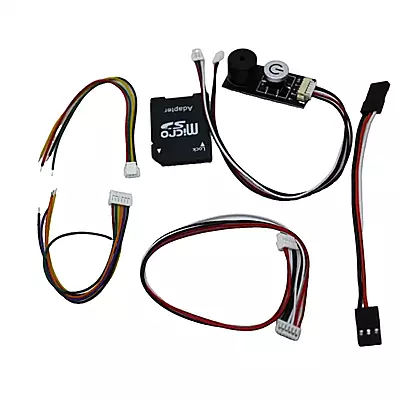

Package Includes:
- 1 x Pixhawk 2.4.8 32 Bit Autopilot PX4 Drone Flight Controller.
- 3 x Connecting Cables.
- 1 x Beep And Safety v1.2
- 1 x SD Adapter
