PALADIN-FLIGHT CONTROLLER

Features:

• Powerful STM32F722 processor.

• Integrated Betaflight OSD.

• Built-in Blackbox for data logging.

• Supports various ESC protocols.

• Multiple UARTs for peripherals.

• Robust power filtering.

• Dedicated I2C for external compass.

• User-friendly solder pads.

• Enhances flight responsiveness.

• Ideal for racing and freestyle builds.

Technical Specifications:

• Model: Paladin Flight Controller

• Main Control Chip: STM32F722RET6

• IMU (Gyro/Accelerometer): ICM42688P or similar (verify exact sensor)

• OSD: Integrated Betaflight OSD

• Blackbox: 16MB Flash memory

• BEC Output: 5V/2A and 9V/2A

• Input Voltage: 3–6S LiPo (9V–25V)

• UARTs: 5–6 (e.g., UART1, UART2, UART3, UART4, UART6)

• ESC Telemetry Port: Yes

• I2C Support: Yes (for GPS/Magnetometer)

• LED Strip Support: Yes

• Buzzer Pad: Yes

• Target Firmware: Betaflight (e.g., SPEEDYBEEF7V3)

• Mounting Pattern: 30.5×30.5 mm (M3 holes)

• Dimensions: ~37×37 mm

• Weight: ~6–8 g

• USB Port: Type-C

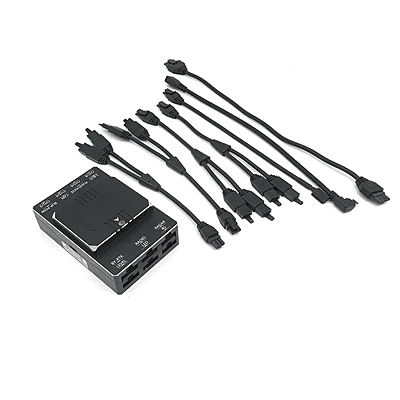

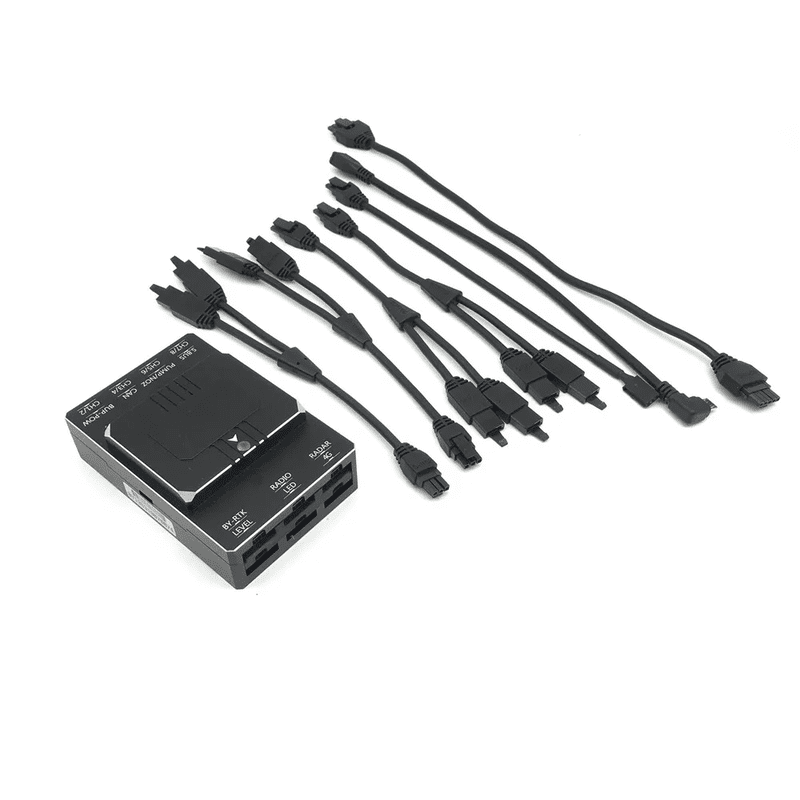

Main Controller Module

• Weight: 183 g (±3 g)

• Size: 10.0 cm × 6.5 cm × 3.3 cm (±0.1 cm)

• Working Voltage: 5.1 V (±5%)

• Maximum Power Consumption: 10 W (including peripherals)

• Interface: Molex 3.0 high reliability interface

• Working Temperature: -10 °C to 55 °C

• ESC Control Frequency: EXT-CH18, 50 Hz; MT-CH18, 400 Hz

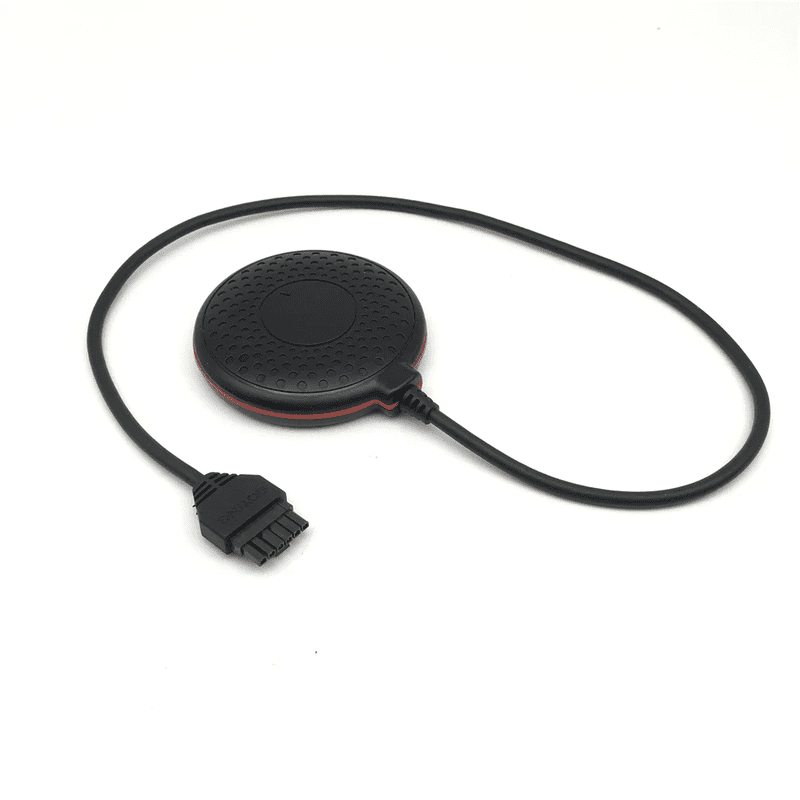

GPS Module

• Weight: 70 g

• Size: Φ7.09 cm × 1.41 cm (±1 cm)

• Input Line Length: 5.12 cm (±1 cm)

• Working Voltage: 5 V (±5%)

• Signal Line Interface: Molex 3.0 high reliability interface (6P)

LED Indicator

• Weight: 28 g (±2 g)

• Size: 2.9 cm × 2.5 cm × 1.4 cm (±0.1 cm)

• Working Voltage: 5 V (±5%)

• Signal Line Length: 51 cm (±1 cm)

• Signal Line Interface: Molex 3.0 high reliability interface (4P)

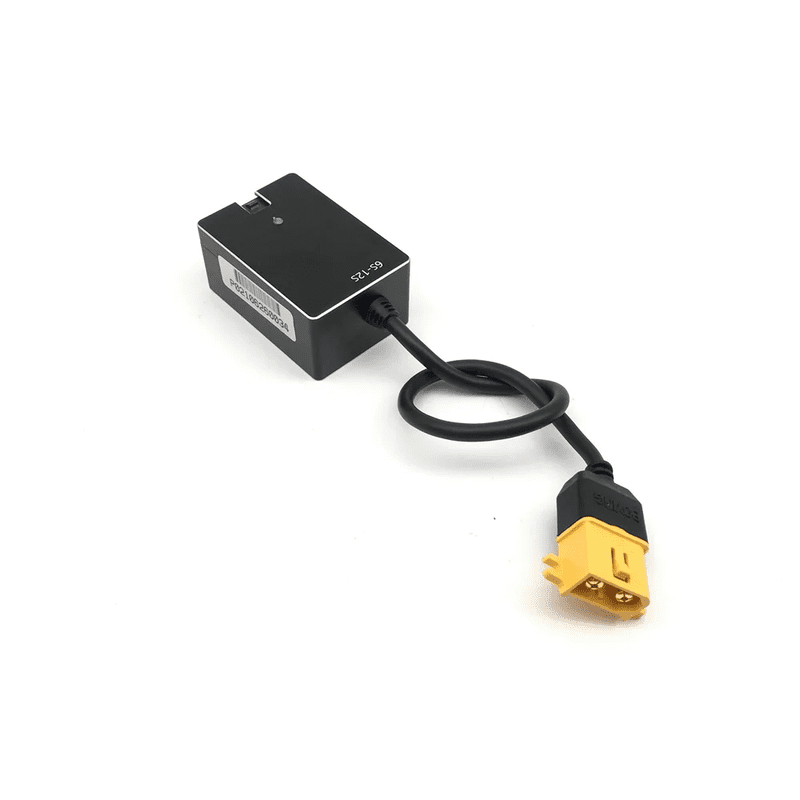

Power Management Module

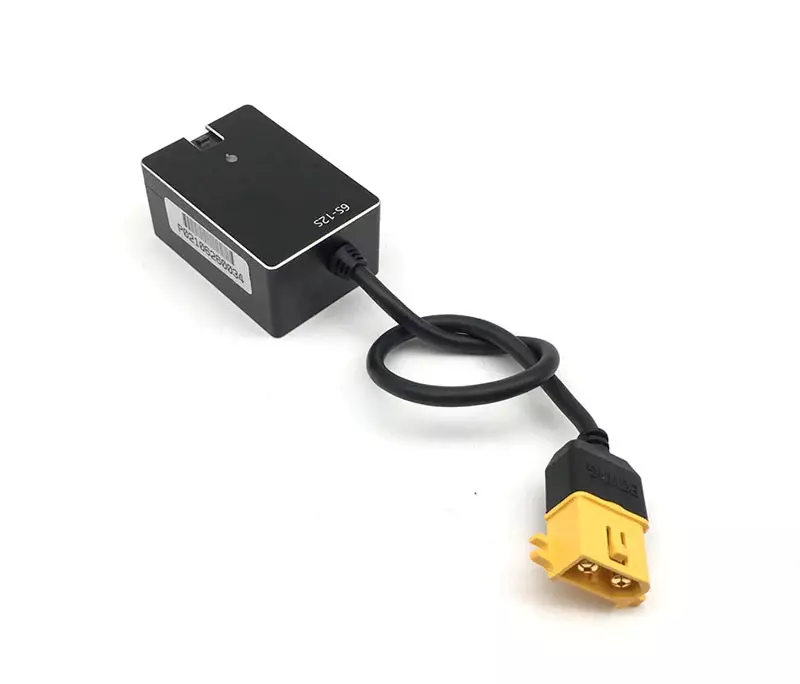

• Weight: 61 g (±2 g)

• Size: 4.6 cm × 3.2 cm × 2.2 cm (±0.1 cm)

• Input Voltage: 6S–12S (24 V–48 V)

• Output Voltage: 5.2 V

• Input Interface: XT60 male

• Input Line Length: 20 cm (±1 cm)

• Output Interface: Molex 3.0 high reliability interface (5P)

• Working Temperature: -10 °C to 55 °C

Additional Details:

• Manufacturer: SpeedyBee

• Brand: PALADIN

• Generic Name: Flight Controller || FPV Flight Controller || F7 Flight Controller || Drone Controller || Quadcopter Controller || FC Board || Drone Electronics || FPV Brain || Multirotor Controller || FPV Board

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV Racing Drones || Freestyle FPV Drones || Long Range FPV Drones || Cinematic FPV Drones || Custom FPV Drone Builds || Competitive FPV Pilots || Advanced FPV Enthusiasts || Drone Builders || Electronics Upgrade || High-Performance FPV

Package Details:

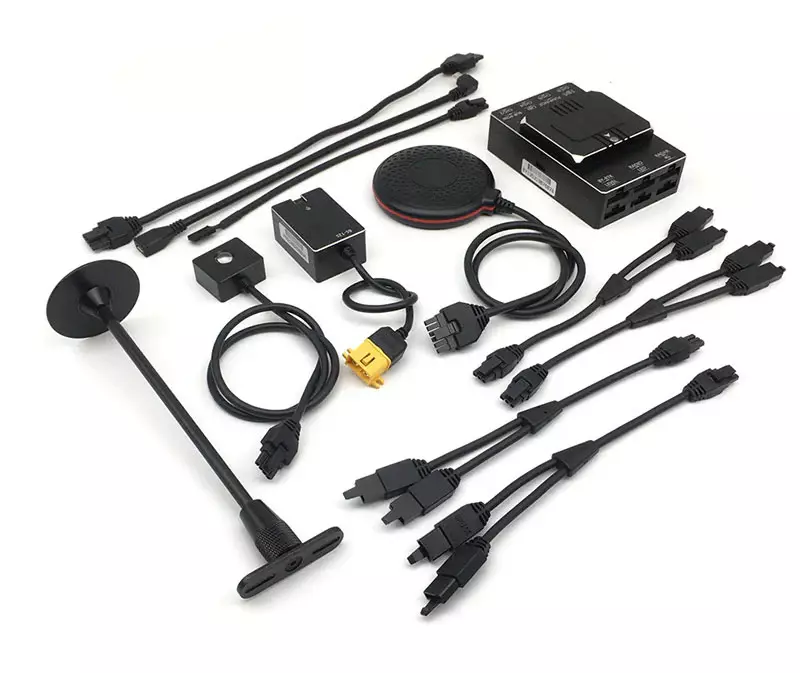

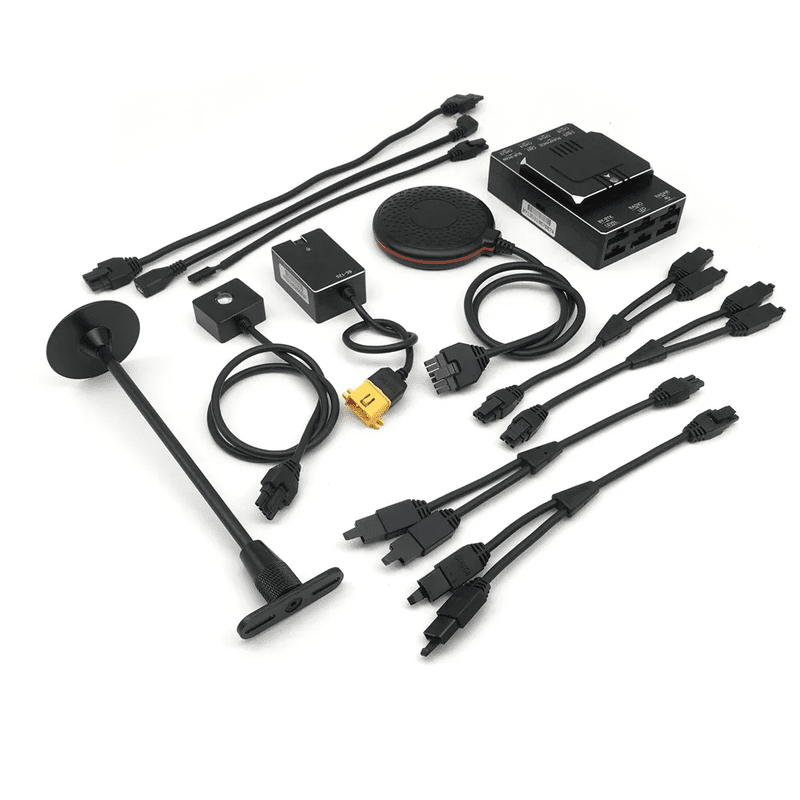

Includes:

• 1x Paladin Flight Controller

• Main Controller Module x 1

• GPS Module x 1

• LED x1

• Power Module x 1

• Cable bag x 1
