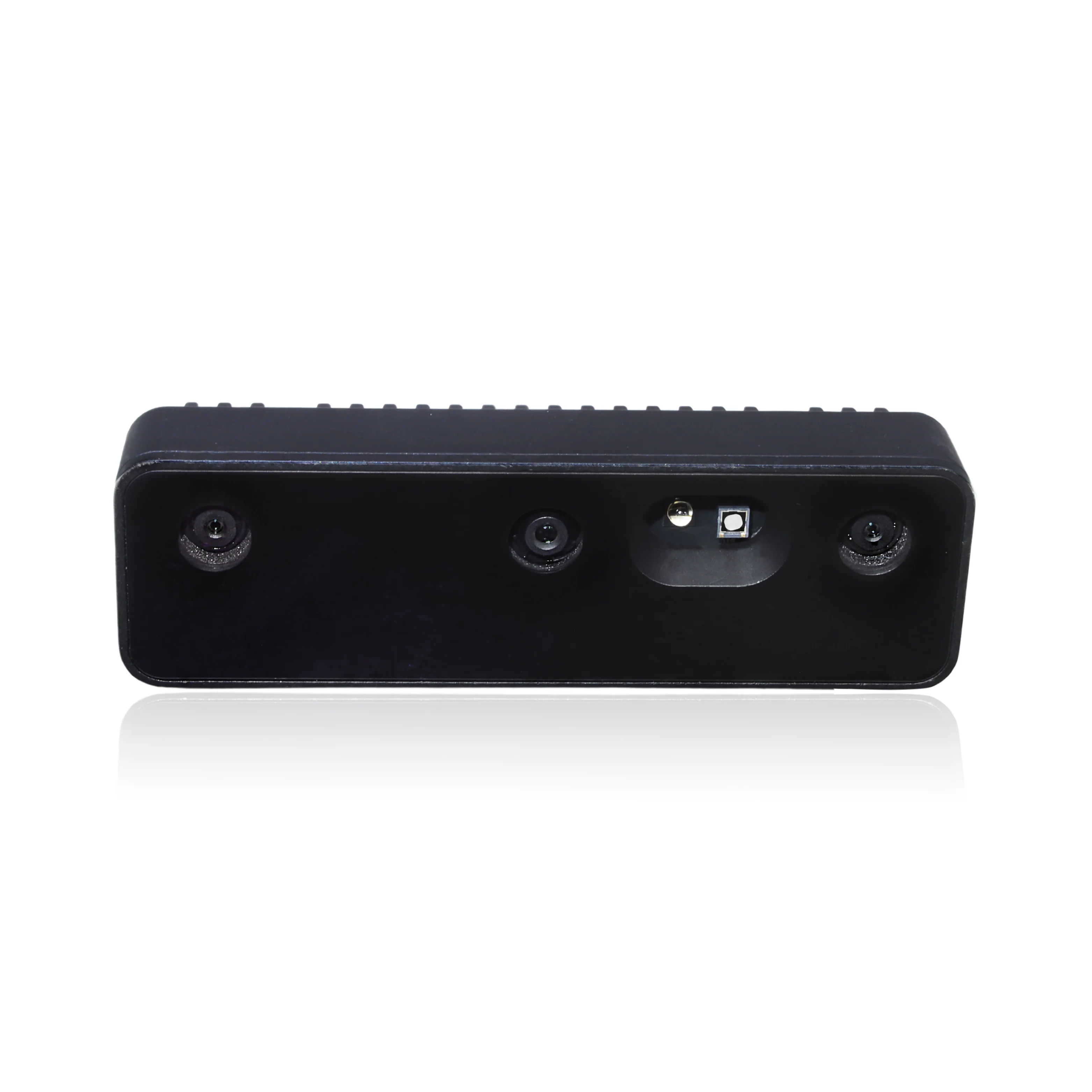

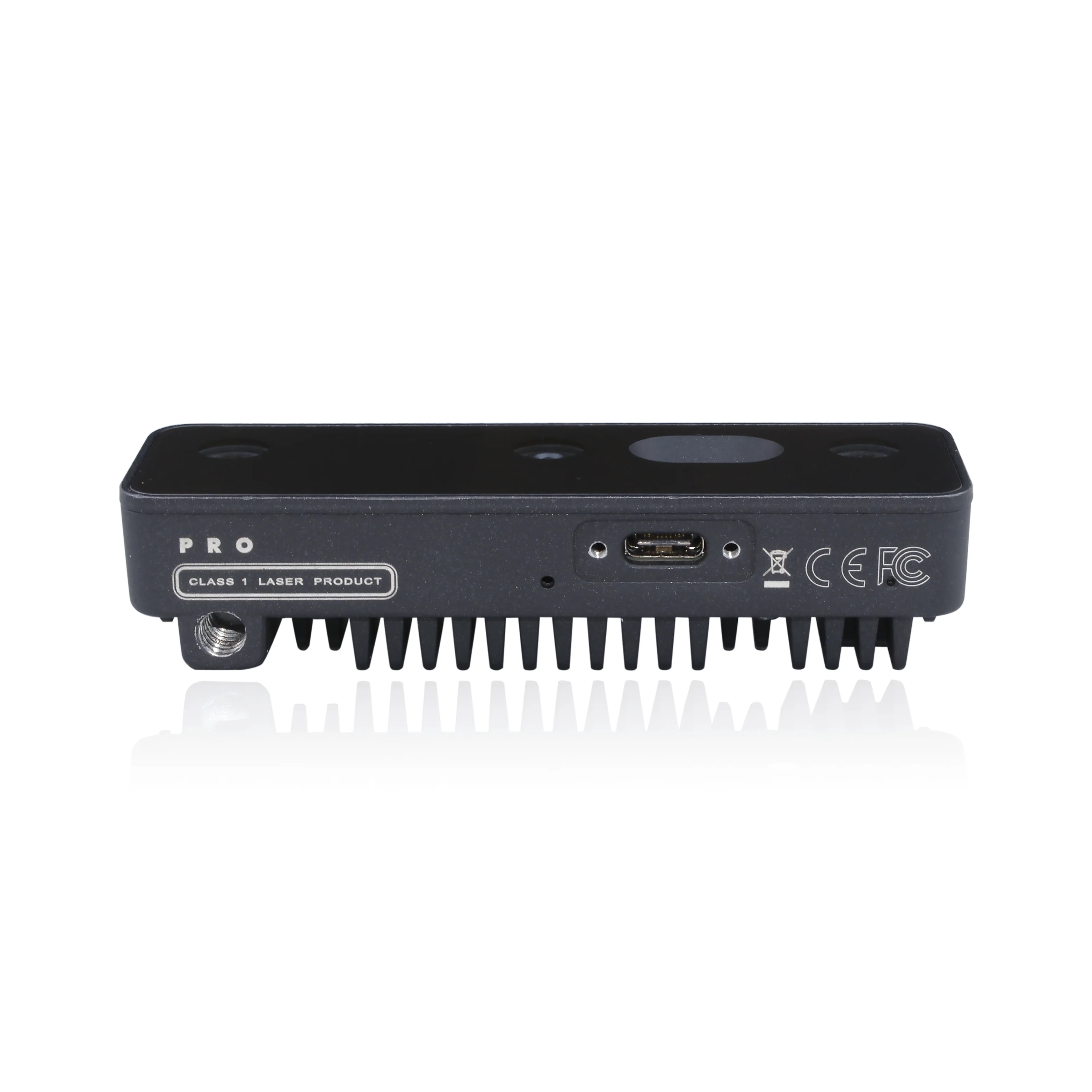

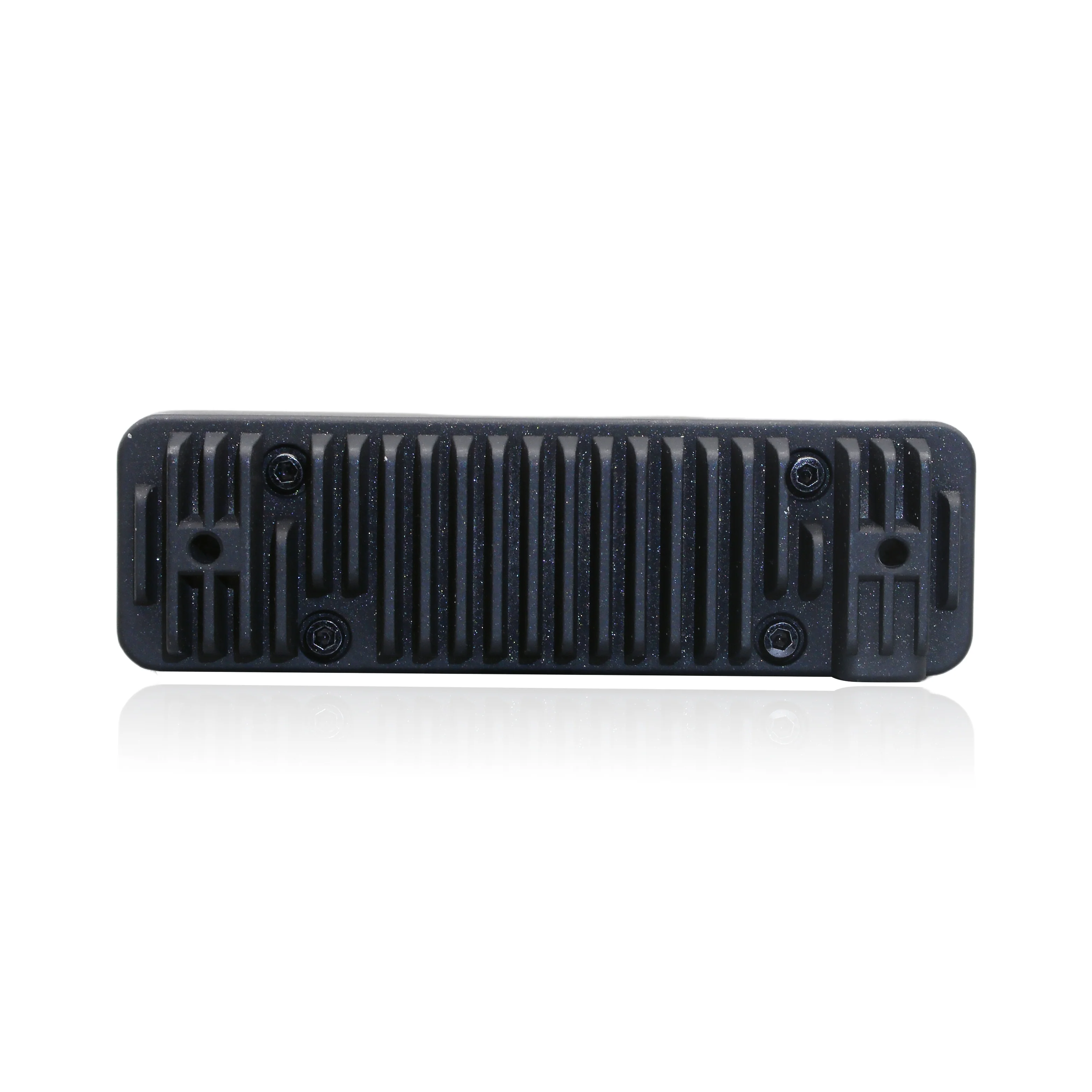

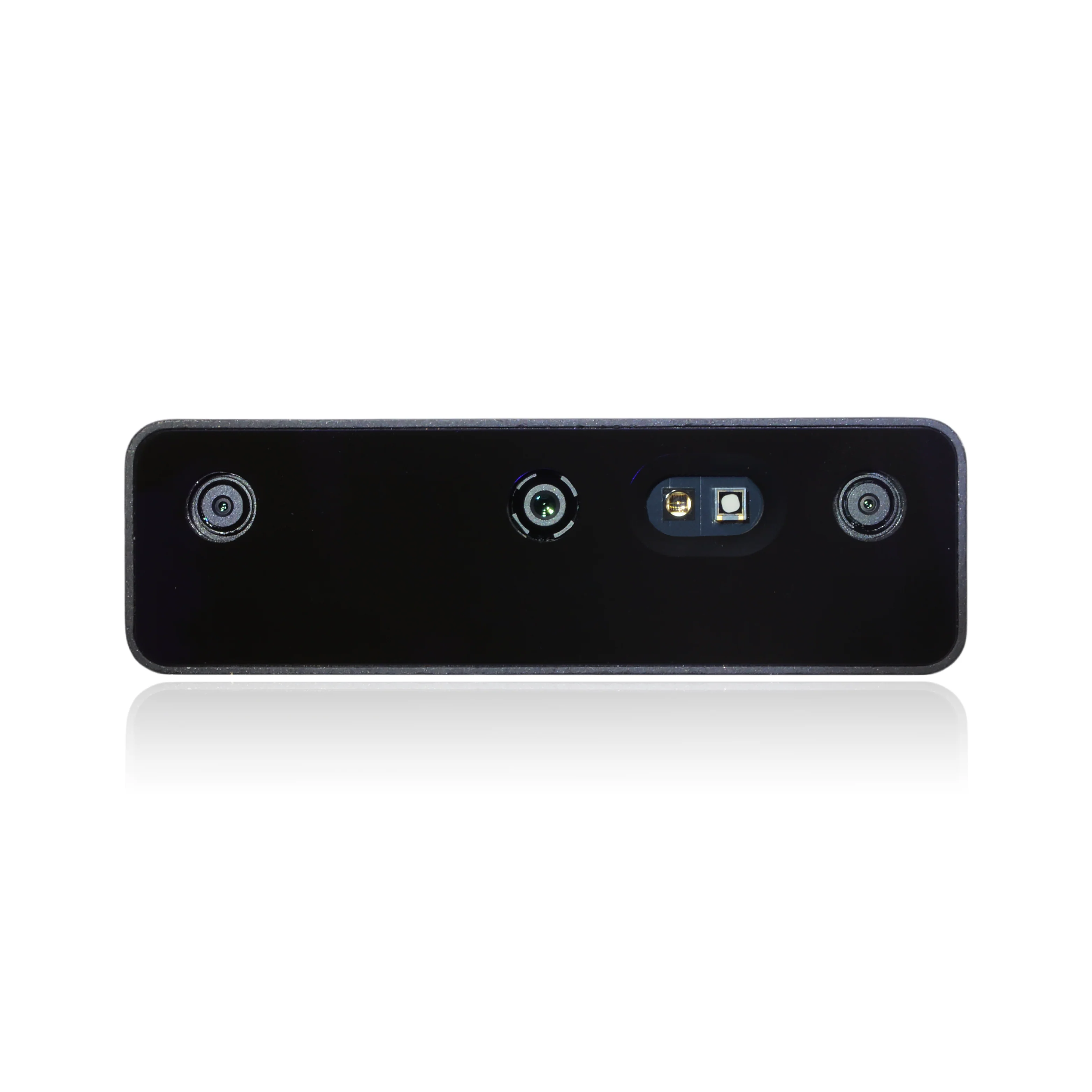

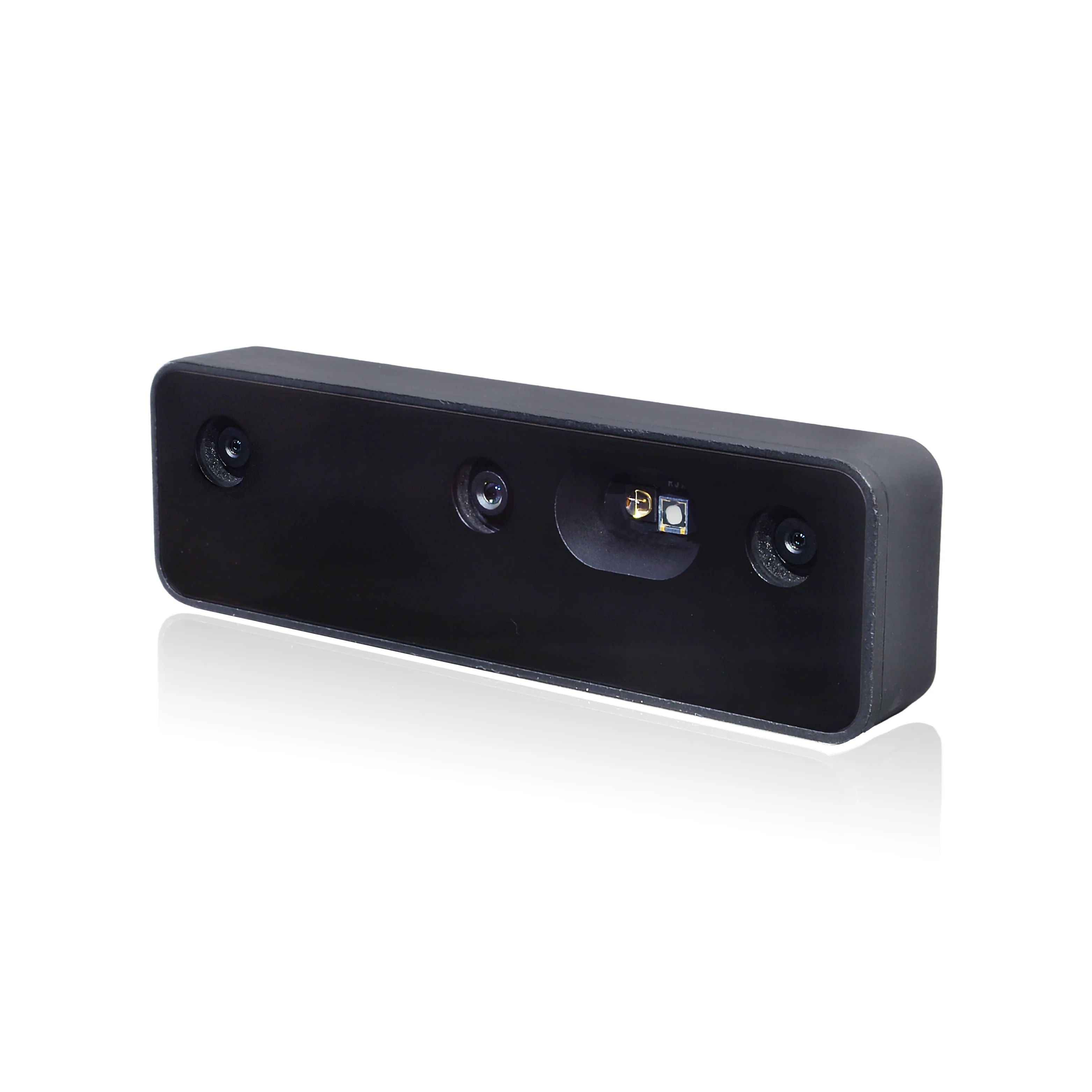

OAK-D Pro Fixed Focus

Features :

• Onboard AI processing with Myriad X.

• High-resolution 4K color camera.

• Accurate stereo depth sensing.

• Fixed focus lenses for consistent clarity.

• Integrated IMU for spatial awareness.

• Compact, pro-grade enclosure.

• Power-over-Ethernet (PoE) option (on specific models).

• Real-time object detection and tracking.

• Open-source software support (DepthAI).

• Versatile for various robotics applications.

Technical Specifications:

• Model: OAK-D Pro Fixed Focus

• Processor: Intel Movidius Myriad X VPU (Visual Processing Unit)

• Color Camera: IMX378 or similar, 12MP (4K resolution)

• Stereo Cameras: 2x Global Shutter OV9282 (1MP each), Fixed Focus

• Depth Sensing: Stereo depth up to ~10-15 meters (depending on scene and lighting)

• IMU: 6-axis IMU (Accelerometer, Gyroscope)

• Connectivity: USB 3.1 Gen1 (Type-C)

• Power: USB powered (typical 4.5W-7.5W depending on workload)

• Operating Temperature: -40°C to +105°C (Myriad X operating range), overall product range typically 0°C to 50°C

• Dimensions: (Typical dimensions for OAK-D Pro are around 91 x 28 x 32 mm, but specify exact if known)

• Weight: (Typically around 91g, but specify exact if known)

• Frame Rate: Up to 30 FPS for 4K, faster for lower resolutions/depth

• Software Ecosystem: Luxonis DepthAI (Open-source, Python API, C++ API)

• Onboard Encoding: H.264, H.265, MJPEG

• Supported Frameworks: TensorFlow, OpenVINO, PyTorch (via ONNX)

Additional Details:

• Manufacturer: Luxonis

• Brand: Luxonis (OAK-D)

• Generic Name: AI Vision Camera || Depth Camera || Stereo Camera || Computer Vision Sensor || Embedded AI Camera || Robotics Sensor || Object Detection Camera || Machine Vision Camera || Spatial AI Camera || Development Kit

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Robotics (Mobile Robots, Manipulators) || Autonomous Vehicles || Industrial Automation || Object Tracking & Recognition || Gesture Recognition || People Counting || Smart Retail Analytics || Quality Inspection || SLAM (Simultaneous Localization and Mapping) || Research & Development in AI

Package Details:

Includes:

• 1x OAK-D Pro Fixed Focus AI Vision Camera

• 1x USB-C to USB-A Cable (for power and data)

Frequently Asked Questions:

Q1. What is the primary advantage of the "Fixed Focus" lenses on the OAK-D Pro compared to an auto-focus version?

Ans. The primary advantage of fixed-focus lenses is consistent and predictable image clarity and depth accuracy. Unlike auto-focus, fixed focus eliminates the need for the camera to adjust its focus, which is crucial for applications where the distance to objects is relatively constant, or where motion might cause auto-focus issues. This provides stable depth data for robotics and automation tasks.

Q2. Can the OAK-D Pro Fixed Focus perform AI processing directly on the device, or does it require a powerful external computer?

Ans. The OAK-D Pro Fixed Focus integrates an Intel Movidius Myriad X VPU, enabling it to perform AI inference, computer vision operations, and depth calculation directly on the device. This "onboard AI processing" significantly reduces the computational load on the host computer, making it suitable for embedded systems and applications where low latency and power efficiency are critical.

Q3. What kind of programming knowledge is required to develop applications using the OAK-D Pro Fixed Focus

Ans. The OAK-D Pro uses the Luxonis DepthAI open-source software ecosystem, which primarily offers Python and C++ APIs. While basic programming knowledge in these languages is beneficial, DepthAI is designed to be user-friendly. There are numerous examples, tutorials, and an active community that can help developers of various skill levels integrate the OAK-D Pro into their projects.
