MICROBRAIN-TERRAIN RADAR H31-1

Features :

• Advanced 77-81GHz millimeter-wave radar.




• 2cm high-precision height measurement.




• Enables precise terrain following.




• Adapts to Pixhawk/Ardupilot FCs.




• UART communication interface.




• IP67 waterproof and dustproof.




• Wide operating temperature range.




• Compact size, lightweight (87g).




• Detects distance to plants and ground.




• Enhances agricultural spraying uniformity.

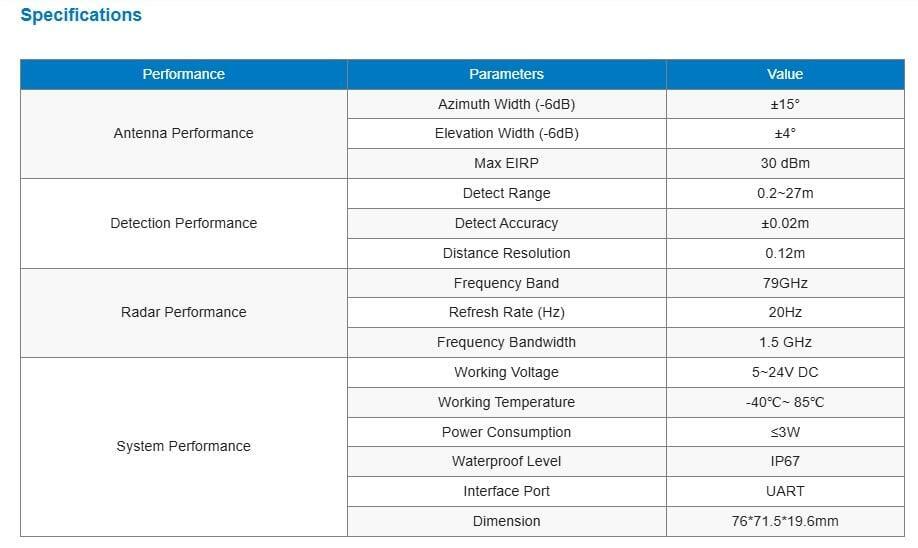

Technical Specifications:

• Model: MICROBRAIN-TERRAIN RADAR H31-1 (also known as UAV-H31-1)

• Type: Altitude / Terrain Following Millimeter-Wave Radar Sensor

• Modulation Mode: FMCW (Frequency Modulated Continuous Wave)

• Frequency Band: 77-81GHz

• Detection Range (Altitude): 0.1 to 27 meters

• Detection Accuracy: ±0.02 meters (2cm)

• Detection Resolution: 0.12 meters

• Refresh Rate: 20Hz

• Bandwidth: 1.5GHz

• Working Voltage: 5-24V DC

• Power Consumption: 3W (max)

• Working Temperature: -40°C to +85°C

• Protection Level: IP67 (Dust tight and protected from immersion in water)

• Communication Interface: UART (Serial Port)

• Dimensions: Approximately 76mm x 71.5mm x 19.6mm

• Weight: Approximately 87g (including cable)

• Antenna Performance (3dB Beam Width): Azimuth ±15∘, Pitch ±4∘

• EIRP (Equivalent Isotropically Radiated Power): 30 dBm

Additional Details:

• Manufacturer: Microbrain Intelligent Technology Co., Ltd.

• Brand: MICROBRAIN

• Generic Name: Terrain Following Radar || Altitude Radar Sensor || Drone Altimeter || 77GHz Radar || UAV Height Sensor || Ground Tracking Radar || Agricultural Drone Sensor || Millimeter-Wave Altimeter || Smart Farming Sensor || Precision Altitude Sensor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Spraying Drones || Plant Protection UAVs || Precision Farming || Autonomous Terrain Following || Drone Mapping & Surveying (low altitude) || Industrial Inspection Drones (over uneven terrain) || Forestry Drones || Small Express Transport UAVs || Pixhawk/Ardupilot Flight Controllers || Custom Drone Builds

Package Details:

Includes:

• 1x MICROBRAIN H31-1 Terrain Radar Sensor

Frequently Asked Questions:

Q1. What makes the MICROBRAIN H31-1 radar ideal for agricultural spraying drones?

Ans. The MICROBRAIN H31-1 radar is ideal for agricultural spraying drones due to its highly accurate 2cm height measurement and 77GHz frequency band, enabling precise terrain following. This ensures the drone maintains a consistent spray height above crops, regardless of ground undulations, leading to uniform application of pesticides or fertilizers. Its IP67 rating also guarantees reliable performance in dusty and wet agricultural environments.

Q2. How does the 77GHz frequency of the H31-1 compare to 24GHz radars often found on drones?

Ans. The 77GHz frequency of the MICROBRAIN H31-1 radar offers several advantages over common 24GHz drone radars. Generally, higher frequencies allow for smaller antenna sizes, higher measurement accuracy (2cm for H31-1), and better resolution for distinguishing between closely spaced objects or ground features. While 24GHz is robust, 77GHz can provide more precise data crucial for demanding applications like accurate terrain following over crops or complex landscapes.

Q3. Is the MICROBRAIN H31-1 Terrain Radar compatible with open-source flight controllers like Pixhawk or Ardupilot?

Ans. Yes, the MICROBRAIN H31-1 Terrain Radar is designed to be compatible with popular open-source flight controllers such as Pixhawk and Ardupilot. It uses a UART (serial port) communication interface, which is widely supported by these flight controllers. Users typically need to connect the sensor's UART pins to an available serial port on the flight controller and configure the appropriate parameters in the flight controller's firmware to enable terrain following functionality.
