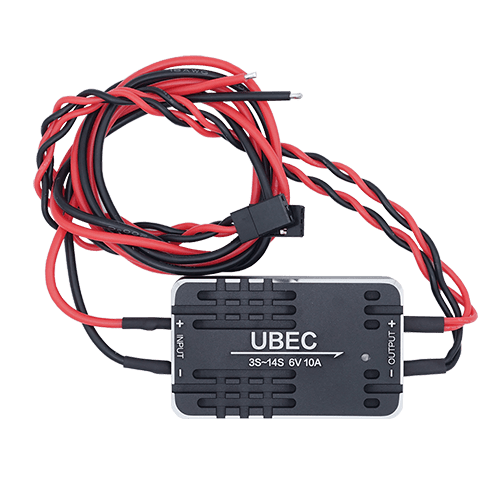

MFE-UBEC ELECTRONICS 6V 10A MODEL
₹7,999.00
The MFE-UBEC ELECTRONICS 6V 10A MODEL is a robust external Universal Battery Eliminator Circuit designed to provide a stable, regulated 6V output with a continuous 10A current. Ideal for powering sensitive electronics in RC aircraft, drones, and robotics, this UBEC ensures reliable performance by stepping down higher voltage battery packs, preventing power fluctuations and brownouts for critical components like servos and flight controllers.
Choose Quantity
Product Details
Features:
- Delivers stable 6V output voltage.
- Provides robust 10A continuous current.
- External UBEC, high efficiency.
- Eliminates need for separate battery.
- Reduces weight, simplifies wiring.
- Protects sensitive electronics.
- Ideal for RC applications.
- Ensures reliable power delivery.
- Compact, durable construction.
- Wide input voltage range.
Technical Specifications:
- Operating Voltage: 3S-14S LiPo
- Continuous current: 10A
- Instantaneous Current: 20A(10S)
- Dimension: 55*33*13mm
- Weight: 57g
- Input Power Cord: Red and Black-18AWG-60cm
- Output Power Cord: Two-way red and black-22AWG-15cm-with servo female connector
Additional Details:
- Manufacturer: MFE
- Brand: MFE
- Generic Name: UBEC, Battery Eliminator Circuit, Voltage Regulator, Power Supply Module
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: RC Airplanes, RC Helicopters, Drones, Multirotors, Robotics, FPV Systems, High-Power Servos, Flight Controllers, Electronic Speed Controllers (ESCs)
Package Details:
- includes: 1 x MFE-UBEC ELECTRONICS 6V 10A MODEL
Frequently Asked Questions:
Q1: What is the primary function of the MFE-UBEC ELECTRONICS 6V 10A MODEL?
Ans: The primary function of the MFE-UBEC ELECTRONICS 6V 10A MODEL is to provide a stable and regulated 6V power supply from a higher voltage battery pack (like those used for motors) to power sensitive electronic components such as servos, flight controllers, and receivers, thereby eliminating the need for a separate receiver battery.
Q2: How does this UBEC protect my sensitive electronics in an RC model?
Ans: This UBEC protects sensitive electronics by providing a constant and stable 6V output, regardless of the input battery's voltage fluctuations or drops under load. This prevents brownouts, which can cause glitches, loss of control, or damage to components that are sensitive to voltage variations.
Q3: Can I use this UBEC with different types of battery packs (e.g., LiPo, NiMH)?
Ans: Yes, this UBEC is designed to work with a range of input voltages, typically compatible with various battery chemistries like LiPo (Lithium Polymer) and NiMH (Nickel-Metal Hydride) packs. You would need to check the exact input voltage range specification (e.g., 2-6S LiPo or 5.5V-23V) for precise compatibility.
