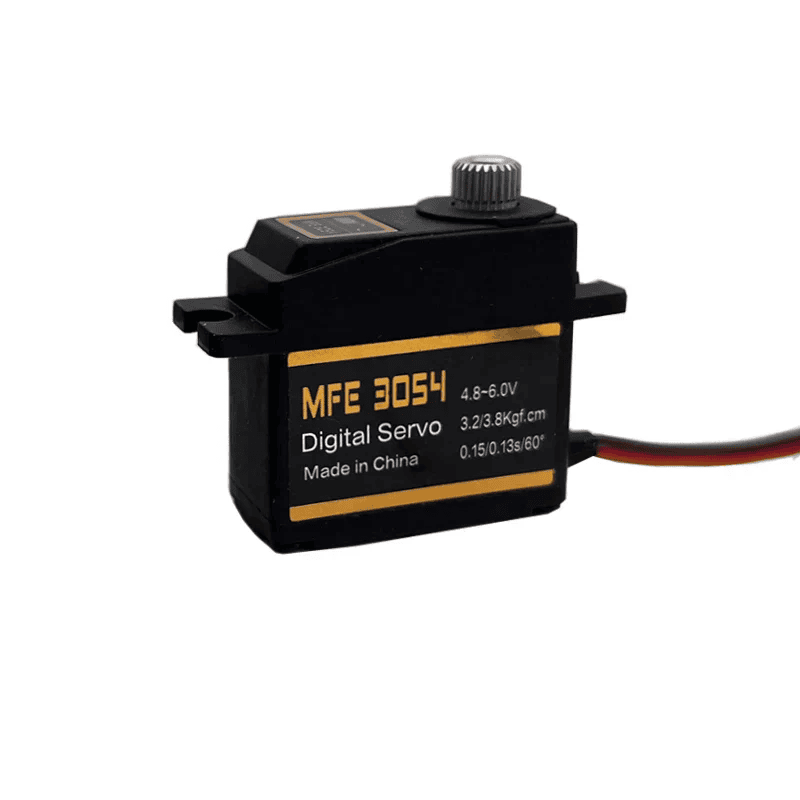

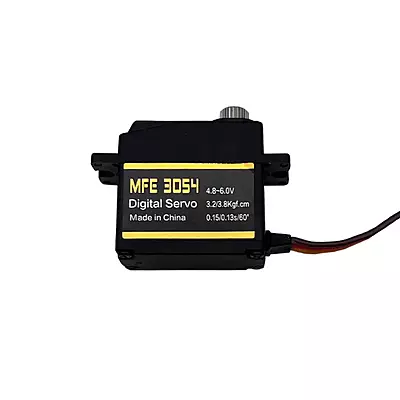

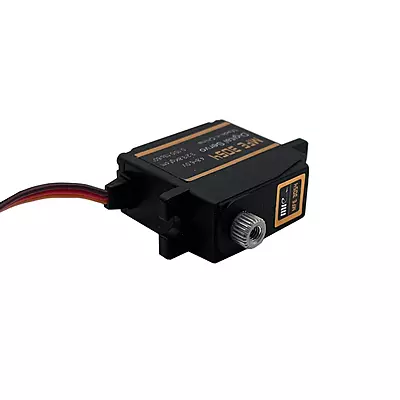

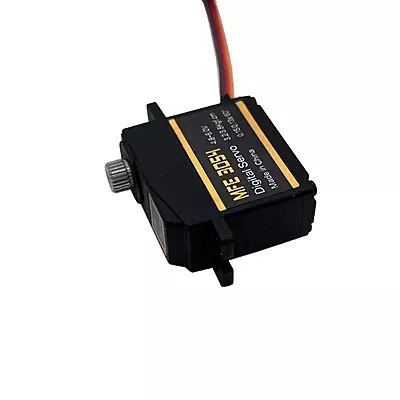

MFE S3054 Digital Servo
₹2,669.00

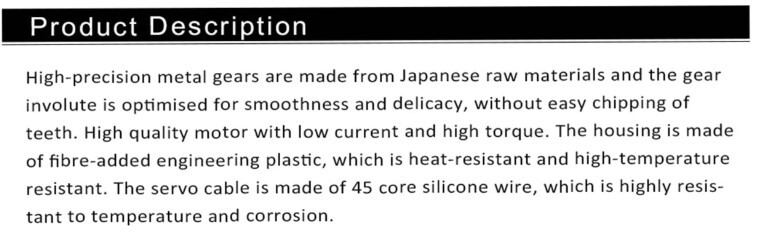

The MFE S3054 Digital Servo is a premium-grade, high-torque digital servo engineered for precision, reliability, and endurance. Built with full-metal gear teeth using Japanese-grade materials, this servo ensures smooth motion with minimal gear wear, making it ideal for demanding RC, robotics, and automation applications.
Choose Quantity
Product Details
Technical Specifications:
- Operating Voltage 4.8V – 6.0V
- Signal Range Counter Clockwise / Pulse 1000 to 1900 μsec
- Max Torque @ 4.8V3.1 kgf·cm
- Speed @ 4.8V0.15 sec/60° (no load)
- Max Torque @ 6.0V3.6 kgf·cm
- Speed @ 6.0V0.13 sec/60° (no load)
- Size 28.5 × 13.0 × 31.1 mm
- Weight 23g
Key Features:
- Full Metal Gear System – Precision-machined Japanese metal gears for long-term durability.
- High Torque Output – Up to 3.6 kgf·cm at 6.0V for powerful performance.
- Fast Response – As quick as 0.13 sec/60°, ideal for real-time RC control or robotics.
- Anti-Interference Design – Stable digital signal with reduced noise susceptibility.
- High-Grade Motor – Delivers low current and high power efficiency.
- Heat-Resistant Housing – Made from fiber-reinforced engineering plastic.
- Premium Silicone Cable – 45-core wire resists temperature, bending, and corrosion.
- Applications: RC Cars, Boats, Planes, and Helicopters, Robotics and Automation Systems, Educational STEM Projects, Gimbals and Pan-Tilt Mechanisms, Industrial Actuation Tasks
Package Includes:
- 1 × MFE S3054 Digital Servo with Metal Gear
Additional Details:
- Generic Name: Digital Servo || Metal Gear Servo || High Torque RC Servo || Anti-Interference Robotics Servo || 23g Precision Actuator
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions:
Q1. Can this servo be used in high-temperature environments?
Yes, the housing and silicone wire are both engineered to resist high temperatures and provide stability under tough conditions.
Q2. Is this servo analog or digital?
It is a digital servo, offering precise signal interpretation and quicker response compared to analog servos.
Q3. What kind of plug does it come with?
Standard 3-pin servo plug compatible with most RC receivers.
