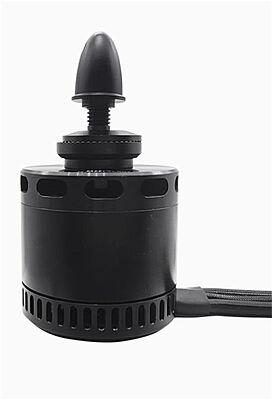

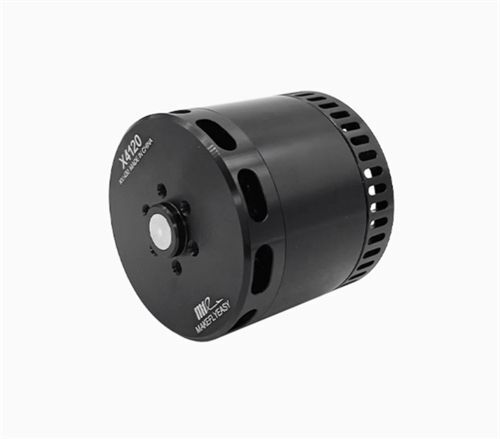

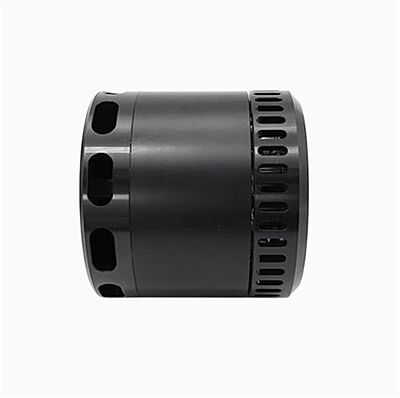

MFE-MAPBIRD 4120 430KV DC MOTOR
₹12,499.00
Out of stock
This MFE MAPBIRD 4120 430KV motor is a high-efficiency DC power plant designed for heavy-lift UAVs and professional aerial survey drones. It features a high-power-density design, military-grade wiring, and built-in active cooling for stable, continuous output. Ideal for 6S LiPo systems, delivering up to 5800g of thrust.
Product Details
Features
- MFE 4120 KV430 High-efficiency Aerial Survey 129.99
- Motor Striver mini Front-pull Motor
- Powerful Dynamics · Stable Output
- The 4120 KV430 cruising motor has a
- high power density to ensure continuous
- and stable output.It is matched with the
- APC 1612E propeller and powered by a 6S
- lithium polymer battery.The maximum pulling
- force of a single shaft can reach 5800g.
- Active Heat Dissipation · Cooling and
- Efficiency Enhancement
- Built-in "Fan" Design in the Rotor.
- Active heat dissipation can be achieved
- through the diversion groove, further
- improving the kinetic energy conversion efficiency.
- Low Copper Loss · High Power
- Using military-grade high-temperature
- resistant enameled wire to reduce copper
- loss in the motor and minimize heat generation.
- Pure manual winding ensures a
- high slot fill factor, higher power density,
- and stronger power.
Specifications
- Motor Model: 4120 KV430
- Slot-level Structure: 12N14P
- Stator Core: Special Surface Anti-rust Treatment
- Motor Size: 50×47.5mm
- Enameled Wire Grade: Resistant to 200°C High Temperature
- Magnet Grade: Resistant to 180°C High Temperature
- Wire Outlet Specification: 12AWG 100mm
- Rotor Dynamic Balance Test: ≤5 Mg
- Wire Coil Withstand Voltage Test: 500V AC
- Propeller Mounting Hole Position: M3Ø124
- Motor Mounting Hole Position: M4Ø84
- Magnet Shape: Arc-shaped
- KV Value: 430
- Rated Voltage: 6S
- No-load Current: 1.5A/10V
- Inter-phase Internal Resistance: 26mΩ
- Maximum Current: 79A/30S
- Maximum Power: 2425W
- Maximum Thrust: 5800g
- ESC Recommendation: 6S 80 - 100A
- Propeller Recommendation: APC 1612E Propeller
- Motor Weight: 307g
Additional detail
- Manufacturer: MFE
- Brand: MAPBIRD (MFE-MAPBIRD)
- Generic Name: High-Efficiency Brushless DC Motor, UAV Propulsion Motor, Multirotor Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Medium to Large Multirotors, Professional Aerial Survey Drones, Fixed-Wing UAVs (requiring high thrust), Heavy-Lift Drone Platforms
Package Details
- Include
- 1 * MFE-MAPBIRD 4120 430KV DC MOTOR
Frequently Asked Questions
Q1: What battery voltage is recommended for this 430KV motor?
ANS: The motor is explicitly rated for and performs optimally with a 6S (six-cell) Lithium Polymer (LiPo) battery system.
Q2: Does this motor require a specific propeller size for maximum thrust?
ANS: Yes, to achieve the maximum advertised thrust of 5800g, the motor is recommended to be paired with an APC 1612E propeller.
Q3: How is heat managed in this motor during high-power operation?
ANS: The motor incorporates a built-in "Fan" design within the rotor and diversion grooves to enable active heat dissipation, ensuring efficiency and stable output.
