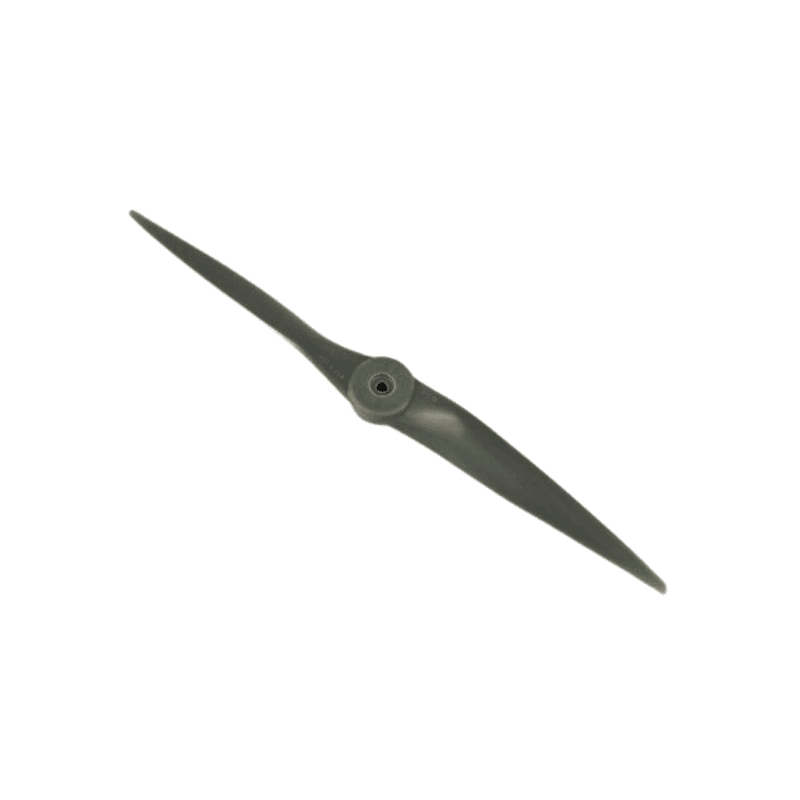

MFE-APC 18x12 PROPELLER

Features:

• Large 18-inch diameter for powerful thrust.




• High 12-inch pitch for maximum speed.




• Durable glass-fiber reinforced composite.




• Excellent dynamic balance, low vibration.




• Highly efficient for electric propulsion.




• Thin blade profile reduces aerodynamic drag.




• Provides strong, consistent forward thrust.




• Standard hub for wide motor compatibility.




• Enhances overall fixed-wing performance.




• Ideal for demanding UAV applications.

Technical Specifications:

• Model: MFE-APC 18x12 PROPELLER

• Propeller Diameter: 18 inches (457.2 mm)

• Propeller Pitch: 12 inches

• Number of Blades: 2

• Material: Glass-Fiber Reinforced Composite (GFRC) or Fiberglass-Reinforced Plastic (commonly grey)

• Color: Grey (Standard for many APC props)

• Hub Diameter:1.25 in.

• Hub Thickness:0.50 in.

• Shaft Diameter : 1/4 in.

• Product Weight : 2.61 oz.

• Maximum RPM: According to APC's formula for E-Series props, the 18x12E should not be used over 7,867 RPM

• Application: Primarily for large electric-powered fixed-wing UAVs, high-speed RC sport aircraft, and VTOL drones (for forward flight).

• Dynamic Balance: Precision molded to minimize vibration and ensure good balance.

Additional Details:

• Manufacturer: APC

• Brand: MFE-APC

• Generic Name: Electric Propeller || Fixed-Wing Propeller || Large Propeller || UAV Propeller || High Pitch Prop || Composite Propeller || 2-Blade Propeller || Drone Prop || Aerodynamic Propeller || High-Speed Prop

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Large Electric Fixed-Wing Drones || High-Speed RC Airplanes || Long-Range UAVs || Heavy-Lift Fixed-Wing Drones || Aerial Mapping Platforms (large) || Surveillance Fixed-Wing UAVs || VTOL (Vertical Take-off and Landing) Fixed-Wing UAVs (for forward flight) || Custom High-Performance Drone Builds || Endurance Flight Missions || Professional Aerial Applications

Package Details:

Includes:

• 1x MFE-APC 18x12 PROPELLER

Frequently Asked Questions:

Q1. What makes the MFE-APC 18x12 propeller suitable for large fixed-wing UAVs?

Ans. The MFE-APC 18x12 propeller is ideal for large fixed-wing UAVs due to its substantial 18-inch diameter and high 12-inch pitch. This combination is optimized to generate significant thrust and high forward speeds efficiently, which is crucial for moving heavier airframes, achieving long-range missions, and maintaining fast cruise speeds characteristic of larger fixed-wing drones. Its design maximizes power conversion for demanding applications.

Q2. How does the high "12-inch pitch" of this propeller benefit fixed-wing aircraft?

Ans. The high "12-inch pitch" of the MFE-APC 18x12 propeller means that for every revolution, the propeller is designed to advance 12 inches through the air. This high pitch is highly beneficial for fixed-wing aircraft as it directly translates to higher airspeeds and efficient cruising performance. It's particularly advantageous for planes and UAVs that are built for speed, long-distance travel, or require substantial forward momentum for efficient lift and control.

Q3. Is this propeller made of the same durable material as other APC electric props?

Ans. Yes, the MFE-APC 18x12 propeller is typically made from the same durable Glass-Fiber Reinforced Composite (GFRC) material commonly used in other APC Thin Electric series propellers. This composite material provides an excellent balance of rigidity for efficient thrust, light weight, and strong resistance to impacts and bending. This ensures the propeller maintains its aerodynamic integrity under high loads and offers good longevity in various flight conditions.
