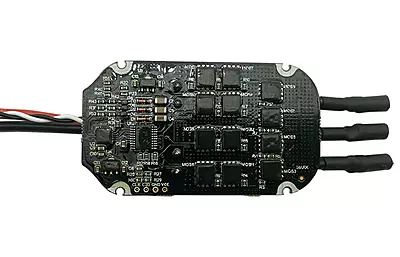

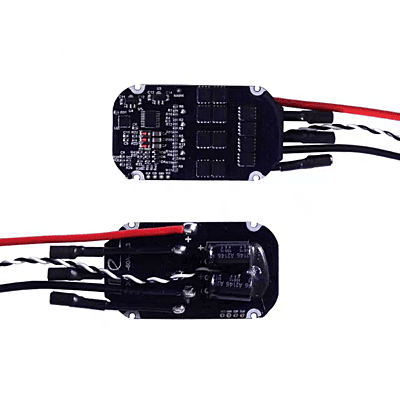

MFE-50A 6S ESC

Features :

• Supports 2S to 6S LiPo battery input.

• 50 Amps continuous current handling.

• High-performance processor for smooth control.

• Robust design ensures reliable power delivery.

• Multiple protection features for system safety.

• Optimized for multirotor drone applications.

• Compact size for easy integration.

• Good heat dissipation for sustained operation.

• Stable motor performance and responsive throttle.

• Essential for custom drone builds and upgrades.

Technical Specifications:

• Continuous Current: 50A

• Burst Current (10s): 60A – 70A

• Input Voltage: 2–6S LiPo (7.4V – 25.2V)

• BEC Output: No BEC (OPTO) Requires external BEC for powering flight controller or receiver

• Firmware: Likely BLHeli_S (multirotor standard; confirm if proprietary firmware is used)

• Processor (MCU): Typically 8-bit or 32-bit (exact model not specified)

• Throttle Signal Rate: Commonly up to 500Hz (confirm if supported)

• Dimensions: Approx. 55 × 25 × 10 mm (confirm exact size)

• Weight: 49 g

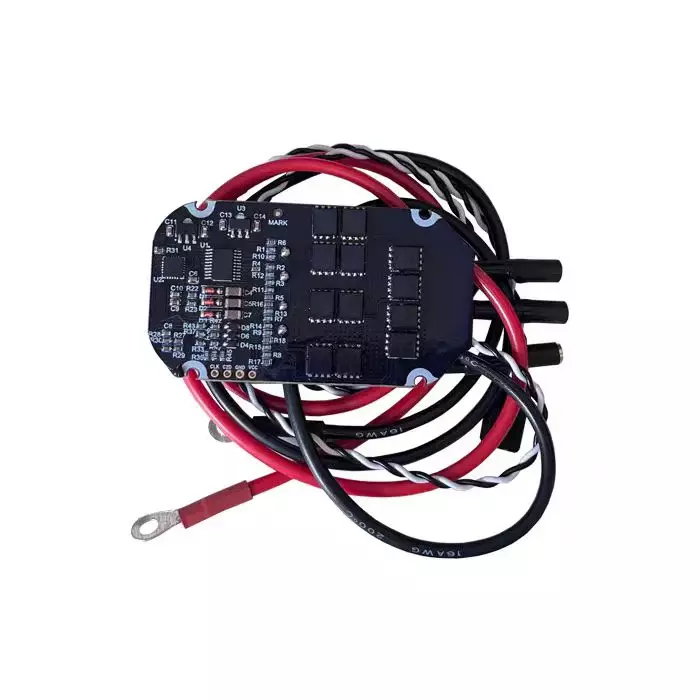

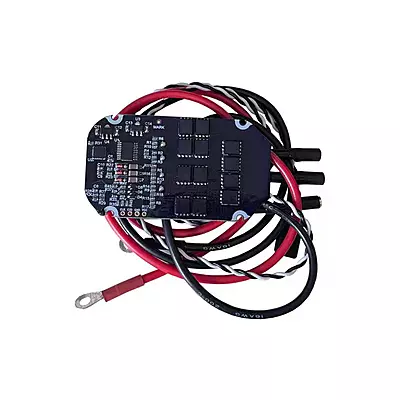

• Power Cord: 16 AWG, 55 cm length

• Motor Wire: 16 AWG, 4 cm length

• Signal Cable: 30-core black & white double twisted pair, 46 cm length

• Input Wires: 14 AWG or 16 AWG (silicone insulated)

• Output Wires: 16 AWG or 18 AWG (silicone insulated)

• Banana Connector: 3.5 mm Female (bullet connector)

• Cold Pressed Terminals: OT2.5-4

• Output Connectors: May include bullet connectors or be open-ended (check variant)

Additional Details:

• Manufacturer: MFE (Manufacturer name, if different from brand, specify)

• Brand: MFE

• Generic Name: Electronic Speed Controller || ESC || Brushless ESC || Multirotor ESC || Drone ESC || 6S ESC || Motor Controller || Speed Controller || RC ESC || OPTO ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Custom Drone Builds || FPV Racing Drones || Freestyle Drones || Quadcopters || Hexacopters || Heavy-Lift Drones || Agricultural Drones || Industrial Drones || Drone Upgrades || Robotics Projects.


Package Details:

Includes:

• 1x MFE 50A 6S Brushless ESC

• 1x User Manual / Basic Wiring Diagram (if provided by MFE)

Frequently Asked Questions:

Q1. What does "6S" mean in the MFE-50A 6S ESC's name?

Ans. "6S" indicates that this Electronic Speed Controller (ESC) is designed to operate with a LiPo battery pack that has 6 cells in series. This means it can handle input voltages up to approximately 25.2 volts when fully charged, making it suitable for drones requiring higher power.

Q2. Does this MFE-50A 6S ESC have a built-in BEC to power my flight controller or receiver?

Ans. No, the MFE-50A 6S ESC is an "OPTO" ESC, which means it does not have a built-in Battery Eliminator Circuit (BEC). You will need to use a separate dedicated BEC or rely on power provided by your flight controller (if it has a built-in BEC) to power your receiver, flight controller, and other low-voltage electronics.

Q3. Is this ESC suitable for high-performance FPV racing drones?

Ans. While the 50A current rating is robust, the suitability for high-performance FPV racing depends on the specific motors and propellers used, as well as the ESC's firmware (e.g., BLHeli_S or similar for racing). This ESC's ability to handle 6S LiPo makes it capable of powering powerful setups, but verify firmware compatibility for optimal racing performance features like DShot.
