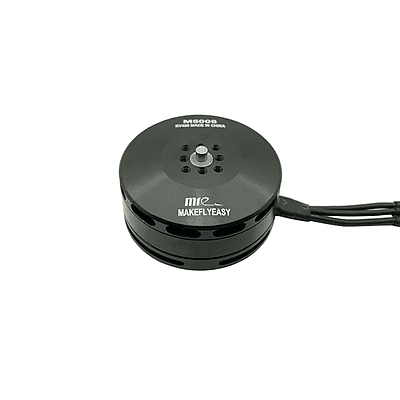

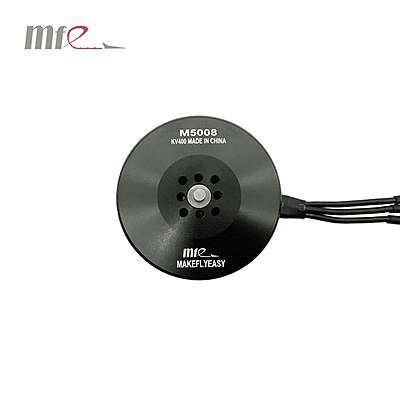

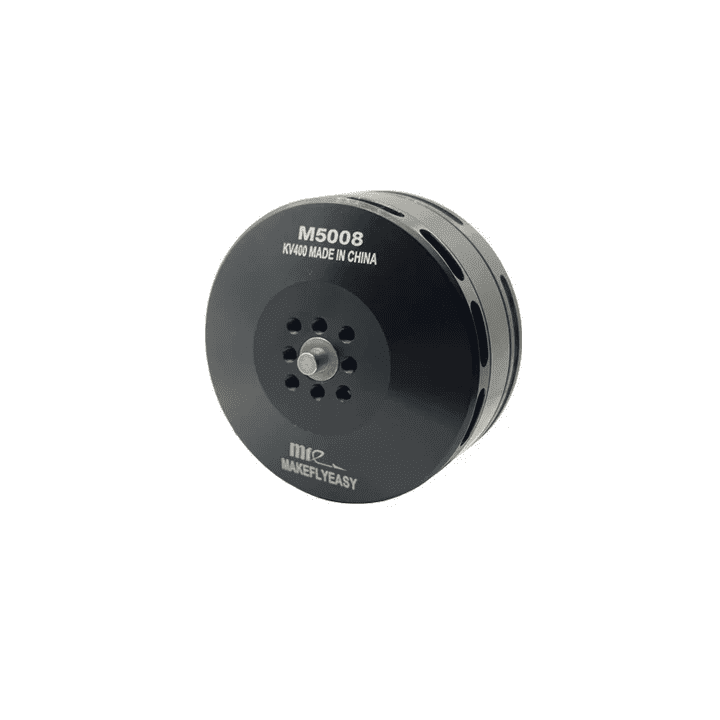

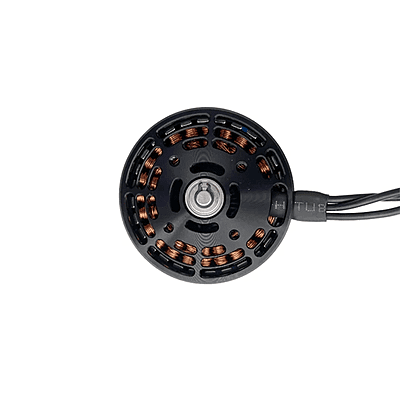

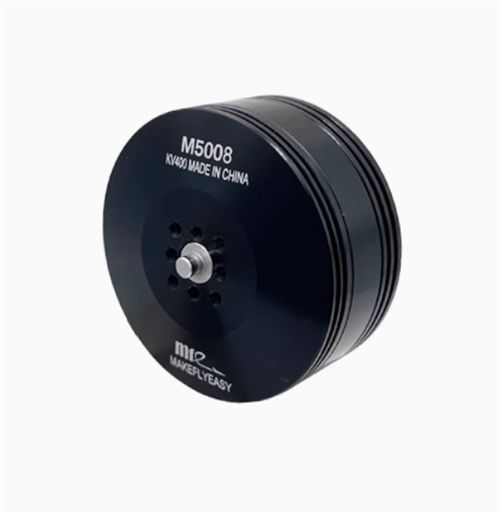

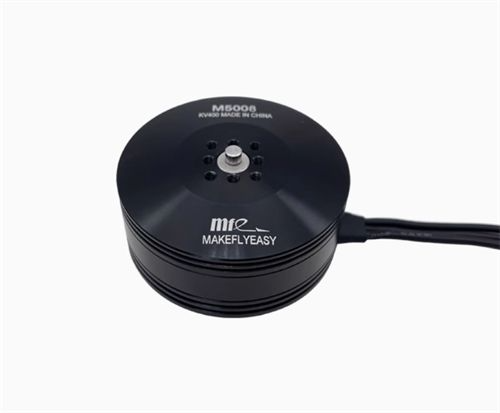

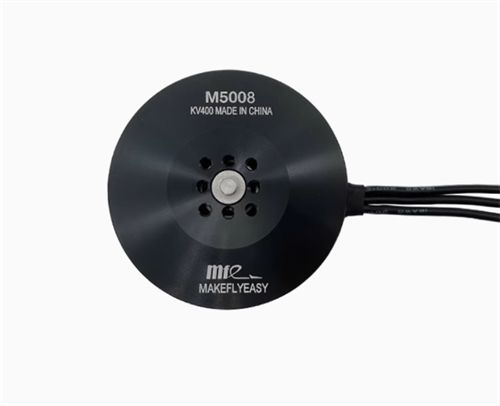

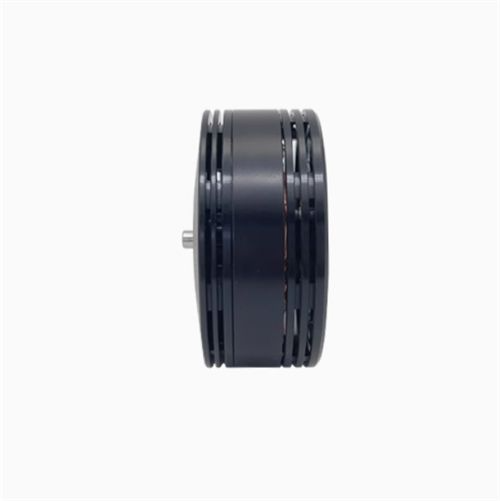

MFE 5008 Brushless Motor
Non-returnable
₹11,849.00
The MFE 5008 series brushless motors are high-efficiency, lightweight powerhouses designed for professional multirotor drones and UAVs, excelling in extended flight applications. Known for their robust construction and rain-resistant features, these motors deliver reliable thrust and endurance, making them ideal for aerial photography, surveying, and other demanding, long-duration missions.
KV
Choose Quantity
Product Details
Features:
- High efficiency for extended flight.
- Ultra-lightweight design for endurance.
- Optimized for long duration applications.
- Rain resistant (IP35 or higher protection).
- Built-in "fan" design for heat dissipation.
- Precision balanced rotor for smooth operation.
- High-quality imported magnets.
- Corrosion-resistant stator material.
- High-temperature resistant enamelled wire.
- Standardized mounting holes for versatility.
Technical Specifications:
- Material: Metal
- compatible brand: Others
- private mold: Yes
- place of origin: Guangdong, China
- brand name: MFE
- Slot-level Structure: 24N28P
- Stator Core: Imported Material/Surface Anti-rust
- Motor Size: 56*25.5mm
- Enameled Wire Grade: Resistant to 180°C high temps
- Magnet Grade: Resistant to 180°C high temps
- Protection Grade: IP35
- Wire Outlet Specification: 70mm
- Off-core Heat Dissipation Design: YES
- Rotor Dynamic Balance Test: ≤5 Mg
- Wire Coil Withstand Voltage: 500V AC
Additional Details:
- Manufacturer: MFE (Makeflyeasy)
- Brand: MFE
- Generic Name: Drone Motor || Brushless Motor || Multirotor Motor || UAV Motor || Long Endurance Motor || Aerial Photography Motor || Electric Motor || Outrunner Motor || Professional Drone Motor || Surveying Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional Multi-rotors || Long-Range Inspection Drones || Mapping & Surveying UAVs || Quadcopters, Hexacopters, Octocopters || Heavy-Lift Drones (various weight classes depending on KV) || Custom Endurance Builds || Commercial Drone Applications || Cinematic UAVs || Industrial Monitoring Drones || Users prioritizing endurance and payload capacity.
Package Details:
Includes:
- 1 x MFE 5008 Series Brushless Motor
Frequently Asked Questions:
Q1. What battery voltage range is recommended for the MFE 5008 brushless motor series?
Ans. The recommended battery voltage varies significantly by the specific KV, generally ranging from 6S to 12S LiPo to achieve optimal performance and efficiency for long-duration flights.
Q2. Is this motor series suitable for heavy-lift drones that need extended flight times?
Ans. Yes, the MFE 5008 series is specifically designed for high efficiency and lightweight, making it ideal for multirotors requiring substantial thrust per rotor and very long flight times, suitable for various heavy-lift applications.
Q3. What does the IP35 protection rating signify for these motors?
Ans. The IP35 rating means these motors are protected against solid objects larger than 2.5mm (dust-resistant to a degree) and against water sprayed from any direction, making them suitable for outdoor use in light rain or dusty conditions.
