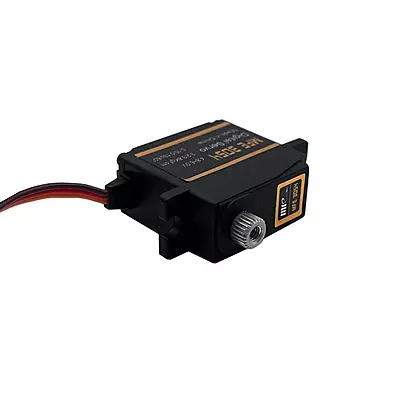

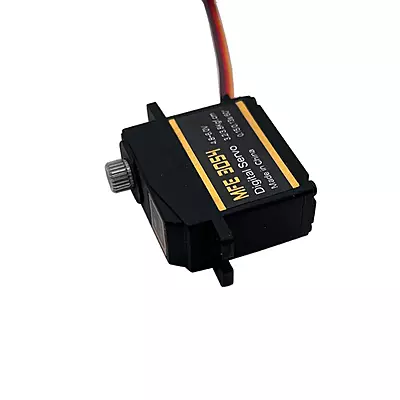

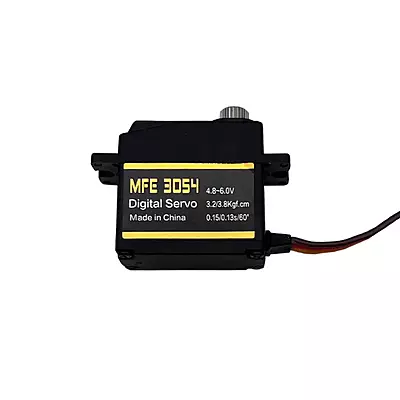

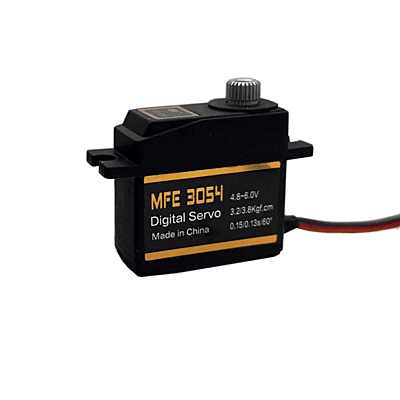

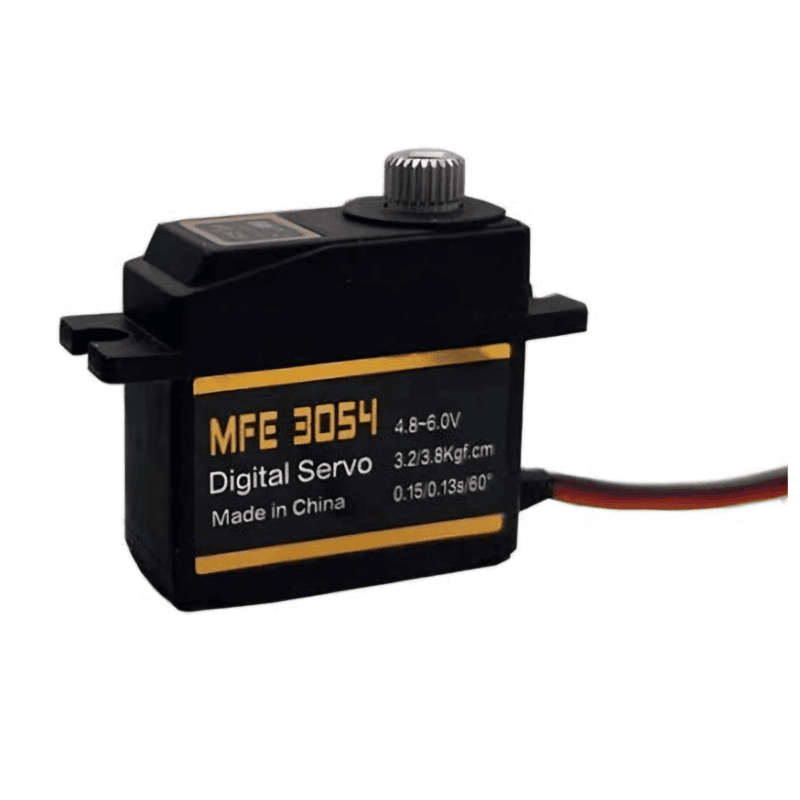

MFE S3054 Digital Servo

Features:

• High-precision digital control for responsive actuation.




• Provides significant torque for large control surfaces.




• Fast transit speed ensures quick flight corrections.




• Durable internal metal gears for reliability.




• Excellent performance under high loads and stress.




• Ideal for fixed-wing and VTOL large UAVs.




• Resistant to vibration and harsh environments.




• Smooth and accurate centering.




• High operating voltage compatibility.




• Crucial for professional flight control.

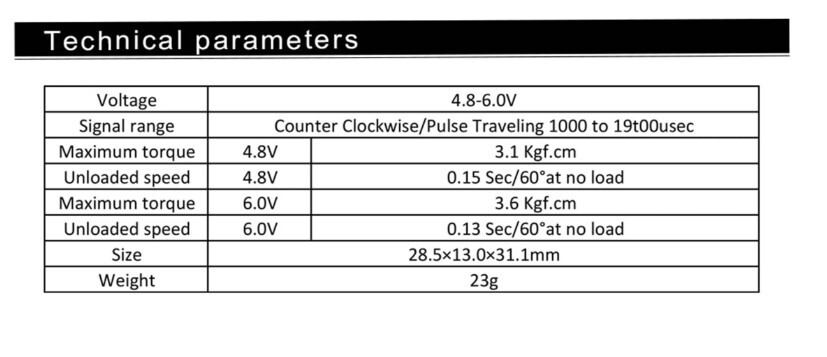

Technical Specifications:

• Operating Voltage 4.8V – 6.0V

• Signal Range Counter Clockwise / Pulse 1000 to 1900 μsec

• Max Torque @ 4.8V3.1 kgf·cm

• Speed @ 4.8V0.15 sec/60° (no load)

• Max Torque @ 6.0V3.6 kgf·cm

• Speed @ 6.0V0.13 sec/60° (no load)

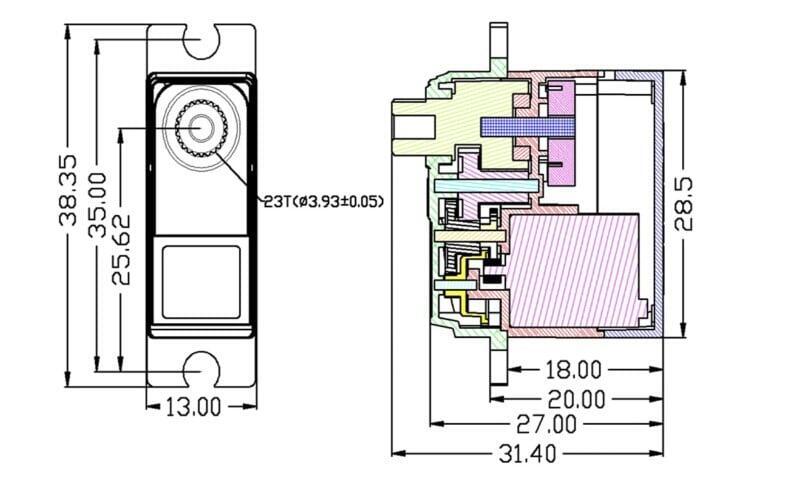

• Size 28.5 × 13.0 × 31.1 mm

• Weight 23g

Package Includes:

• 1 × MFE S3054 Digital Servo with Metal Gear

Additional Details:

• Manufacturer: MFE

• Brand: MFE

• Generic Name: Digital Servo || RC Servo || UAV Actuator || Drone Motor || High-Torque Servo || Flight Control Component || Control Surface Servo || MFE Servo || RC Gear || Industrial Drone Part

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Fixed-Wing UAVs || VTOL Drones || Large Industrial Drones || Aerial Mapping || Surveillance Drones || Professional RC Aircraft || Heavy-Lift Fixed-Wing || Drone Builders || Custom UAV Projects || Robotic Mechanisms

Frequently Asked Questions:

Q1. What is the advantage of a digital servo like the S3054 over an analog servo?

Ans. Digital servos offer higher torque, greater speed, and more precise centering than analog servos. They process the signal much faster, providing quick and highly responsive movements, which is crucial for maintaining stable control on high-speed or large, heavy UAVs.

Q2. Is this servo suitable for heavy-duty applications?

Ans. Yes, the MFE S3054 is specifically designed for heavy-duty industrial and professional UAV applications. Its high-torque rating and durable metal gears are engineered to handle the large control surfaces and significant aerodynamic forces experienced by fixed-wing and VTOL drones.

Q3. What kind of maintenance does this servo require?

Ans. As a high-quality digital servo, the S3054 requires minimal maintenance. The primary recommendation is to periodically inspect the gears for wear (though metal gears are highly durable) and ensure the mounting screws are tight, as high vibration can loosen connections over time.
