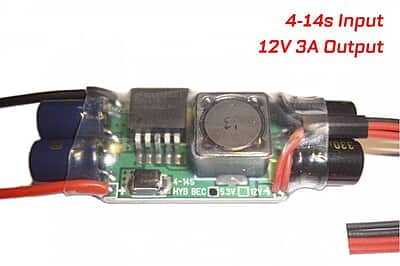

Mauch 090: 4-14S HYB-BEC / 12V-3A / 2x 20cm 24AWG

Features :

• Ultra-clean 12V regulated output.




• Supports wide 4S to 14S LiPo input.




• Hybrid BEC for superior power quality.




• Provides stable 3A continuous current.




• Minimizes electrical noise and interference.




• Pre-wired with 2x 20cm 24AWG cables.




• Ideal for cameras, VTX, and gimbals.




• Compact and lightweight design.




• Essential for demanding UAVs.




• Premium Mauch engineering and quality.

Technical Specifications:

• Model: Mauch 090: 4-14S HYB-BEC

• Input Voltage: 4S to 14S LiPo (approximately 14.8V to 58.8V)

• Output Voltage: 12.0V (Regulated)

• Output Current: 3A (Continuous)

• Type: Hybrid BEC (HYB-BEC), combining efficiency of switching with cleanliness of linear regulation.

• Output Wires: 2x 20cm (approx. 7.87 inches) 24AWG wires (typically bare ends for soldering to peripherals).

• Input Connection: Typically bare wires for soldering to main battery leads, or specific input connector if indicated by Mauch.

• Efficiency: High efficiency

• Dimensions: 54mm x 21mm x 14mm

• Weight: 16g with cables and shrinking tubeVery lightweight

• Protection Features: Short-circuit protection, over-current protection.

• Compatibility: Ideal for powering 12V peripherals in high-voltage drone systems.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: BEC || Hybrid BEC || Voltage Regulator || Power Module || Drone Power Supply || High Voltage BEC || HV BEC || 12V BEC || UAV Power || Peripherals Power

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV Video Transmitters (VTX) || Drone Cameras || Gimbal Systems || LED Lighting Systems || Drone Accessories || Custom High-Voltage Drone Builds || Industrial Inspection UAVs || Heavy-Lift Drones || Professional Cinematography UAVs || Robotics Platforms

Package Details:

Includes:

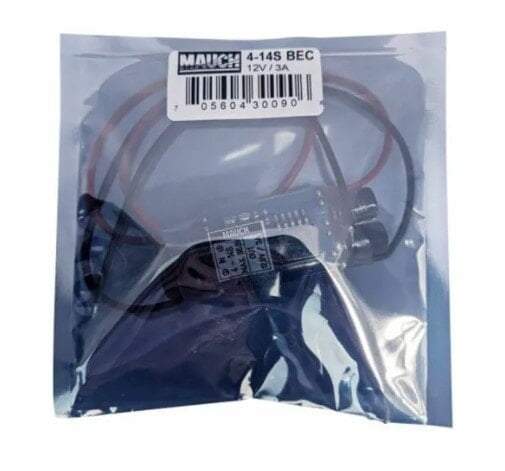

• 1x Mauch 090: 4-14S HYB-BEC / 12V-3A with 2x 20cm 24AWG pre-attached output wires.

Frequently Asked Questions:

Q1. What types of drone components is the Mauch 090 12V HYB-BEC designed to power?

Ans. The Mauch 090 12V HYB-BEC is specifically designed to provide a clean and stable 12V power supply for various drone peripherals. This commonly includes FPV video transmitters (VTX), drone cameras, small gimbal systems, and LED lighting. By providing regulated 12V directly from the main battery, it ensures these components operate optimally without interference or voltage fluctuations.

Q2. What is the significance of the "2x 20cm 24AWG" wires included with this BEC?

Ans. The "2x 20cm 24AWG" wires refer to two pre-attached 20-centimeter (approximately 7.87 inches) lengths of 24AWG (American Wire Gauge) wire. These wires serve as the output leads for the 12V power, making it convenient for users to directly connect and solder them to their 12V peripherals without needing to source or prepare additional wiring, simplifying the installation process.

Q3. Can this 12V BEC also be used to power a flight controller?

Ans. No, the Mauch 090 is specifically designed to output 12V for peripherals. Most standard flight controllers, especially Pixhawk and similar autopilots, require a 5V or 5.3V input for stable operation. Attempting to power a 5V flight controller with a 12V BEC would almost certainly damage it. Always ensure your power source's voltage matches your component's input voltage requirements.
