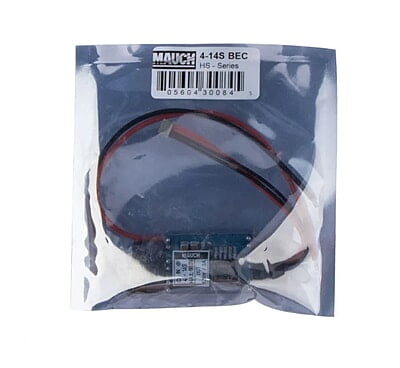

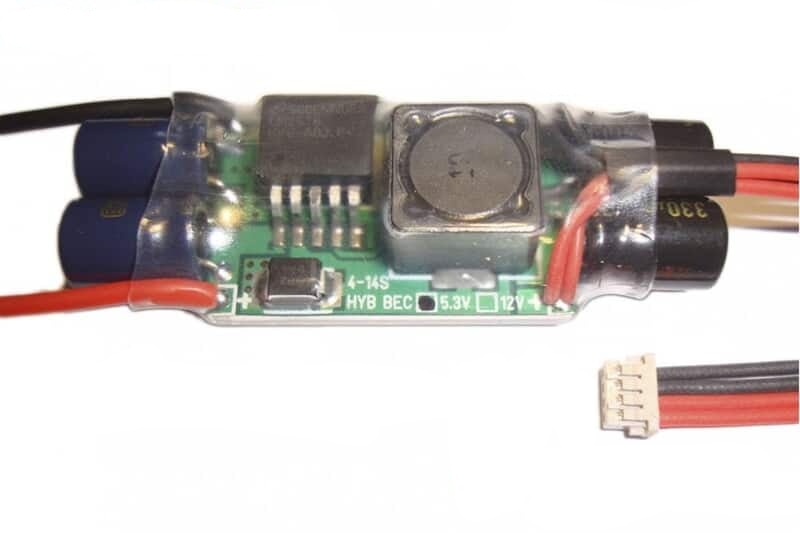

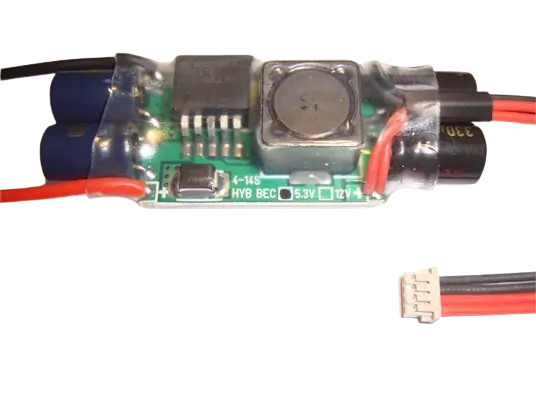

Mauch 084: 4-14S HYB-BEC / 5.30V-3A / DF-13-4P

Features :

• Ultra-clean 5.3V regulated output.




• Supports wide 4S to 14S LiPo input.




• Hybrid BEC for superior power quality.




• Provides stable 3A continuous current.




• Minimizes electrical noise and interference.




• Pre-fitted DF-13-4P output connector.




• Enhances flight controller reliability.




• Compact and lightweight design.




• Essential for demanding UAVs.




• Premium Mauch engineering and quality.

Technical Specifications:

• Model: Mauch 084: 4-14S HYB-BEC

• Input Voltage: 4S to 14S LiPo (approximately 14.8V to 58.8V)

• Output Voltage: 5.30V (Regulated)

• Output Current: 3A (Continuous)

• Type: Hybrid BEC (HYB-BEC), combining efficiency of switching with cleanliness of linear regulation.

• Output Connector: DF-13-4P (4-pin DF13 connector)

• Input Connection: (Typically bare wires for soldering to main battery leads, or specific input connector if indicated by Mauch.)

• Efficiency: High efficiency

• Dimensions: 54mm x 21mm x 14mm

• Weight: 16g with cables and shrinking tube Very lightweight

• Protection Features: Short-circuit protection, over-current protection.

• Compatibility: Ideal for flight controllers and peripherals that utilize a DF-13-4P power input, commonly found on Pixhawk and similar autopilots.

Additional Details:

• Manufacturer: Mauch Electronics

• Brand: Mauch

• Generic Name: BEC || Hybrid BEC || Voltage Regulator || Power Module || Drone Power Supply || High Voltage BEC || HV BEC || 5.3V BEC || UAV Power || Flight Controller Power

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Pixhawk Flight Controllers || CubePilot Flight Controllers || High-Voltage Drone Builds || Industrial Inspection UAVs || Heavy-Lift Drones || Professional Cinematography UAVs || Long-Endurance Drones || Custom Multi-Rotor UAVs || Fixed-Wing UAVs || Robotics Platforms

Package Details:

Includes:

• 1x Mauch 084: 4-14S HYB-BEC / 5.30V-3A / DF-13-4P

Frequently Asked Questions:

Q1. What is the benefit of the "DF-13-4P" connector on the Mauch 084 HYB-BEC?

Ans. The pre-fitted DF-13-4P connector on the Mauch 084 HYB-BEC simplifies integration with many popular flight controllers, particularly those in the Pixhawk series, which commonly use this connector for their power module input. This "plug-and-play" aspect eliminates the need for custom wiring or soldering for the output connection, saving time and reducing potential wiring errors, ensuring a secure and reliable power link.

Q2. Is the 3A current output sufficient for a typical Pixhawk flight controller with connected peripherals?

Ans. A 3A current output from the Mauch 084 HYB-BEC is typically sufficient for powering a Pixhawk flight controller and standard peripherals such as a GPS module, telemetry radio, and RC receiver. However, if you plan to connect additional high-draw 5V devices like powerful servos, digital video systems, or numerous sensors, it's advisable to calculate the total current draw to ensure it remains within the 3A limit or consider a BEC with higher current capacity.

Q3. Does this Mauch BEC also provide current and voltage telemetry data to the flight controller?

Ans. The Mauch 084 HYB-BEC is primarily a dedicated voltage regulator designed to provide a clean and stable 5.3V output. It does not typically integrate current and voltage sensing capabilities for telemetry feedback. For comprehensive battery monitoring (current consumption and overall voltage), this BEC is intended to be used in conjunction with a separate Mauch Current/Voltage Sensor Board (like the HS-series or PL-series power modules that include sensing).
