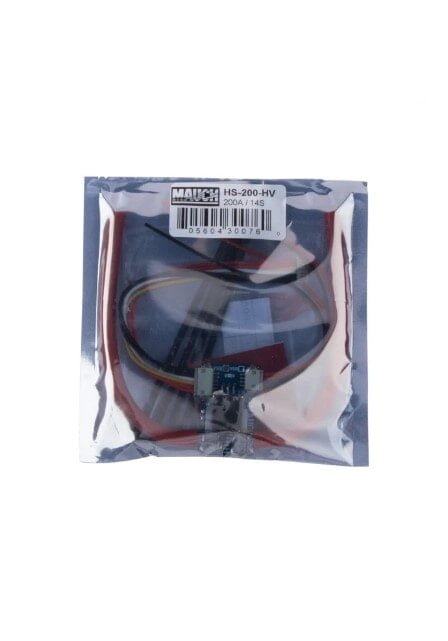

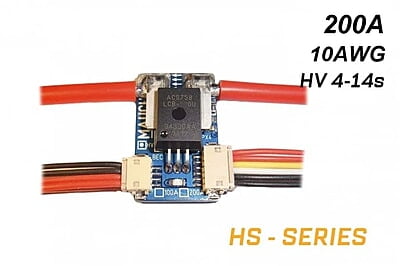

Mauch 076: HS-200-HV Sensor Board / 2x 10cm 10AWG

Features :

• High precision current and voltage sensing.




• Measures up to 200 Amps continuously.




• Supports high voltage batteries (up to 14S).




• Comes with 2x 10cm 10AWG wires.




• Optimized for industrial and heavy-lift drones.




• Provides vital telemetry data to flight controller.




• Essential for accurate battery management.




• Robust design for demanding environments.




• Easy integration into existing power systems.




• Ensures safe and efficient drone operation.

Technical Specifications:

• Model: Mauch 076: HS-200-HV Sensor Board

• Maximum Continuous Current: 200A

• Maximum Voltage Input: Up to 14S LiPo (typically 60V, but check exact specifications as some HV versions support more)

• Output: Analog voltage output for current and voltage.

• Connectivity: Designed to connect to a Mauch Power Module (e.g., PL-xxxx series for data conversion to digital protocols like UAVCAN/I2C/Analog).

• Wires Included: 2x 10cm 10AWG silicone wires (pre-attached to the sensor board)

• Dimensions: (Specific dimensions may vary, but typically compact for integration)

• Weight: (Lightweight for its current rating, but exact weight may vary)

• Calibration: Factory calibrated for high accuracy.

• Application: High-power drone, robotics, and e-mobility applications.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: Current Sensor || Voltage Sensor || Power Sensor || Power Module || Battery Monitor || Telemetry Sensor || Ammeter || Voltmeter || Drone Power Sensor || High Current Sensor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Industrial Drones || Heavy-Lift Drones || Long-Endurance UAVs || Professional Cinematography Drones || VTOL Aircraft || Large Scale RC Models || Custom High-End Drone Builds || Critical Mission UAVs || Advanced Robotics

Package Details:

Includes:

• 1x Mauch 076: HS-200-HV Sensor Board

• 2x 10cm 10AWG Wires (pre-attached)

Frequently Asked Questions:

Q1. Is the Mauch HS-200-HV Sensor Board a standalone current/voltage sensor that can directly connect to any flight controller?

Ans. No, the Mauch HS-200-HV Sensor Board is not a standalone sensor for direct connection to most flight controllers. It's designed to be used in conjunction with a separate Mauch Power Module (like the PL-200, PL-4-14S, or similar). The sensor board measures the raw current and voltage, and the Power Module then converts this analog data into a digital format (e.g., UAVCAN, I2C, or optimized analog) that can be read by a flight controller.

Q2. What are the advantages of using a dedicated high-current sensor like the Mauch HS-200-HV over a basic power module?

Ans. The Mauch HS-200-HV offers significantly higher current capacity (200A) and exceptional accuracy, especially crucial for large, high-power drones with substantial current draws. Unlike basic power modules, Mauch systems are renowned for their low noise, precise calibration, and robust design, providing highly reliable and accurate current and voltage data for critical telemetry, battery management, and performance analysis.

Q3. What kind of drones or applications primarily benefit from the 200A current capacity of this sensor?

Ans. The 200A current capacity of the Mauch HS-200-HV is designed for very demanding applications. This includes heavy-lift agricultural spraying drones, large industrial inspection or delivery UAVs, professional cinema drones carrying heavy camera payloads, and other large multi-rotors or VTOL aircraft that operate with high-power propulsion systems and experience substantial continuous and peak current draws during flight.
