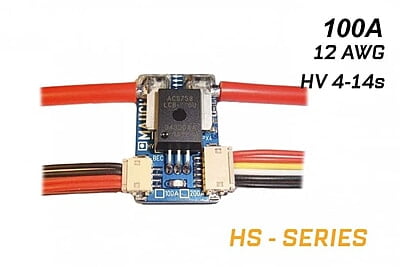

Mauch 074: HS-100-HV Sensor Board / 2x 10cm 12AWG

Features :

• Highly accurate 100A current sensing.




• High voltage (HV) input compatibility.




• Precise battery voltage monitoring.




• Pre-wired with 12AWG input/output cables.




• Essential for drone telemetry data.




• Enhances flight controller awareness.




• Compact and lightweight design.




• Reliable and robust construction.




• Optimizes battery usage analysis.




• Premium Mauch engineering and quality.

Technical Specifications:

• Model: Mauch 074: HS-100-HV Sensor Board

• Current Sensing Capability: Up to 100A (Continuous)

• Voltage Sensing Capability: High Voltage (HV) - Assuming up to 14S LiPo.

• Output: Analog voltage signals for current and voltage (compatible with flight controller ADC inputs).

• Wire Type: 12AWG silicone wires (for battery input and ESC/PDB output).

• Wire Length: 2x 10cm (approx. 3.9 inches)

• Connectivity: Small connector for flight controller (e.g., JST-GH, Molex, depending on Mauch system).

• Dimensions: Compact board size, designed for easy integration.

• Weight: Lightweight.

• Calibration: Factory calibrated for accuracy.

Additional Details:

• Manufacturer: Mauch Electronics

• Brand: Mauch

• Generic Name: Current Sensor || Voltage Sensor || Power Sensor || Battery Monitor || Telemetry Sensor || Drone Sensor || UAV Sensor || Power Module (in sensing context) || Drone Telemetry || High Voltage Sensor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Pixhawk Flight Controllers || CubePilot Flight Controllers || High-Voltage Drone Builds || Industrial Inspection UAVs || Agricultural Spraying Drones || Heavy-Lift Drones || Professional Cinematography UAVs || Long-Endurance Drones || Custom Multi-Rotor UAVs || Fixed-Wing UAVs

Package Details:

Includes:

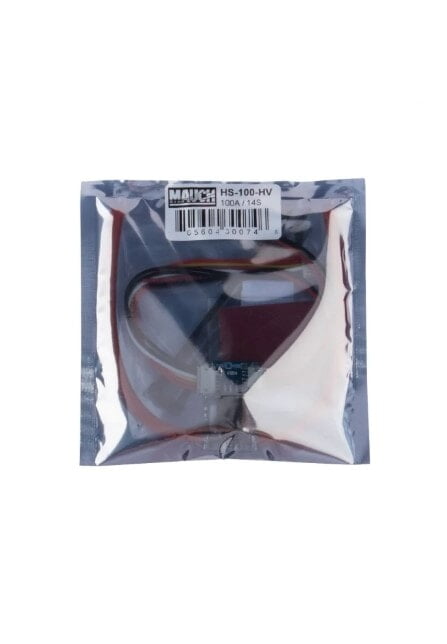

• 1x Mauch 074: HS-100-HV Sensor Board with 2x 10cm 12AWG pre-soldered wires.

Frequently Asked Questions:

Q1. What is the purpose of a "Sensor Board" like the Mauch HS-100-HV in a drone?

Ans. The Mauch HS-100-HV Sensor Board is crucial for providing accurate telemetry data to your drone's flight controller. It precisely measures the battery's real-time current consumption and voltage. This data allows the flight controller to calculate remaining battery capacity, estimate flight time, and trigger low-battery warnings, significantly enhancing flight safety and enabling better power management for your drone.

Q2. How does the "HV" in HS-100-HV benefit high-voltage drone setups?

Ans. The "HV" (High Voltage) designation indicates that the Mauch HS-100-HV sensor board is specifically designed to safely and accurately measure voltage from high-cell-count LiPo batteries, typically ranging up to 14S or more. This is essential for larger, more powerful industrial and heavy-lift drones that rely on high-voltage battery systems for increased efficiency and extended flight times, ensuring their power data is reliably monitored.

Q3. Is the Mauch HS-100-HV a "plug-and-play" solution, or does it require calibration?

Ans. The Mauch HS-100-HV sensor board is typically factory calibrated for high accuracy, meaning it generally does not require manual calibration after installation for basic functionality. However, for the most precise telemetry readings with your specific flight controller and setup, it's always recommended to perform a final calibration (e.g., in ArduPilot or PX4 firmware settings) to account for any minor variations in wiring resistance or flight controller ADC input, ensuring optimal data fidelity.
