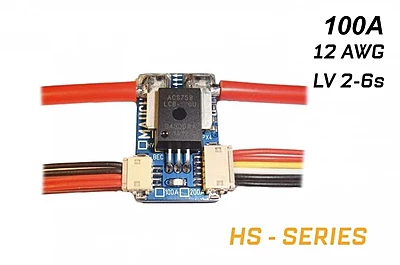

Mauch 073: HS-100-LV Sensor Board / 2x 10cm 12AWG

Features :

• High precision current and voltage sensing.




• Measures up to 100 Amps continuously.




• Designed for low voltage (LV) systems.




• Comes with 2x 10cm 12AWG wires.




• Provides vital telemetry data to flight controller.




• Essential for accurate battery management.




• Compact and lightweight design.




• Robust and durable construction.




• Easy integration into existing power systems.




• Ensures safe and efficient drone operation.

Technical Specifications:

• Model: Mauch 073: HS-100-LV Sensor Board

• Maximum Continuous Current: 100A

• Maximum Voltage Input: Low Voltage (LV) specific. Typically up to 6S LiPo (approx. 25.2V), but check specific Mauch documentation for exact voltage range.

• Output: Analog voltage output for current and voltage.

• Connectivity: Designed to connect to a Mauch Power Module (e.g., PL-xxxx series for data conversion to digital protocols like UAVCAN/I2C/Analog), or flight controllers with compatible ADC inputs.

• Wires Included: 2x 10cm 12AWG silicone wires (pre-attached to the sensor board)

• Dimensions: Specific dimensions may vary, but typically compact

• Weight: Lightweight for its current rating, but exact weight may vary

• Calibration: Factory calibrated for high accuracy.

• Application: Medium to large multi-rotor drones, fixed-wing aircraft, and robotics applications with moderate current draw and low voltage battery systems.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: Current Sensor || Voltage Sensor || Power Sensor || Battery Monitor || Telemetry Sensor || Ammeter || Voltmeter || Drone Power Sensor || Low Voltage Sensor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Medium-sized Quadcopters || Heavy-Lift FPV Drones || Agricultural Drones (smaller) || Industrial Inspection UAVs (smaller) || Professional Drone Builds || Fixed-Wing RC Airplanes || DIY Drone Builds || Robotics Projects || Custom RC Projects || Drone Repair & Replacement

Package Details:

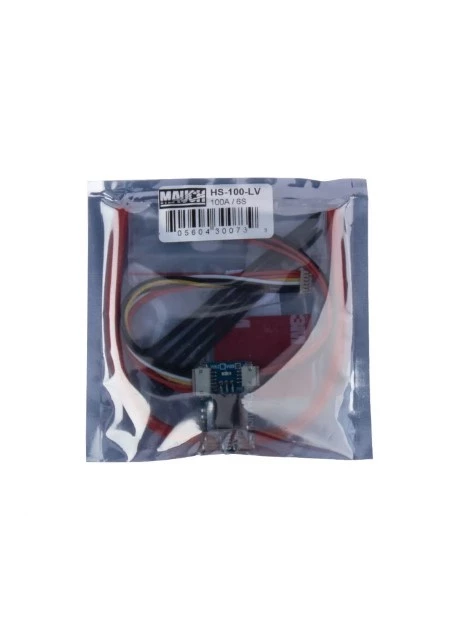

Includes:

• 1x Mauch 073: HS-100-LV Sensor Board

• 2x 10cm 12AWG Wires (pre-attached)

Frequently Asked Questions:

Q1. What is the benefit of using a 100A current sensor like the Mauch HS-100-LV compared to a 50A sensor?

Ans. A 100A current sensor like the Mauch HS-100-LV is essential for drones and robotics that experience higher current draws, typically found in larger, more powerful multirotors or fixed-wing aircraft. While a 50A sensor would max out and potentially give inaccurate readings under higher loads, the 100A sensor provides precise and reliable data across a wider operational current range, critical for accurate flight time estimations and battery health monitoring.

Q2. Is the Mauch HS-100-LV Sensor Board directly compatible with all flight controllers?

Ans. The Mauch HS-100-LV Sensor Board outputs analog voltage signals. While some flight controllers have generic analog-to-digital converter (ADC) inputs that could potentially read these signals, for optimal performance and plug-and-play compatibility with popular autopilots (like Pixhawk, CubePilot), it is highly recommended to pair this sensor board with a dedicated Mauch Power Module (e.g., PL-100 or another compatible PL-xxx series). The Power Module converts the analog data into digital formats (like UAVCAN, I2C, or optimized analog) that flight controllers can easily interpret.

Q3. What kind of low-voltage (LV) battery configurations is this 100A sensor typically designed for?

Ans. The "LV" designation for the Mauch HS-100-LV means it's designed for battery configurations commonly found in medium to large hobbyist and professional drones, generally up to 6S LiPo. This translates to nominal voltages of approximately 7.4V (2S) to 25.2V (6S). It's crucial for users to confirm the specific maximum voltage stated in Mauch's official documentation to ensure compatibility with their battery setup.
