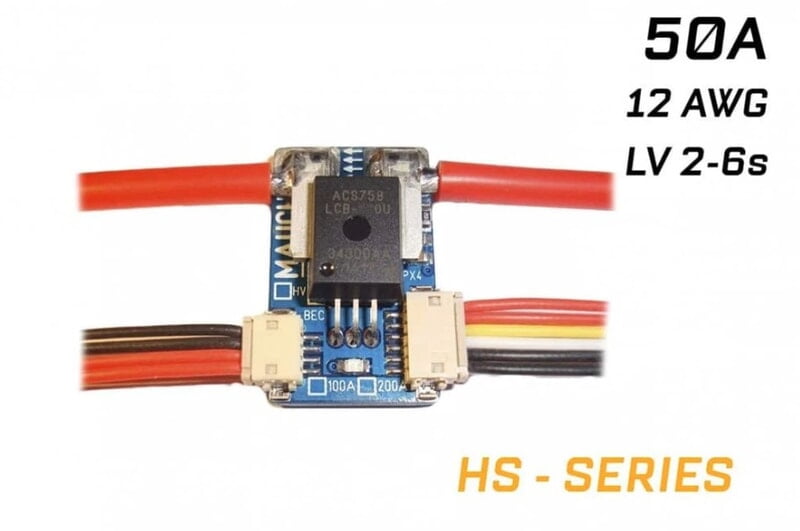

Mauch 071: HS-050-LV Sensor Board / 2x 10cm 12AWG

Features :

• High precision current and voltage sensing.




• Measures up to 50 Amps continuously.




• Designed for low voltage (LV) systems.




• Comes with 2x 10cm 12AWG wires.




• Provides vital telemetry data to flight controller.




• Essential for accurate battery management.




• Compact and lightweight design.




• Robust and durable construction.




• Easy integration into existing power systems.




• Ensures safe and efficient drone operation.

Technical Specifications:

• Model: Mauch 071: HS-050-LV Sensor Board

• Maximum Continuous Current: 50A

• Maximum Voltage Input: Low Voltage (LV) specific. Typically up to 6S LiPo (approx. 25.2V), but check specific Mauch documentation for exact voltage range.

• Output: Analog voltage output for current and voltage.

• Connectivity: Designed to connect to a Mauch Power Module (e.g., PL-xxxx series for data conversion to digital protocols like UAVCAN/I2C/Analog), or flight controllers with compatible ADC inputs.

• Wires Included: 2x 10cm 12AWG silicone wires (pre-attached to the sensor board)

• Dimensions: Specific dimensions may vary, but typically compact

• Weight: Lightweight for its current rating, but exact weight may vary

• Calibration: Factory calibrated for high accuracy.

• Application: Smaller to medium-power drone, robotics, and e-mobility applications.

Additional Details:

• Manufacturer: Mauch Electronics

• Brand: Mauch

• Generic Name: Current Sensor || Voltage Sensor || Power Sensor || Battery Monitor || Telemetry Sensor || Ammeter || Voltmeter || Drone Power Sensor || Low Voltage Sensor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV Racing Drones || Medium-sized Quadcopters || Fixed-Wing RC Airplanes || DIY Drone Builds || Robotics Projects || Hobbyist RC Models || Educational Drones || Custom RC Projects || Drone Repair & Replacement || Light Industrial Drones

Package Details:

Includes:

• 1x Mauch 071: HS-050-LV Sensor Board

• 2x 10cm 12AWG Wires (pre-attached)

Frequently Asked Questions:

Q1. What is the primary difference between the Mauch HS-050-LV and an "HV" (High Voltage) sensor board?

Ans. The primary difference lies in the maximum input voltage they can handle. The Mauch HS-050-LV (Low Voltage) is designed for lower cell count batteries, typically up to 6S LiPo. An "HV" (High Voltage) sensor, such as the HS-200-HV, is built to withstand and accurately measure from much higher voltage battery packs, often up to 14S LiPo or more, making it suitable for larger industrial drones.

Q2. Does the Mauch HS-050-LV Sensor Board connect directly to my flight controller for telemetry?

Ans. The Mauch HS-050-LV Sensor Board outputs analog voltage signals for current and voltage. For most modern flight controllers (like Pixhawk, CubePilot, etc.) that typically expect digital inputs (e.g., UAVCAN, I2C) or a specific analog scaling, this sensor board usually needs to be paired with a compatible Mauch Power Module (e.g., PL-100 or specific PL-xxx series) which processes and converts these analog signals into a format the flight controller can understand.

Q3. Why are pre-attached 12AWG wires important for a 50A current sensor?

Ans. Pre-attached 12AWG wires are crucial for a 50A current sensor because 12AWG is a suitable gauge to safely carry up to 50 Amps of continuous current without excessive heating or voltage drop. Having them pre-attached ensures proper soldering and a secure connection directly to the sensor, simplifying installation for the user and maintaining the integrity of the power path for accurate measurements.
