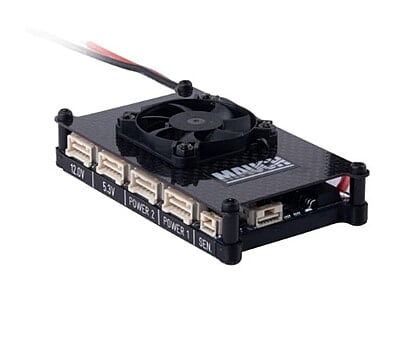

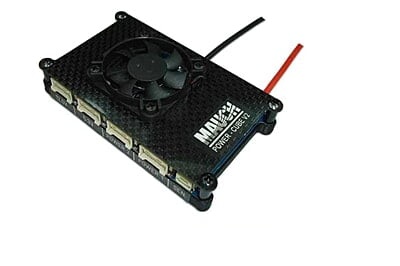

Mauch 054: Power-Cube 4 - V3 / 5.3V / 5.3V / 5.3V / 12V / 10A

Features :

• Quad independent regulated power outputs.

• Three 5.3V outputs for flight controllers.

• One dedicated 12V output for peripherals.

• 10 Amps total continuous output current.

• High efficiency, low noise design.

• Redundant output capability for reliability.

• Designed for high-end industrial UAVs.

• Robust and durable construction.

• Integrated for power distribution.

• Essential for critical systems.

Technical Specifications:

• Model: Mauch 054: Power-Cube 4 - V3

• Input Voltage: Supports up to 14S LiPo (check specific version for exact range, typically 6-60V)

• Output Voltages:

  • Output 1: 5.3V @ (typically 5A max for individual 5.3V rail) - For FC #1 (e.g., Pixhawk)

  • Output 2: 5.3V @ (typically 5A max for individual 5.3V rail) - For FC #2 (e.g., redundant FC) or other 5V peripherals

  • Output 3: 5.3V @ (typically 5A max for individual 5.3V rail) - For RX / GPS / other 5V peripherals

  • Output 4: 12V @ (typically 4A max for 12V rail) - For VTX / Gimbal / Camera / other 12V peripherals

• Total Continuous Output Current: 10A overall maximum, distributed across outputs

• Total Peak Output Current: Typically higher, e.g., 20A for 1 second, but not always specified

• Efficiency: High efficiency switching regulator (>90%)

• Dimensions: Specific dimensions may vary slightly by exact revision, typically compact

• Weight: lightweight for its capability

• Connectors: Input: XT60/XT90 depending on version , Outputs: Standard servo-style connectors, JST-GH, etc.

• Compatibility: Designed to integrate seamlessly with Mauch PMs (Power Modules) like the 200A or 100A versions.

• Features: Overcurrent Protection, Overvoltage Protection, Short-circuit Protection.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: Power Distribution Board || PDB || UBEC || BEC || Voltage Regulator || Power Module || Power Management Unit || Drone Power Hub || Redundant Power Supply || Multi-output BEC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Industrial Drones || Agricultural Drones || Professional Cinematography UAVs || Heavy-Lift Drones || Long-Endurance UAVs || Redundant Flight Controller Setups || Large Scale RC Models || Fixed-Wing UAVs || Custom High-End Drone Builds || Critical Mission UAVs

Package Details:

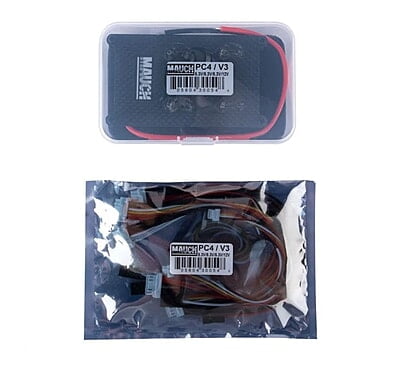

Includes:

• 1x Mauch 054: Power-Cube 4 - V3

• User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What is the primary advantage of the Mauch Power-Cube 4 V3 compared to a standard single-output UBEC?

Ans. The Mauch Power-Cube 4 V3 offers multiple independently regulated outputs (three 5.3V and one 12V) with a high total current capacity (10A continuous). This allows for redundant power to critical components like dual flight controllers and provides dedicated, clean power rails for various peripherals (e.g., VTX, gimbal, camera), significantly increasing the reliability and safety of complex, high-value drone systems.

Q2. Is the Mauch Power-Cube 4 V3 a complete power solution, or does it require other components?

Ans. The Mauch Power-Cube 4 V3 is a highly advanced UBEC/power distribution unit, but it typically works as part of a larger Mauch power system. It usually requires a Mauch Power Module (like a Mauch 100A or 200A PM) to connect directly to the main battery for current sensing and overall power input. It then converts and distributes the power to your various flight electronics.

Q3. What does the "5.3V" output signify, and why is it preferred for flight controllers?

Ans. The 5.3V output is specifically chosen to compensate for any voltage drop that might occur along wiring harnesses, ensuring that your 5V-sensitive flight controller (like a Pixhawk) consistently receives a stable voltage close to its optimal 5.0V. This slightly elevated voltage provides a small buffer, enhancing the reliability and preventing brownouts of critical avionics.
