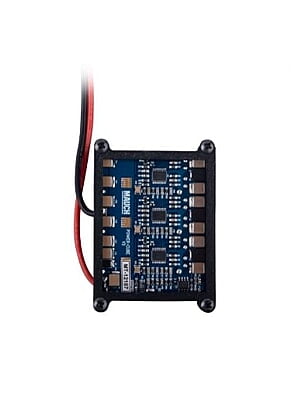

Mauch 053: Power-Cube 3 - V3 / 5.3V / 5.3V / 12V / 10A

Features :

• Triple independent regulated power outputs.




• Two 5.3V outputs for flight controllers.




• One dedicated 12V output for peripherals.




• 10 Amps total continuous output current.




• High efficiency, low noise design.




• Redundant output capability for reliability.




• Designed for high-end industrial UAVs.




• Robust and durable construction.




• Integrated for power distribution.




• Essential for critical systems.

Technical Specifications:

• Model: Mauch 053: Power-Cube 3 - V3

• Input Voltage: Supports up to 14S LiPo (check specific version for exact range, typically 6-60V)

• Output Voltages: Output 1: 5.3V @ (typically 5A max for individual 5.3V rail) - For FC #1 (e.g., Pixhawk) , Output 2: 5.3V @ (typically 5A max for individual 5.3V rail) - For FC #2 (e.g., redundant FC) or other 5V peripherals , Output 3: 12V @ (typically 4A max for 12V rail) - For VTX / Gimbal / Camera / other 12V peripherals

• Total Continuous Output Current: 10A (overall maximum, distributed across outputs)

• Total Peak Output Current: Typically higher, e.g., 20A for 1 second, but not always specified

• Efficiency: High efficiency switching regulator (>90%)

• Dimensions: Specific dimensions may vary slightly by exact revision, typically compact

• Weight: Specific weight may vary slightly, but generally lightweight for its capability

• Connectors: Input: XT60/XT90 depending on version . Outputs: Standard servo-style connectors, JST-GH, etc.

• Compatibility: Designed to integrate seamlessly with Mauch PMs (Power Modules) like the 200A or 100A versions.

• Features: Overcurrent Protection, Overvoltage Protection, Short-circuit Protection.

Additional Details:

• Manufacturer: Mauch Electronics

• Brand: Mauch

• Generic Name: Power Distribution Board || PDB || UBEC || BEC || Voltage Regulator || Power Module || Power Management Unit || Drone Power Hub || Redundant Power Supply || Multi-output BEC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Industrial Drones || Agricultural Drones || Professional Cinematography UAVs || Heavy-Lift Drones || Long-Endurance UAVs || Redundant Flight Controller Setups || Large Scale RC Models || Fixed-Wing UAVs || Custom High-End Drone Builds || Critical Mission UAVs

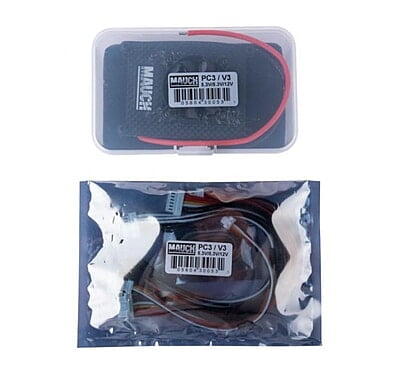

Package Details:

Includes:

• 1x Mauch 053: Power-Cube 3 - V3

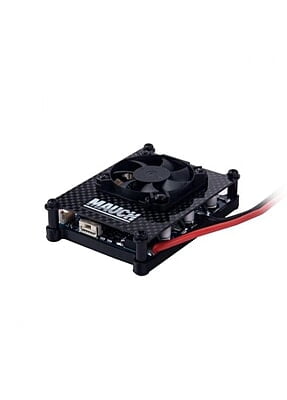

• 1x Power-Cube 3 with CFK enclosure and fan.

• 1x (040) PL sensor cable / L = 150mm

• 1x (060) Power-Cube / Pixhawk 2.1 cable / 2x Clik-Mate-6p / L = 200mm

• 1x (061) Power-Cube / Pixhawk 2.1 Backup / 2x Clik-Mate-6p + 1x JR / L = 200mm

• 1x (063) Power-Cube / 12.0V output cable / 1x C-M-6p + 3x JR / L = 200mm

Frequently Asked Questions:

Q1. How does the Mauch Power-Cube 3 V3 enhance the reliability of a drone's power system?

Ans. The Mauch Power-Cube 3 V3 enhances reliability by providing multiple independent regulated power outputs. The dual 5.3V outputs enable redundant power to primary flight controllers, ensuring that if one path fails, the other can maintain critical flight control. The dedicated 12V output also isolates sensitive peripherals, preventing ripple or noise from affecting core avionics, thus minimizing single points of failure.

Q2. What types of peripherals would typically be powered by the 12V output of the Power-Cube 3 V3?

Ans. The 12V output of the Power-Cube 3 V3 is ideal for powering various 12V peripherals commonly found on professional drones. This includes FPV video transmitters (VTX), high-power LED lights, gimbals, specialized cameras, or other sensors and actuators that require a stable 12V supply, ensuring their optimal performance without drawing power from the flight controller's rail.

Q3. Is this Mauch Power-Cube 3 V3 a standalone component, or does it integrate with other Mauch products?

Ans. The Mauch Power-Cube 3 V3 is a highly advanced UBEC/power distribution unit that is designed to be part of a complete Mauch power system. It typically interfaces with a Mauch Power Module (like the 100A or 200A PM) which handles the main battery connection and current sensing. This integrated approach ensures a cohesive and highly efficient power management solution for demanding UAV applications.
