Mauch 052: Power-Cube 2 - V3 / 5.3V / 5.3V / 10A

Features :

• Dual independent 5.3V regulated outputs.




• Each output delivers robust 10A continuous.




• Provides critical power redundancy.




• Ensures ultra-clean, stable power.




• Designed for demanding drone systems.




• Supports wide input voltage range (implied by Mauch's typical range, e.g., 4-14S).




• Enhances overall system safety.




• Compact and lightweight form factor.




• Ideal for dual flight controller setups.




• Premium Mauch engineering and reliability.

Technical Specifications:

• Model: Mauch 052: Power-Cube 2 - V3

• Output Voltage 1: 5.3V (Regulated)

• Output Current 1: 10A (Continuous)

• Output Voltage 2: 5.3V (Regulated)

• Output Current 2: 10A (Continuous)

• Input Voltage: While not explicitly stated, Mauch Power-Cubes typically support a wide range, often 4S-14S LiPo. - Assuming 4-14S LiPo as common for Power-Cube series.

• Efficiency: High efficiency (typical for switching regulators).

• Type: Likely high-efficiency switching regulators (SMPS) for each independent output, optimized for low noise.

• Connectors: Typically includes standard connectors for input and two independent outputs, e.g., JST-GH or similar for FCs, XT60/XT90 for battery input.

• Dimensions: Compact, cube-like form factor, slightly larger than Power-Cube 1 due to dual outputs.

• Weight: Lightweight, optimized for drone use.

• Protection Features: Over-current protection, thermal shutdown for each output.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: Power Module || BEC || Voltage Regulator || Redundant BEC || Dual Output BEC || Drone Power Supply || 5.3V BEC || High Current BEC || UAV Power || Flight Controller Power

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Dual Flight Controller Setups || Redundant Power Systems || Industrial Inspection Drones || Heavy-Lift Drones || Professional Cinematography UAVs || Critical Mission Drones || Long-Endurance UAVs || Custom High-Voltage Drone Builds || Robotics Platforms with Dual Power Needs || Advanced Drone Research & Development

Package Details:

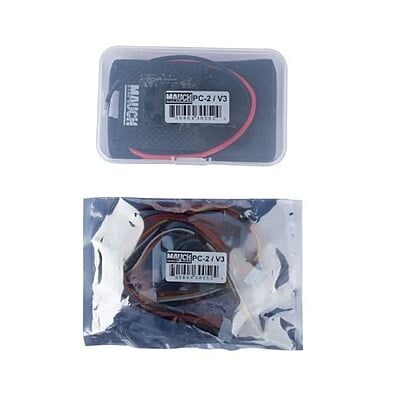

Includes:

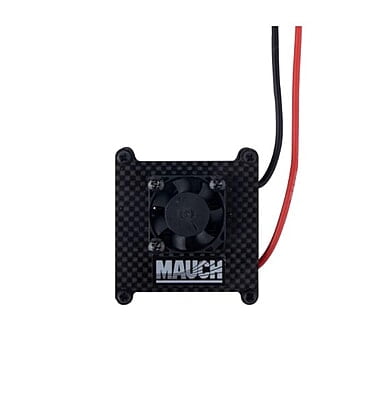

• 1x Power-Cube 2 with CFK enclosure and fan.

• 1x (040) PL sensor cable / L = 150mm

• 1X (060) Power-Cube / Pixhawk 2.1 cable / 2x Clik-Mate-6p / L = 200mm

• 1x (061) Power-Cube / Pixhawk 2.1 Backup / 2x Clik-Mate-6p + 1x JR / L = 200mm

Frequently Asked Questions:

Q1. What is the primary benefit of the "Dual 5.3V" outputs on the Mauch Power-Cube 2 V3?

Ans. The primary benefit of the dual 5.3V outputs on the Mauch Power-Cube 2 V3 is to enable full power redundancy for critical drone components, especially flight controllers. Each 5.3V output can supply up to 10A, allowing you to power two independent flight controllers (e.g., primary and secondary Pixhawk) or provide redundant power to a single flight controller that supports dual power inputs. This significantly enhances safety and reliability by ensuring uninterrupted power even if one path fails.

Q2. Can the two 5.3V outputs be used to power different components simultaneously?

Ans. Yes, absolutely. While commonly used for redundant flight controller power, the two independent 5.3V outputs, each capable of 10A, can also be used to power different sets of components simultaneously. For example, one output can power the flight controller and essential sensors, while the second output powers high-draw 5V peripherals like powerful GPS modules, digital FPV systems, or multiple servos, ensuring clean and sufficient power to all critical systems.

Q3. Is the Mauch Power-Cube 2 V3 a power module that also senses current and voltage for telemetry?

Ans. The Mauch Power-Cube 2 V3 is fundamentally a highly efficient power regulator (a sophisticated BEC) designed to provide stable 5.3V outputs. It typically does not include integrated current and voltage sensing capabilities for telemetry feedback to the flight controller. For comprehensive battery monitoring (current consumption and overall voltage), it is intended to be paired with a separate Mauch Current/Voltage Sensor (such as the Mauch HS series or PL series power modules that include sensing).
