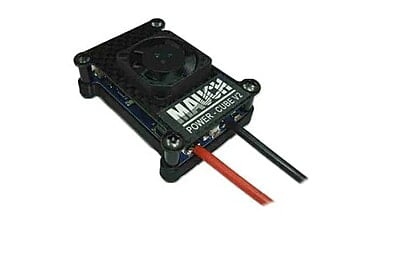

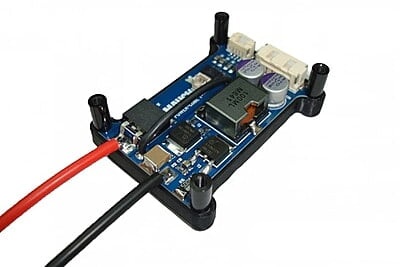

Mauch 051: Power-Cube 1 - V3 / 5.3V-10A

Features :

• High-efficiency 5.3V regulated output.




• Delivers robust 10A continuous current.




• Designed for demanding drone systems.




• Ensures clean, stable power delivery.




• Minimizes heat generation.




• Maximizes overall system efficiency.




• Compact and lightweight form factor.




• Ideal for flight controllers and peripherals.




• Supports wide input voltage range (implied by Mauch's typical range, e.g., 4-14S).




• Premium Mauch engineering and reliability.

Technical Specifications:

• Model: Mauch 051: Power-Cube 1 - V3

• Output Voltage: 5.3V (Regulated)

• Output Current: 10A (Continuous)

• Input Voltage: While not explicitly stated, Mauch Power-Cubes typically support a wide range, often 4S-14S LiPo. - Assuming 4-14S LiPo as common for Power-Cube series.

• Efficiency: High efficiency (typical for switching regulators).

• Type: Likely a high-efficiency switching regulator (SMPS) design optimized for low noise.

• Connectors: Typically includes standard connectors for input and output, e.g., JST-GH or similar for FC, XT60/XT90 for battery input.

• Dimensions: Compact, cube-like form factor, hence "Power-Cube" name.

• Weight: Lightweight, optimized for drone use.

• Protection Features: Over-current protection, thermal shutdown.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: Power Module || BEC || Voltage Regulator || DC-DC Converter || Drone Power Supply || 5.3V BEC || High Current BEC || UAV Power || Flight Controller Power || High Efficiency BEC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Pixhawk Flight Controllers || CubePilot Flight Controllers || High-Power Peripheral Supply || Custom Drone Builds || Industrial Inspection UAVs || Heavy-Lift Drones || Professional Cinematography UAVs || Long-Endurance Drones || Robotics Platforms || Any Application Needing High-Capacity Regulated 5.3V

Package Details:

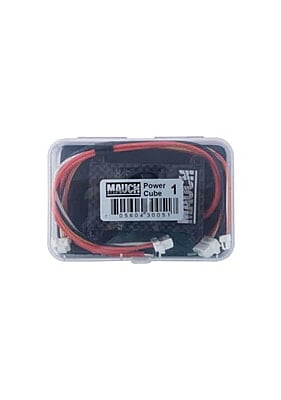

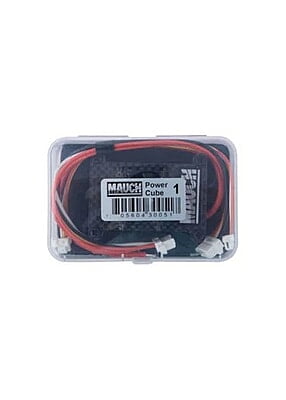

Includes:

• 1x Power-Cube 1 with CFK enclosure and fan.

• 1x (040) PL sensor cable / L = 150mm

• 1X (060) Power-Cube / Pixhawk 2.1 cable / 2x Clik-Mate-6p / L = 200mm

Frequently Asked Questions:

Q1. What is the primary purpose of the Mauch Power-Cube 1 V3 with a 5.3V-10A output?

Ans. The primary purpose of the Mauch Power-Cube 1 V3 is to provide a highly stable, clean, and robust 5.3V power supply with a substantial 10A current capacity for critical drone components. This makes it ideal for reliably powering advanced flight controllers like Pixhawk, multiple high-draw peripherals (e.g., GPS modules, telemetry radios, servos), and ensuring stable operation even under peak loads.

Q2. How does the "10A" current output rating benefit a drone system compared to standard BECs?

Ans. A 10A current output rating offers significant benefits over standard BECs (which often provide 2-3A) by ensuring ample power for modern, feature-rich drone systems. It can simultaneously supply power to the flight controller, GPS, radio receiver, and potentially small servos or other 5V accessories without experiencing voltage drops or power brownouts, which are crucial for maintaining flight stability and system reliability, especially in professional UAVs.

Q3. Is the Mauch Power-Cube 1 V3 a "Power Module" that also senses current and voltage for telemetry?

Ans. The Mauch Power-Cube 1 V3 is primarily a highly efficient power regulator (a sophisticated BEC) that converts higher battery voltage to a stable 5.3V at 10A. It typically does not include integrated current and voltage sensing capabilities for telemetry feedback to the flight controller. For full battery monitoring (current consumption and overall voltage), it is designed to be used in conjunction with a separate Mauch Current/Voltage Sensor (like the Mauch HS series or PL series power modules that include sensing).
