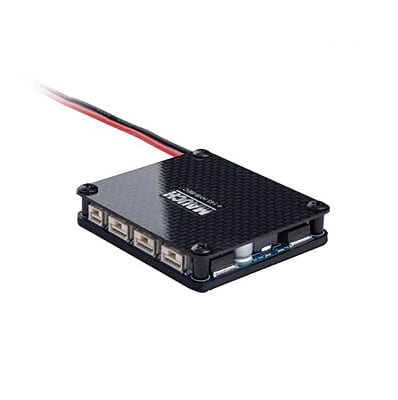

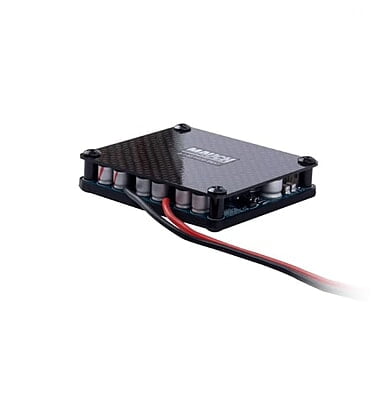

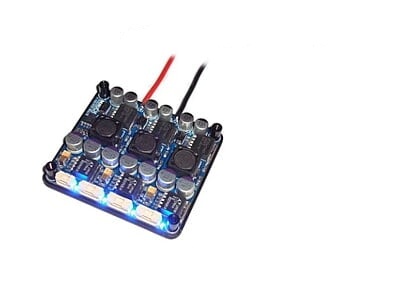

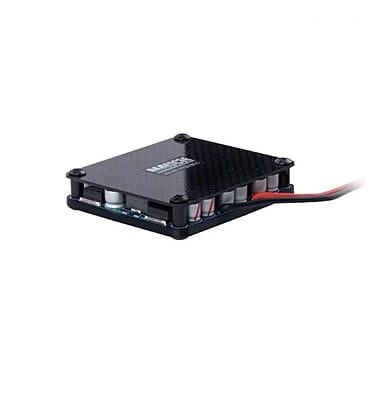

Mauch 024: PL 4-14S HYB-BEC / 2x5.3V + 1x12.0V

Features :

• Triple independent regulated power outputs.




• Supports wide 4S to 14S LiPo input.




• Hybrid BEC for superior power quality.




• Two dedicated 5.3V outputs for FCs.




• One powerful 12.0V output for peripherals.




• High efficiency and low noise operation.




• Enhances overall system reliability.




• Ideal for professional, complex drone builds.




• Provides redundant FC power.




• Premium Mauch quality and precision.

Technical Specifications:

• Model: Mauch 024: PL 4-14S HYB-BEC

• Input Voltage: 4S to 14S LiPo (approximately 14.8V to 58.8V)

• Output Voltages & Current Total Combined Current - Typical outputs for such a BEC often sum to 5-10A total.):

  • Output 1: 5.3V @ (e.g., 3A) - For Flight Controller #1 (e.g., Pixhawk primary)

  • Output 2: 5.3V @ (e.g., 3A) - For Flight Controller #2 (e.g., Pixhawk secondary) or other 5.3V devices

  • Output 3: 12.0V @ (e.g., 2A) - For 12V peripherals (e.g., VTX, camera, gimbal)

• Total Continuous Output Current: Sum of individual rail capacities, e.g., 5-10A total

• Type: Hybrid BEC (HYB-BEC), combining advantages of switching and linear regulation for clean power.

• Connectors: Multiple output connectors (typically JST-GH or similar for FCs, servo-style for peripherals). Input connection for battery.

• Efficiency: High efficiency switching and linear regulation.

• Dimensions: 59mm x 66mm x 13mm

• Weight: 57g with enclosure(without cables) Lightweight for its multi-output capabilities

• Protection Features: Overcurrent protection, short-circuit protection.

• Compatibility: Designed for high-voltage industrial and professional UAV systems.

Additional Details:

• Manufacturer: Mauch Electronics

• Brand: Mauch

• Generic Name: Power Module || BEC || Voltage Regulator || Multi-Output BEC || Hybrid BEC || Drone Power Supply || High Voltage BEC || UAV Power Management || Redundant Power Supply || Triple Output BEC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Industrial Inspection Drones || Agricultural Spraying Drones || Heavy-Lift Drones || Professional Cinematography UAVs || Long-Endurance Drones || Custom High-Voltage Drone Builds || Redundant Flight Controller Setups || Large Fixed-Wing UAVs || Critical Mission Drones || Robotics Platforms with HV Systems

Package Details:

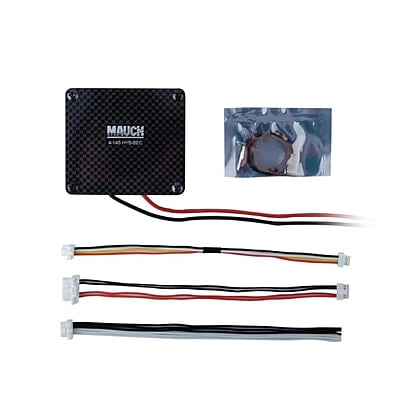

Includes:

• 1x 024: PL 4-14S HYB-BEC / 2x 5.3V / 1x 12.0V

• 1x 040: PL - Series sensor cable / L=150mm

• 1x 050: Backup cable for Pixhawk 2.1 / L=150mm

• 1x 5.0V output cable (white/black) one site Molex Clik-Mate 1.25mm-6p, the other site open. / L = 150mm

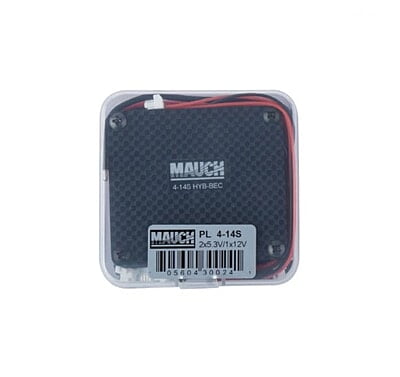

• 1x Enclosure

Frequently Asked Questions:

Q1. What is the benefit of having two 5.3V outputs on the Mauch PL-024 HYB-BEC?

Ans. The two 5.3V outputs are specifically designed to enable power redundancy for critical flight controllers, such as the Pixhawk series. By connecting one 5.3V output to the primary power input and the second to a backup power input, the drone gains a crucial layer of safety. This ensures continuous power to the autopilot even if the primary path fails, preventing loss of control and enhancing mission reliability.

Q2. How does the 12.0V output on this BEC benefit drone builds?

Ans. The dedicated 12.0V output is highly beneficial for powering various drone peripherals that require higher voltage, such as FPV video transmitters (VTX), cameras, gimbal systems, and certain LED lighting systems. By providing a clean, regulated 12.0V directly from the BEC, it simplifies wiring and ensures these components receive stable power, avoiding interference or performance issues that can arise from unregulated battery voltage or step-down converters.

Q3. Is the Mauch PL-024 HYB-BEC also a power module that senses current and voltage from the battery?

Ans. The Mauch PL-024 HYB-BEC is primarily a high-quality voltage regulator with multiple outputs for power distribution. While it processes battery voltage to produce regulated outputs, it typically does not include integrated current and voltage sensing for telemetry data. For comprehensive battery monitoring (current consumption, voltage, remaining capacity), this module is usually designed to be paired with a separate Mauch Current/Voltage Sensor Board (like the HS-series or PL-series Power Modules with integrated sensors, e.g., PL-100/200A), which then communicates data to the flight controller.
