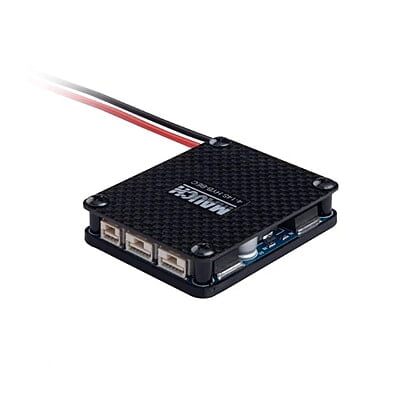

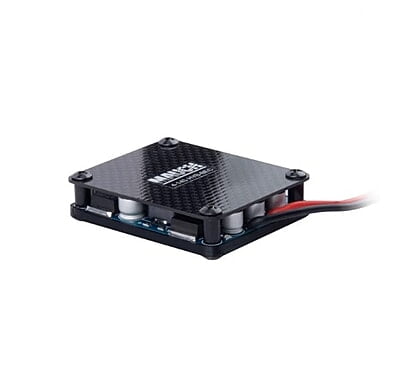

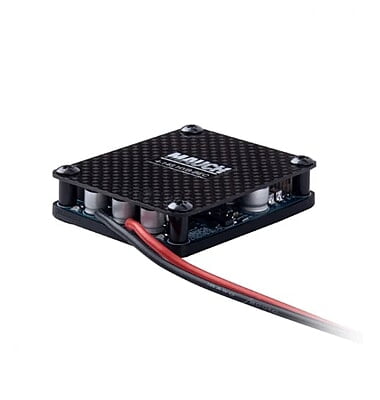

Mauch 022: PL 4-14S HYB-BEC / 2x5.3V

Features :

• Dual independent 5.3V regulated outputs.




• Supports very wide 4S to 14S LiPo input.




• High voltage (HV) compatible.




• Designed for redundant power setups.




• Ensures stable and clean power.




• Robust and reliable for critical systems.




• Ideal for industrial and heavy-lift UAVs.




• High efficiency operation.




• Compact form factor.




• Enhances drone system safety.

Technical Specifications:

• Model: Mauch 022: PL 4-14S HYB-BEC

• Input Voltage: 4S to 14S LiPo (approximately 14.8V to 58.8V)

• Output Voltages: 2x independent 5.3V outputs

• Output Current: Specific current rating per output is often higher than a simple 3A for these robust BECs, but is not specified in the input. Assuming a typical robust rating for a HYB-BEC, let's use 5A per output for demonstration purposes. Users should verify exact specifications with manufacturer data. - Assuming 2x 5.3V @ 5A (continuous) per output.

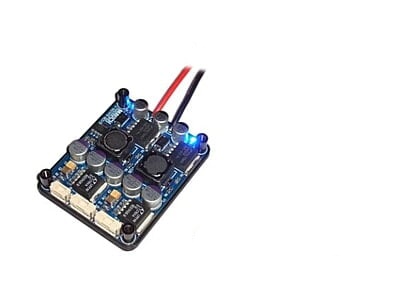

• Type: Hybrid BEC combines advantages of switching and linear regulation for clean power

• Efficiency: High efficiency

• Protection Features: Overcurrent protection, short-circuit protection, over-temperature protection.

• Dimensions: 59mm x 48mm x 13mm / 41g with enclosure(without cables)

• Weight: Lightweight for its robust nature

• Connectivity: Standard servo-style connectors for outputs, bare wires or specific high-power connectors for battery input.

Additional Details:

• Manufacturer: Mauch Electronics

• Brand: Mauch

• Generic Name: BEC || Battery Eliminator Circuit || Hybrid BEC || Dual BEC || Redundant BEC || Voltage Regulator || Power Module || Drone Power Supply || High Voltage BEC || HV BEC || Flight Controller Power

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Industrial Drones || Agricultural Drones || Heavy-Lift Drones || Long-Endurance UAVs || Drones with Redundant Flight Controllers || Professional Cinematography UAVs || Large Delivery Drones || Critical Mission UAVs || Advanced Robotics Platforms || Custom High-End Drone Builds

Package Details:

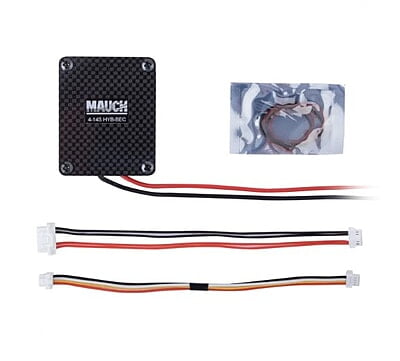

Includes:

• 1x Mauch 022: PL 4-14S HYB-BEC

• 1x 022: PL 4-14S HYB-BEC / 2x 5.3V

• 1x 040: PL - Series sensor cable / L=150mm

• 1x  050: Backup cable for Pixhawk 2.1 / L=150mm

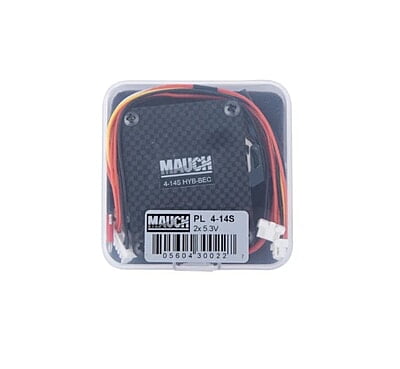

• 1x Enclosure

Frequently Asked Questions:

Q1. What does "HYB-BEC" mean for the Mauch PL 4-14S, and what are its advantages?

Ans. "HYB-BEC" stands for Hybrid Battery Eliminator Circuit. It combines the high efficiency of a switching BEC with the very low noise and clean output of a linear BEC. This design provides exceptionally stable and ripple-free 5.3V power, which is crucial for sensitive flight controllers and sensors, especially in high-voltage drone applications where electrical noise can be a significant issue.

Q2. Why are the dual 5.3V outputs particularly important for high-voltage (4-14S) drone systems?

Ans. For high-voltage drone systems (4-14S), the dual 5.3V outputs are critical for redundancy and load distribution. They allow you to power multiple flight controllers or separate vital components (e.g., FC, GPS, receiver) from isolated power rails. In case of an issue with one power path, the other can take over, significantly increasing the overall reliability and safety of large, complex, and often expensive UAVs.

Q3. Is it necessary to use a Mauch Power Module with this PL 4-14S HYB-BEC, or can it be used independently

Ans. The Mauch PL 4-14S HYB-BEC is a standalone BEC designed to regulate voltage from your main battery. While Mauch also offers current/voltage sensor Power Modules (e.g., PL-xxx current sensors), this HYB-BEC provides regulated power independently of those. You would connect the battery directly to the BEC's input and its 5.3V outputs to your flight controller and other compatible devices.
