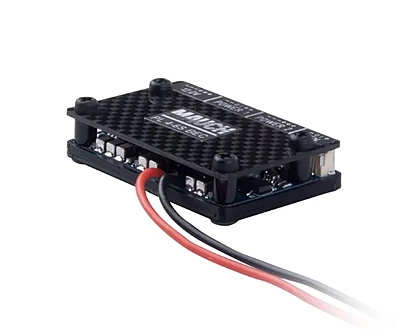

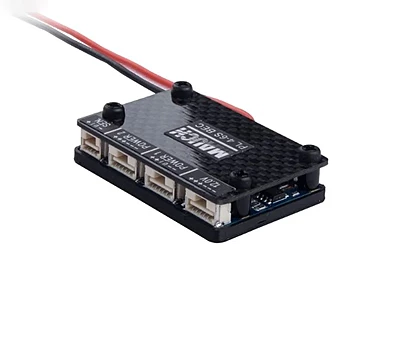

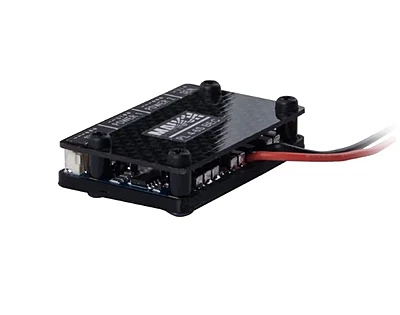

Mauch 017: PL 4-6S BEC / 2x 5.3V-3A + 1x 12V-3A / With CFK Enclosue
015:PL2-6S/ 1x: 016:PL2-6S/2x: 017:PL4-6S/3x
ThenewPL-SeriesBEC'sareanimproveddesignfromtheHS2-6SBEC,withthefollowingchanges:
· The BEC power supply no longer passes through the sensor board and connects directly to the flightcontroller.
· Brightblue "poweron" LED.
· Connectionport for PL-xxxsensor boardor PL- SensorHub X2/X8 with5.0V / 0.5A
· Externalconnections viaMolex Clik-Mate/ 1.25mmconnectors. (50238)
· TheBEC measuresthe outputcurrent andincreases theoutput voltageby afew millivoltsdepending on the output load. This compensates for the voltage drop in the connection from BEC to FC and tothe receiver. Tokeep thevoltage morestable.
· Deliveryinclusive ABSbase andCFK cover.
Scopeofdelivery:
015:PL2-6S/1x:
1xPL-2-6SBEC1x5.3V/3A
1xCFKenclosure
1xSensorcable(040)MolexClik-Mate4p /L=150mm
016:PL2-6S/2x:
1xPL-2-6SBEC2x5.3V/3A
1xCFKenclosure
1xSensorcable(040)MolexClik-Mate4p /L=150mm
1xBackupcable(050)forPixhawk2.1/MolexClik-Mate2.0-6p/L=150mm

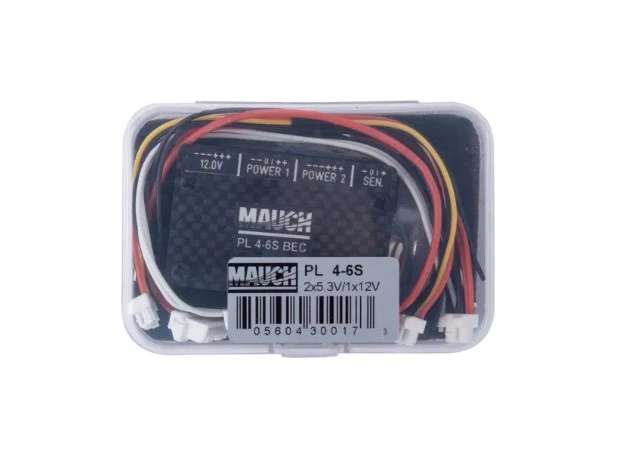

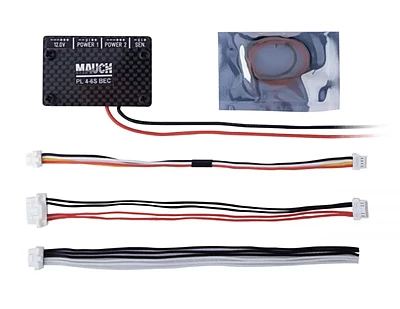

017:PL4-6S/3x:
1xPL-4-6SBEC2x5.3V/3A+1x12.0V/3A
1xCFKenclosure
1xSensorcable(040)MolexClik-Mate4p /L=150mm
1xBackupcable(050)forPixhawk2.1/MolexClik-Mate2.0-6p/L=150mm
1x12.0VoutputcableonesiteMolexClik-Mate1.25mm-4p,theothersiteopen./L=150mm
ThePL-BEC'saredelivered withoutFCcable,sopleasepurchasethecorrectcabletomatchyoursetup:041:DF13-6p->Pixhawk1/APM...etc.
042:MolexClik-Mate2.0-6p->Pixhawk2.1
043:JST-GH-6p->Pixhawk3...etc.
Installation:
Pleaseconnecttheminus(black)wireofthePL-BECascloseaspossibletothemainbattery,asheisthegroundreferenceforthevoltagemeasurement.Thepositivewire(red)canbeconnectedto thePDB.
ThePL-BEC'scanbescreweddowntothemainframe,byremovingthe4bottomM3screwsanddrillingholesinto theframe. Thenreinstallthescrewsthroughtheframe.
PL2-6S/1x:36mmx24mmx10mm
