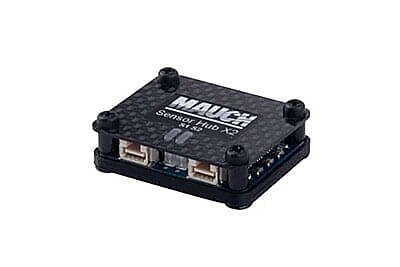

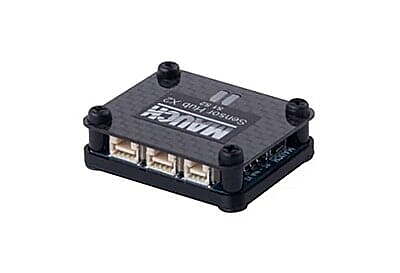

Mauch 010: PL - Sensor Hub X2 / With CFK Enclosue

Features :

• Connects two Mauch sensors to one FC.




• Durable Carbon Fiber Composite (CFK) enclosure.




• Enables redundant power monitoring.




• Combines data from multiple battery packs.




• Enhances flight controller telemetry.




• Compact and lightweight design.




• Improves overall system reliability.




• Simple and secure connection.




• Premium Mauch engineering and quality.




• Essential for advanced drone power setups.

Technical Specifications:

• Model: Mauch 010: PL - Sensor Hub X2

• Inputs: 2x Ports for Mauch PL-series Current/Voltage Sensors (e.g., PL-100, PL-200, etc.)

• Output: 1x Port for connection to Flight Controller Power Module input (typically a 6-pin DF13 or similar for Pixhawk).

• Functionality: Combines or switches (depending on mode/firmware, typically combines analog signals) data from two current/voltage sensors to a single FC input.

• Enclosure Material: CFK (Carbon Fiber Composite)

• Dimensions: 55 x 55 x 20mm

• Weight: 27g Very lightweight.

• Power: Draws minimal power from the flight controller or connected sensor.

• Compatibility: Specifically designed for use with Mauch PL-series current/voltage sensors and Pixhawk/CubePilot flight controllers or other autopilots with compatible analog power module inputs.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: Sensor Hub || Power Module Hub || Current Sensor Splitter || Voltage Sensor Combiner || Drone Sensor Adapter || UAV Telemetry Hub || Dual Sensor Input || Power Management Accessory || Drone Electronics Hub || Carbon Fiber Hub

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Dual Battery Drone Setups || Redundant Power Monitoring Systems || Heavy-Lift Drones || Industrial Inspection UAVs || Long-Endurance Drones || Professional Cinematography UAVs || Custom Drone Builds with Multiple Power Sources || Advanced Drone Research & Development || Pixhawk-based Systems || Any Drone Requiring Enhanced Power Telemetry

Package Details:

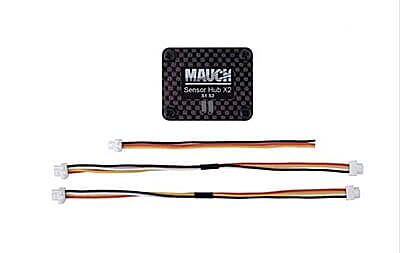

Includes:

• 1x PL Sensor Hub X2

• 1x CFK enclosure

• 2x Sensor cable / Molex 1.25mm - 4p / L = 150mm

• 1x Alarm output cable / Molex 1.25mm - 3p / L = 100mm

Frequently Asked Questions:

Q1. What is the main purpose of the Mauch PL-Sensor Hub X2?

Ans. The main purpose of the Mauch PL-Sensor Hub X2 is to allow a flight controller with a single power module input (like a Pixhawk) to receive telemetry data from two separate Mauch PL-series current and voltage sensors. This is crucial for drone setups using dual battery packs, or for providing redundant current/voltage monitoring, significantly enhancing power management accuracy and system reliability.

Q2. How does the PL-Sensor Hub X2 handle data from two sensors? Does it average them?

Ans. The Mauch PL-Sensor Hub X2 typically combines the analog voltage signals from two connected Mauch sensors (e.g., one from each battery pack) before sending them to the flight controller. For current, it sums the individual current readings. For voltage, it might take an average or select the higher/lower voltage, depending on internal logic. This combined data then allows the flight controller to get an accurate overall picture of the drone's total power consumption and voltage.

Q3. Is the CFK enclosure on the Sensor Hub X2 purely for aesthetics, or does it serve a functional purpose?

Ans. The CFK (Carbon Fiber Composite) enclosure on the Mauch PL-Sensor Hub X2 serves a significant functional purpose beyond aesthetics. Carbon fiber is lightweight yet extremely durable, providing excellent physical protection for the sensitive electronics inside against impacts and vibrations. Crucially, it also offers shielding against electromagnetic interference (EMI) that can be prevalent in drone power systems, ensuring the integrity and accuracy of the telemetry signals passed through the hub.
