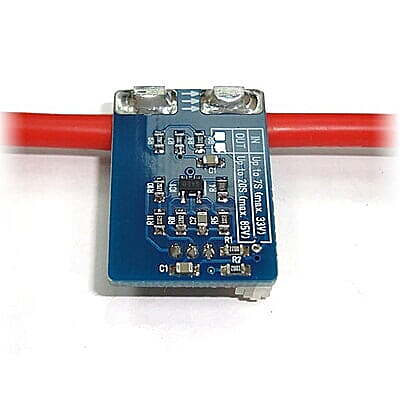

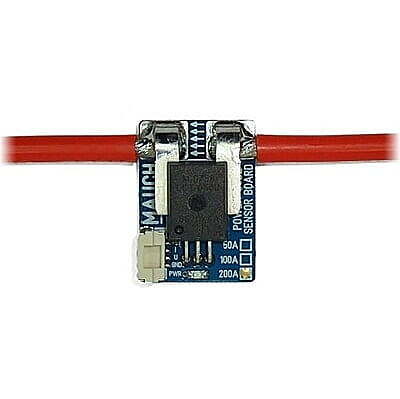

Mauch 004: PL-200/8 Sensor Board with CFK enclosure

Features :

• Exceptionally accurate 200A current sensing.




• Supports up to 8S LiPo voltage monitoring.




• Durable Carbon Fiber Composite (CFK) enclosure.




• Protects sensor from harsh environments.




• Essential for high-power drone telemetry.




• Enhances flight controller awareness.




• Compact and lightweight design.




• Robust and reliable construction.




• Optimizes battery usage analysis.




• Premium Mauch engineering and quality.

Technical Specifications:

• Model: Mauch 004: PL-200/8 Sensor Board

• Current Sensing Capability: Up to 200A (Continuous)

• Voltage Sensing Capability: Up to 8S LiPo (approximately 33.6V )

• Output: Analog voltage signals for current and voltage (compatible with flight controller ADC inputs).

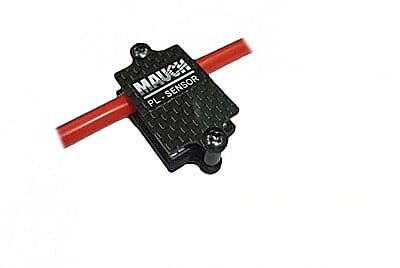

• Enclosure Material: CFK (Carbon Fiber Composite)

• Connectivity: Typically includes standard connectors for input/output to battery and flight controller, e.g., bare wires for battery and JST-GH or similar for FC.

• Dimensions: 55 x 55 x 20mm

• Weight: 60g Lightweight, considering the enclosure.

• Calibration: Factory calibrated for accuracy.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: Current Sensor || Voltage Sensor || Power Sensor || Battery Monitor || Telemetry Sensor || Drone Sensor || UAV Sensor || Power Module (in sensing context) || Carbon Fiber Sensor || High Current Sensor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Heavy-Lift Drones || Industrial Inspection UAVs || Agricultural Spraying Drones || Custom High-Power Multi-Rotors || Professional Cinematography UAVs || Long-Endurance Drones (within 8S limit) || Fixed-Wing UAVs || Drone Research & Development || Critical Mission Drones || Any Drone Requiring High-Accuracy Telemetry

Package Details:

Includes:

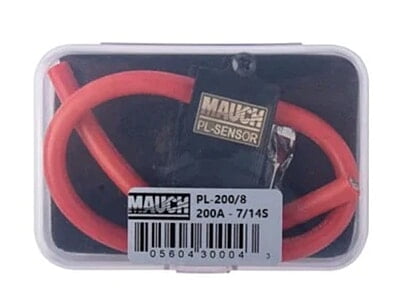

• 1x Mauch 004: PL-200/8 Sensor Board with CFK enclosure

Frequently Asked Questions:

Q1. What does "PL-200/8" signify for this Mauch sensor board?

Ans. The "PL-200/8" in the Mauch sensor board's name indicates two key specifications: "200" refers to its capability to accurately sense continuous current up to 200 Amperes, making it suitable for very high-power drone systems. The "/8" signifies its voltage sensing capability, typically meaning it's designed for batteries up to 8S (8-cell LiPo) configurations, ensuring accurate voltage monitoring within that range.

Q2. How does the CFK enclosure benefit the sensor's performance in a drone?

Ans. The CFK (Carbon Fiber Composite) enclosure on the Mauch sensor board significantly enhances its durability and performance in a drone. Carbon fiber provides excellent physical protection against impacts, vibrations, and also acts as an effective shield against electromagnetic interference (EMI). This robust housing ensures the sensitive sensing electronics remain undisturbed and highly accurate, even in noisy electrical environments common in high-power UAVs.

Q3. Is the Mauch PL-200/8 Sensor Board compatible with both analog and digital flight controller inputs?

Ans. The Mauch PL-200/8 Sensor Board, like most Mauch PL-series sensors, typically provides analog voltage outputs for current and voltage. This makes it compatible with flight controllers that have analog-to-digital converter (ADC) inputs designated for power modules, such as most Pixhawk and CubePilot models. It is not inherently designed for digital communication protocols like UAVCAN or I2C unless specifically stated in its full technical specifications.
