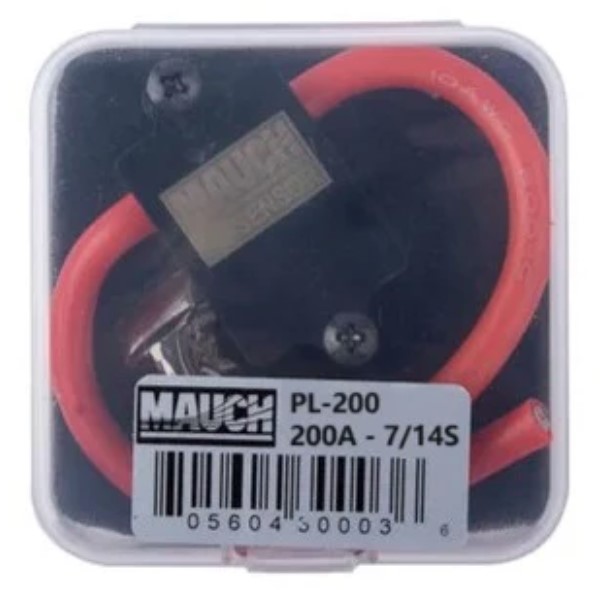

Mauch 003: PL-200 Sensor Board with CFK enclosure

Features :

• Precise 200A current measurement.




• Accurate voltage telemetry.




• Supports up to 14S (60V) LiPo.




• Durable Carbon Fiber Composite (CFK) enclosure.




• Based on Allegro Hall Sensor.




• Optimized for full analog input range.




• Minimizes voltage drop errors.




• Direct connection to Mauch BECs.




• Compact and lightweight design.




• Enhances power system reliability.

Technical Specifications:

• Model: Mauch 003: PL-200 Sensor Board

• Current Measurement: Up to 200A (based on Allegro Hall Sensor ACS770-250U or ACS758-200U)

• Voltage Measurement: Up to 14S (60V) with solder bridge open , Up to 7S (30V) with solder bridge closed

• Output: Analog voltage signals for current and voltage.

• Connector Type: Molex / Clik-Mate / 1.25mm / 4-pin (5023800400)

• Wiring: Includes 2x 10cm AWG10 red wires as standard.

• Accuracy: Current measurement accuracy typically ±0.5%

• Power Supply Requirement: Requires a stable 4.95V-5.05V input from a BEC (Mauch Premium-Line BEC or other compatible BEC)

• Enclosure Material: CFK (Carbon Fiber Composite)

• Dimensions (With CFK enclosure): 43.5mm x 23.0mm x 15mm

• Weight (With CFK enclosure and 10cm 10AWG wires): 22g

• Compatibility: Designed to connect directly to Mauch Premium-Line BECs or Sensor Hub X2-V2.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: Current Sensor || Voltage Sensor || Power Sensor Board || Drone Power Module || UAV Telemetry Sensor || Battery Monitor || Hall Effect Sensor || Ammeter || Voltmeter || Drone Electronics

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: High-Power Drones || Multirotor UAVs || Fixed-Wing Drones || Robotics Projects || Custom Drone Builds || Pixhawk Flight Controller Systems || CubePilot Flight Controller Systems || Industrial Inspection Drones || Heavy-Lift Drones || Any System Requiring Accurate Current/Voltage Telemetry

Package Details:

Includes:

• 1x Mauch 003: PL-200 Sensor Board with CFK enclosure

Frequently Asked Questions:

Q1. What is the primary function of the Mauch PL-200 Sensor Board?

Ans. The primary function of the Mauch PL-200 Sensor Board is to accurately measure both the current consumption and battery voltage of a drone or other electronic system. This data is then sent to a flight controller (like Pixhawk) or other logging device, providing critical telemetry for real-time monitoring of battery status, calculating remaining flight time, and optimizing power usage during operation.

Q2. How do I change the voltage measurement range on the PL-200 sensor board?

Ans. The Mauch PL-200 Sensor Board features a solder bridge that allows you to select the voltage measurement range. By default, with the solder bridge open, it supports up to 14S LiPo (60V). If the solder bridge is closed, the board is configured for lower voltage systems, typically up to 7S (30V). Always refer to the Mauch user manual for precise instructions and verify the correct configuration for your battery setup.

Q3. Why is the CFK (Carbon Fiber Composite) enclosure important for this sensor board?

Ans. The CFK (Carbon Fiber Composite) enclosure provides crucial protection and durability for the sensitive electronics of the Mauch PL-200 Sensor Board. Carbon fiber is known for being extremely lightweight yet incredibly strong, offering excellent resistance to impacts, vibrations, and electromagnetic interference (EMI) commonly found in drone environments. This robust housing helps ensure the longevity and reliable performance of the sensor in demanding applications.
