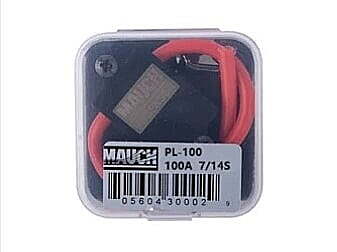

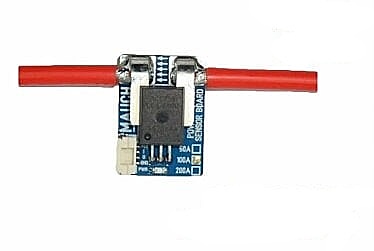

Mauch 002: PL-100 Sensor Board with CFK enclosure

Features :

• Highly accurate 100A current sensing.




• Precise battery voltage monitoring.




• Durable Carbon Fiber Composite (CFK) enclosure.




• Protects sensor from environmental elements.




• Essential for drone telemetry data.




• Enhances flight controller awareness.




• Compact and lightweight design.




• Reliable and robust construction.




• Optimizes battery usage analysis.




• Premium Mauch engineering and quality.

Technical Specifications:

• Model: Mauch 002: PL-100 Sensor Board

• Current Sensing Capability: Up to 100A (Continuous)

• Voltage Sensing Capability: (Mauch PL-series typically support a wide range, e.g., up to 14S LiPo. This needs to be verified from the official datasheet for PL-100.) - Assuming up to 14S LiPo as common for Mauch sensors.

• Output: Analog voltage signals for current and voltage (compatible with flight controller ADC inputs).

• Enclosure Material: CFK (Carbon Fiber Composite)

• Connectivity: Typically includes standard connectors for input/output to battery and flight controller, e.g., bare wires for battery and JST-GH or similar for FC.

• Dimensions: 55 x 55 x 20mm

• Weight: 33g Lightweight, considering the enclosure.

• Calibration: Factory calibrated for accuracy.

Additional Details:

• Manufacturer: Mauch Electronics (Mauch Electronics GmbH)

• Brand: Mauch

• Generic Name: Current Sensor || Voltage Sensor || Power Sensor || Battery Monitor || Telemetry Sensor || Drone Sensor || UAV Sensor || Power Module (in sensing context) || Carbon Fiber Sensor || Drone Telemetry

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Pixhawk Flight Controllers || CubePilot Flight Controllers || Industrial Inspection UAVs || Heavy-Lift Drones || Professional Cinematography UAVs || Long-Endurance Drones || Custom Multi-Rotor UAVs || Fixed-Wing UAVs || Drone Research & Development || Any Drone Requiring Accurate Battery Telemetry

Package Details:

Includes:

• 1x Mauch 002: PL-100 Sensor Board with CFK enclosure

Frequently Asked Questions:

Q1. What is the advantage of the "CFK enclosure" on the Mauch PL-100 Sensor Board?

Ans. The CFK (Carbon Fiber Composite) enclosure provides superior protection for the Mauch PL-100 Sensor Board. It offers excellent durability against physical impacts, vibrations, and electromagnetic interference (EMI), which is crucial in a drone environment. This robust housing ensures the sensitive electronics within are well-protected, leading to more reliable and consistent performance of your current and voltage telemetry.

Q2. Is the Mauch PL-100 sensor compatible with all flight controllers that have a power module input?

Ans. The Mauch PL-100 provides analog voltage outputs for current and voltage, which are widely compatible with flight controllers that have dedicated power module analog input pins, such as most Pixhawk and CubePilot series autopilots. While it's broadly compatible, always consult your specific flight controller's manual to ensure proper pin connections and scaling factor configuration for accurate readings in the firmware (e.g., ArduPilot or PX4).

Q3. How does the Mauch PL-100 contribute to longer or safer drone flights?

Ans. The Mauch PL-100 contributes to longer and safer drone flights by providing highly accurate, real-time current and voltage telemetry. This data allows the flight controller to precisely monitor battery consumption, remaining capacity, and voltage levels. With accurate information, pilots can make informed decisions about flight duration, avoid over-discharging batteries, and respond to low-battery warnings promptly, significantly reducing the risk of unexpected power loss and improving overall flight safety.
