MATEK-H743-WING FLIGHT CONTROLLER

FC Specifications

• MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
• IMU: MPU6000 (SPI1) & ICM20602 (SPI4)
• Baro: Infineon DPS310 (I2C2)
• OSD: AT7456E (SPI2)
• Blackbox: MicroSD card slot (SDIO)
• 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
• 13x PWM outputs(including “LED” pad)
• 2x I2C
• 1x CAN
• 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
• 1x SPI3 breakout
• USB/Beep Extender with Type-C(USB2.0)
• Dual Camera Inputs switch
• 5V/9V(12V) for Camera/VTX power switch
• High-precision Current Sense
• ADC VB2 voltage divider: 1K:10K
• ADC AirSpeed voltage divider: 10K:10K
• INAV TR/SA VTX control: Yes
• Beeper : Yes
• RSSI: Yes
• Analog Airspeed sensor: Yes
• Digital Airspeed sensor: Yes
• Static power 160mA@5V

• FC Firmware

  • ArduPilot(ChiBiOS): MATEKH743
  • INAV: MATEKH743 (To be supported soon)
  • BetaFlight: MATEKH743

  PDB

  • Input voltage range: 9~36V (3~8S LiPo) w/TVS protection
  • 2x ESC power pads
  • Battery Voltage Sensor: 1:10 (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
  • Current Senor: 132A, 3.3V ADC (Scale 250 in INAV, 40 A/V in ArduPilot)
  • Sense resistor: 60A continuous, 132A burst.

  BEC 5V output

  • Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
  • Continuous current: 2 Amps, Max.3A

  BEC 9V /12V output

  • Designed for Video Transmitter, Camera, Gimbal ect.
  • Continuous current: 2 Amps, Max.3A
  • 12V option with Jumper pad

  BEC Vx output

  • Designed for Servos

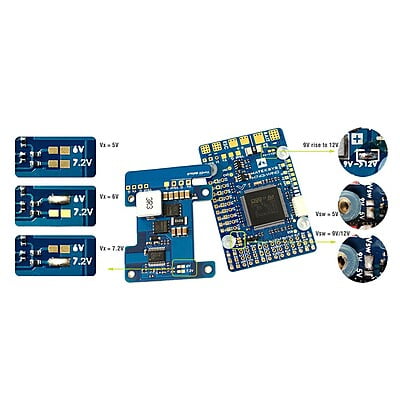

  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current: 8 Amps, Max.10A

  BEC 3.3V Output

  • Linear Regulator
  • Continuous current: 200mA

  Physical

  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

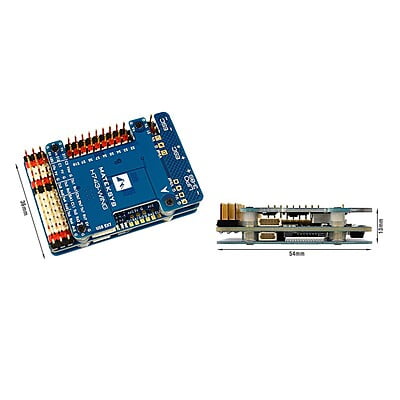

  • Dimensions: 54 x 36 x 13 mm
  • Weight: 30g with USB extender

  Includes

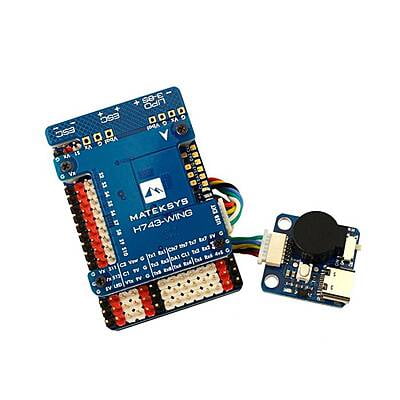

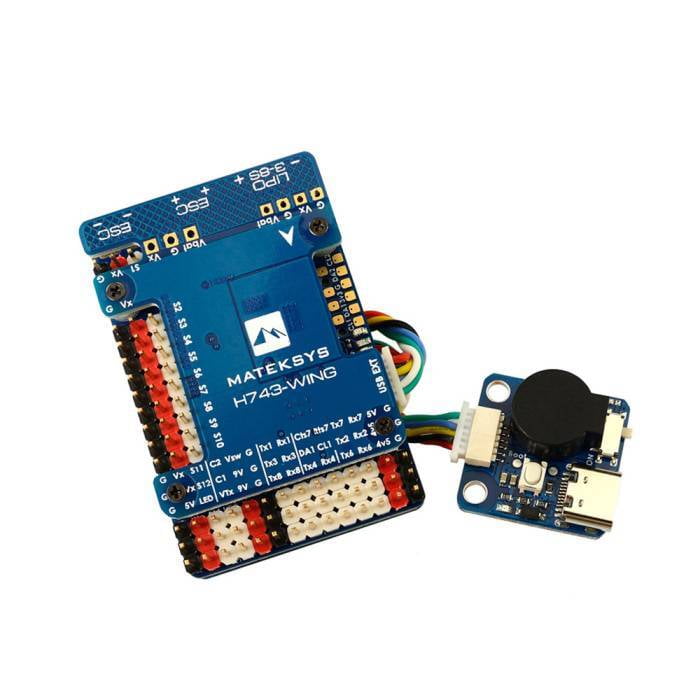

  • 1 x H743-WING
  • 1 x USB/Beep Extender
  • 1 x 20cm SH-4P to GH-4P cable for CAN port
  • 1 x 20cm SH-6P to SH-6P cable for USB extender.
  • Dupont 2.54 pins
