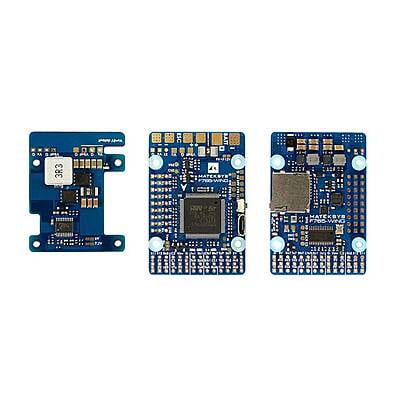

MATEK F765-WING Flight Controller
The F765-Wing include the obvious F7 processor, switchable dual camera inputs, 5V/9V switcher, and a max voltage of 36V(8S).
Product Details
About this product
Matek's line of F7 flight controllers brings a host of new possibilities to your fixed wing or multirotor. Loaded with an array of features and tons of room for peripherals, this board lets you choose how you want to fly.
New features in the F765-Wing include the obvious F7 processor, switchable dual camera inputs, 5V/9V switcher, and a max voltage of 36V(8S).
Consult the table to compare previous models.
| WING series | F765-WING | F722-WING | F405-WING | F411-WSE | F411-WING |
| Ardupilot Target | MatekF765-WING | / | MatekF405-WING | / | / |
| MCU | 216MHz | 216MHz | 168MHz | 100MHz | 100MHz |
| STM32F765 | STM32F722 | STM32F405 | STM32F411 | STM32F411 | |
| 2MB Flash | 512KB Flash | 1MB Flash | 512KB Flash | 512KB Flash | |
| IMU | MP6000 & ICM20602 | MP6000 | MP6000 | MP6000 | MP6000 |
| BARO | BMP280 | BMP280 | BMP280 | BMP280 | BMP280 |
| OSD | AT7456E | AT7456E | AT7456E | AT7456E | AT7456E |
| BlackBox | MicroSD(SDIO) | MicroSD | MicroSD | / | / |
| Dual Camera In | Yes | Yes | / | Yes | / |
| 5V/9V Switcher | Yes | Yes | / | / | / |
| Current | High precision | High precision | 104A | 78A | 78A |
| Sense | 132A | 132A | |||
| Max.Voltage | 36V(8S) | 36V(8S) | 30V(6S) | 30V(6S) | 30V(6S) |
| Motors | 2 | 2 | 2 | 2 | 2 |
| Servos | 10 | 6 | 7 | 4 | 5 |
| Total PWM | 12 | 8 | 9 | 6 | 7 |
| UART | 7 | 5 | 6 | 2 | 2 |
| Softserial | 1 | 1 | 1 | 2 | 1 |
| Uart Inversion | All | All | RX2 | RX2 | RX1 |
| 5V | 2A | 2A | 2A | 2A | 2A |
| 9V | 2A | 2A | 2A | / | / |
| Vx | 8A/10A | 5A | 5A | 3.5A/5A | 3A |
| 3.3V | 200mA | 200mA | 500mA | 200mA | 200mA |
| Size | 54×36 | 54×36 | 56×36 | 28×28 | 41×28 |
| Weight | 26g | 25g | 25g | 8.5g | 12g |
Specifications
- MCU: STM32F765VIT6, 216MHz , 512KB RAM, 2MB Flash
- IMU: MPU6000 (SPI1) & ICM20602 (SPI3)
- Baro: BMP280 (I2C2)
- OSD: AT7456E (SPI2)
- Blackbox: MicroSD card slot (SDIO)
- 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
- 1x Softserial1_Tx (INAV)
- 12x PWM outputs (S1~S10 support Dshot)
- 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 2x I2C
- 1x SPI4 breakout
- Switchable Dual Camera Inputs
- Switchable 5V/9V(12V) for Camera/VTX
- High-precision Current Sense
- ADC VB2 voltage divider: 1K:10K
- ADC AirSpeed voltage divider: 10K:10K
- TR/SA VTX control: Yes
- WS2812 Led Strip : Yes
- Beeper : Yes
- RSSI: Yes
- Analog Airspeed sensor: Yes
- Digital Airspeed sensor: Yes
FC Firmware
- INAV Target: MATEKF765
- ArduPilot(ChiBiOS) Target: MATEKF765-WING

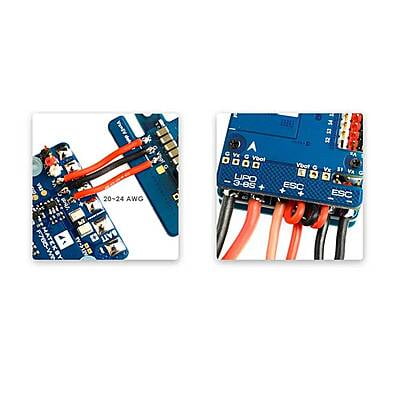

PDB
- Input voltage range: 9~36V (3~8S LiPo) w/TVS protection
- 2x ESC power pads
- Battery Voltage Sensor: 1:10 (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
- Current Senor: 132A, 3.3V ADC (Scale 250 in INAV, 40 A/V in ArduPilot)
BEC 5V output
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
- Continuous current: 2 Amps, Max.3A
BEC 9V /12V output
- Designed for Video Transmitter, Camera, Gimbal ect.
- Continuous current: 2 Amps, Max.3A
- 12V option with Jumper pad
BEC Vx output
- Designed for Servos
- Voltage adjustable, 5V Default, 6V or 7.2V via jumper
- Continuous current: 8 Amps, Max.10A
BEC 3.3V output
- Designed for Baro / Compass module and Spektrum RX
- Linear Regulator
- Continuous current: 200mA

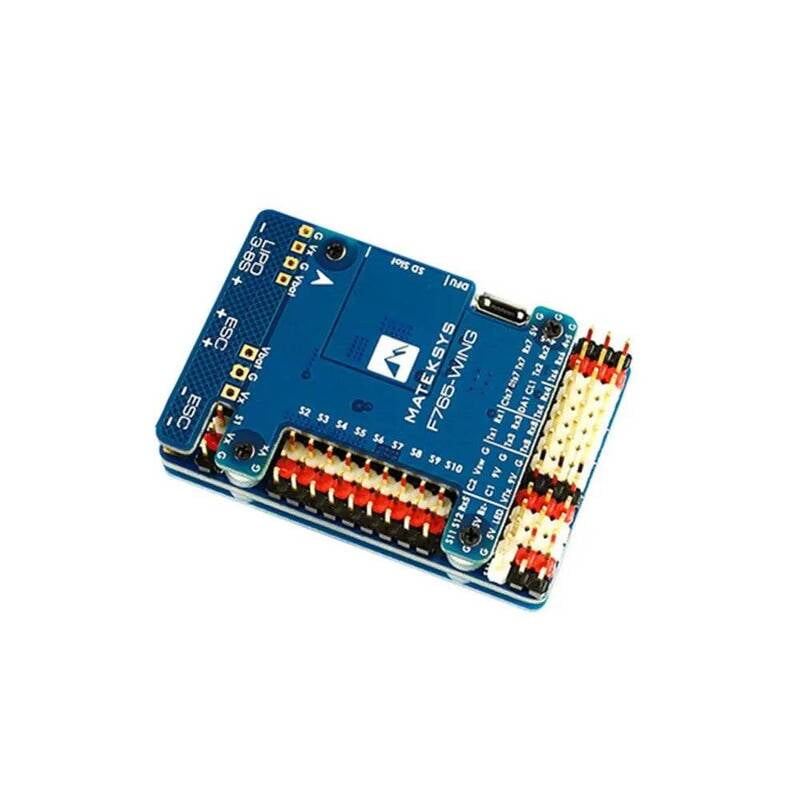

Physical
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

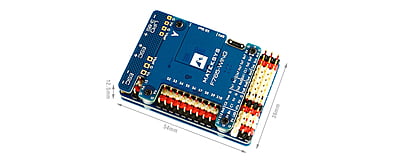

- Dimensions: 54 x 36 x 13 mm
- Weight: 26g
Includes
- 1 x Matek F765-Wing FC
- Pin Headers
