MAPLE-LEAF 17DBI ANTENNA
₹2,999.00
Out of stock

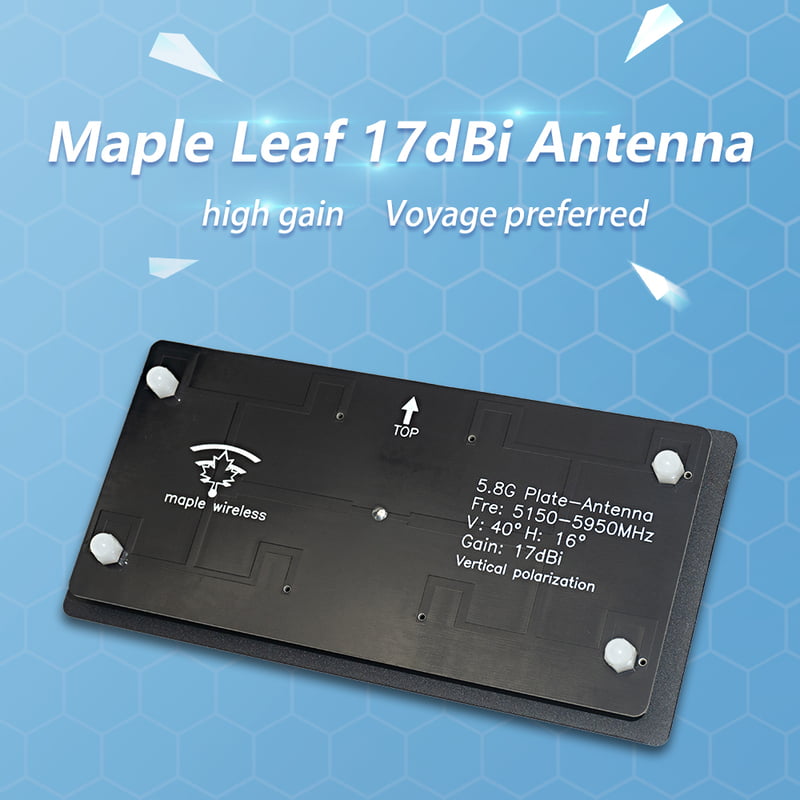

The Maple Wireless 17dBi Patch Antenna is a high-gain, directional antenna operating in the 5.8GHz FPV video frequency band.1 Its impressive 17 dBi gain delivers superior signal strength and extended range for long-distance FPV flights. Designed for use with a ground station or Antenna Tracker, its narrow 16 horizontal beam requires precise aiming to maintain a solid, reliable video link.
Product Details
Features:
- The antenna has strong directivity, high gain, lightweight structure, good anti-interference system
- Low loss PCB is used as the main material of the antenna radiator, ensuring the transmission of high frequency signal
- Used in radio-controlled devices, media systems, network bridges, WiFi, etc.
- Lightweight design reduces the load on the tracking system
- Asymmetrical radiation pattern facilitates signal tracking

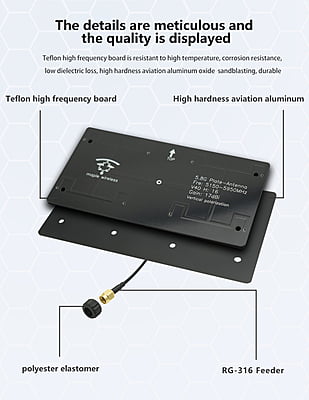

- Teflon high frequency plate is high temperature resistant, corrosion resistant, low dielectric loss, machined with aircraft grade aluminum oxide
Technical Details:
- Frequency: 5.8G
- Gain: 17dBi
- Bandwidth: 5180-5950MHz
- Input impedance: 50 Ohm
- VSWR: <1.5
- Half power beamwidth:
- Vertical: 38°
- Horizontal: 16°
- Static protection: DC ground
- Size: 136 x 68 x 10mm
Additional Details:
- Manufacturer: Maple Wireless (Often referred to as Maple-Leaf in retail)
- Brand: Maple Wireless
- Generic Name: High-Gain FPV Antenna, 5.8 GHz Directional Antenna, Patch Antenna, Ground Station Antenna, AAT Antenna
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Long-Range FPV flying (Long-Range R/C), Ground Station setups, FPV Pilots using Automatic Antenna Trackers (AAT), and Fixed-Wing FPV applications.
Package Details:
- Includes
- 1 * MAPLE-LEAF 17DBI ANTENNA
Frequently Asked Questions (FAQ)
Q1. Is the Maple Wireless 17 dBi antenna suitable for a casual, close-range FPV flight?
ANS: No. Its high gain and narrow 16 beams are designed for long-distance flight.18 It requires constant, accurate pointing and is too narrow beamed for general freestyle or proximity flying.
Q2. What type of polarization should my drone's VTX antenna have when using this patch?
ANS: This antenna uses Linear Vertical Polarization.19 For best performance, your drone's VTX antenna should also be a Linear Vertical (e.g., a simple whip antenna mounted vertically).
Q3. Do I need an Antenna Tracker to use this 17 dBi patch?
ANS: While you can aim it manually, the narrow beam makes it challenging. It is highly recommended for use with an Automatic Antenna Tracker (AAT) or a tripod for stable, long-range links.
