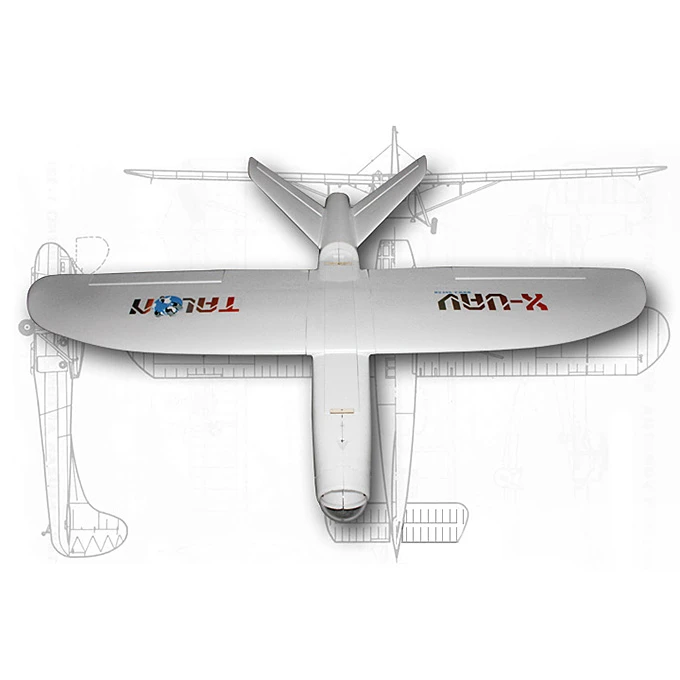

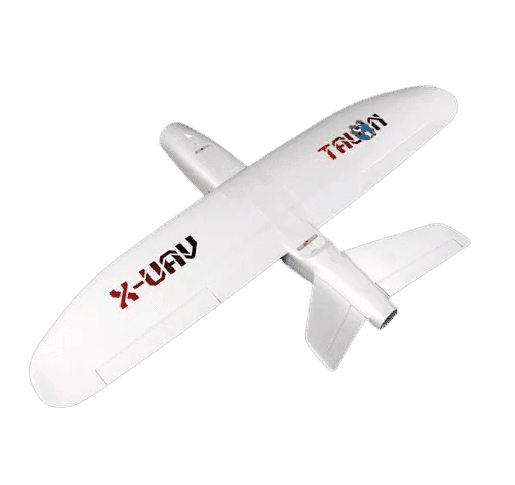

Mapbird evo model (XUAV Talon V-tail FPV Plane Aircraft Kit V3)

Features:

• Durable EPO foam airframe.

• Efficient V-tail design.

• Large internal payload bay.

• Excellent long-range FPV platform.

• Optimized for aerial mapping.

• Easy to assemble kit.

• Stable flight characteristics.

• Generous wing area for lift.

• Supports various autopilot systems.

• V3 improvements for enhanced performance.

Technical Specifications:

• Model: XUAV Talon V-tail FPV Plane Aircraft Kit V3 (also known as "Mapbird Evo")

• Material: EPO

• Wingspan: 1718 mm

• Length: 1100 mm

• Flying Weight: 2500–3000 g

• Wing Area: 60 d㎡

• Wing Load: 55–66 g/d㎡

• Payload Capacity: 1–2 kg

• Flying Range: 200 km

• Motor: 2820 KV570 motor (recommended)

• Thrust Force: 3000 g

• ESC: 60A (recommended)

• Servos: 2 × 9g servos + 2 × 17g servos (recommended)

• Propeller: ≤ 12 inch (recommended)

• Battery: 22.2V, 6S, 16000 mAh Li-polymer (recommended)

• Control System: FS-TH9X + R9B transmitter (recommended)

Additional Details:

• Manufacturer: XUAV

• Brand: XUAV

• Generic Name: FPV Plane Kit || Fixed Wing Aircraft || RC Plane Kit || UAV Airframe || V-Tail Plane || Mapping Drone Platform || Long Range FPV || EPO Foam Plane || Aircraft Kit || Autonomous Flight Platform

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Long-Range FPV Enthusiasts || Aerial Mapping & Surveying || Autonomous UAV Development || Custom Fixed-Wing Drone Builds || Professional Inspection Missions || Surveillance & Reconnaissance || Scientific Research Platforms || Education & Training (UAV) || Endurance Flight Records || DIY RC Aircraft Builders

Package Details:

Includes:

• 1x XUAV Talon V3 "Mapbird Evo" EPO Airframe Kit"

Frequently Asked Questions:

Q1. What does "Kit V3" mean for the XUAV Talon, and what is included?

Ans. "Kit V3" signifies that this is the third improved version of the XUAV Talon airframe, sold as an unassembled kit. This means you receive the foam airframe parts and essential structural components (like carbon spars and basic hardware). You will need to separately purchase and install all electronics, such as the motor, ESC, servos, battery, flight controller, receiver, and FPV system, to make it flight-ready.

Q2. What are the advantages of a "V-tail" design for an FPV plane like the XUAV Talon?

Ans. The "V-tail" design of the XUAV Talon offers several advantages for FPV and UAV applications. It reduces drag compared to a conventional cruciform tail, which can improve efficiency and endurance. It also provides a clearer view for a rear-mounted pusher propeller and can be less prone to damage during landings. The V-tail configuration often results in highly responsive and coordinated yaw and pitch control.

Q3. Is the XUAV Talon V3 suitable for beginners in RC fixed-wing aircraft?

Ans. The XUAV Talon V3 is not typically recommended for absolute beginners to RC fixed-wing aircraft. While it offers stable flight characteristics, its assembly as a kit requires some technical understanding, and its size and capabilities are more suited for intermediate to advanced pilots. Beginners should consider a smaller, ready-to-fly (RTF) or plug-and-play (PNP) trainer aircraft before moving to a kit like the Talon for a better learning experience.
