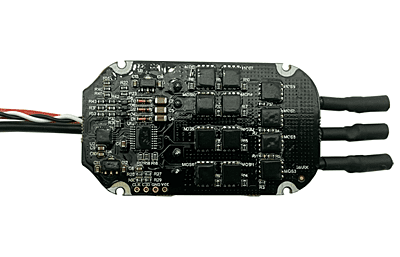

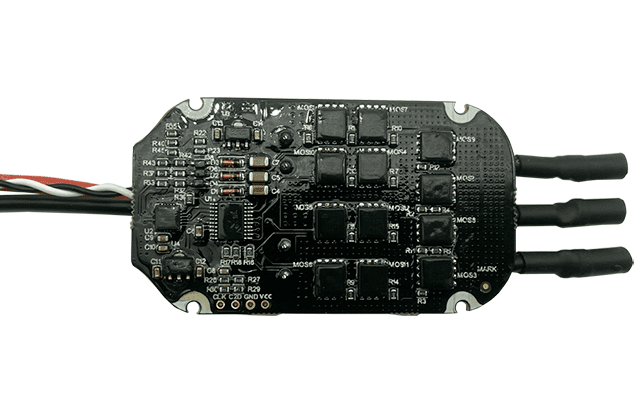

Makeflyeasy Mapbird 6S Brushless ESC

Features :

• Supports 6S LiPo battery input.

• Optimized for Makeflyeasy industrial motors.

• Smooth starting and efficient power output.

• Robust design for heavy-duty applications.

• Precise throttle response for stable flight.

• Excellent heat dissipation for reliability.

• Multiple protection features (over-current, over-temp).

• Durable components ensure long service life.

• Ideal for professional UAV operations.

• Simplified wiring for cleaner builds.

Technical Specifications :

• Firmware: Deeply optimized proprietary firmware for MFE motors

• Processor: designed for industrial reliability

• Throttle Signal: Standard PWM

• Signal Cable: 30-core black and white twisted pair (approx. 46cm)

• Cold Pressed Terminals: 0T2.5-4 (for input/output connections)

• Protection Features: Over-current protection, Over-temperature protection, Low-voltage cutoff, Throttle signal loss, potentially motor lock-up.




60A :

• Continuous Current: 60A

• Peak Current (10s): 70A

• Input Voltage (LiPo): 6S

• BEC Output: No BEC (OPTO)

• Power Cord (AWG): 16AWG

• Motor Cables (AWG): 16AWG

• Banana Head: 3.5mm Female

• Weight: 49g

100A :

• Continuous Current: 100A

• Peak Current (10s): 120A

• Input Voltage (LiPo): 6S

• BEC Output: No BEC (OPTO)

• Power Cord (AWG): 12AWG

• Motor Cables (AWG): 12AWG

• Banana Head: 4.0mm Female

• Weight: 85g

Additional Details:

• Manufacturer: Makeflyeasy

• Brand: Makeflyeasy (MFE)

• Generic Name: Brushless Electronic Speed Controller || ESC || 6S ESC || Industrial Drone ESC || Agricultural Drone ESC || Motor Controller || Speed Controller || UAV ESC || Heavy Duty ESC || OPTO ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Spraying Drones || Industrial Inspection Drones || Logistics & Delivery UAVs || Heavy-Lift Drones || Professional Mapping Drones || Long-Endurance UAVs || Custom Large Drone Builds || Surveillance Drones || Search & Rescue UAVs || VTOL Fixed-Wing Aircraft (specific models)

Package Details:

Includes:

• 1x Makeflyeasy Mapbird 6S Brushless ESC (specific amperage model: 60A or 100A)

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. Is the Makeflyeasy Mapbird 6S Brushless ESC compatible with any brushless drone motor?

Ans. The Makeflyeasy Mapbird 6S Brushless ESC is specifically optimized for Makeflyeasy's own range of industrial motors (e.g., MFE 5008 KV400 for the 60A version). While it might function with other motors, there is a noted risk of issues like starting jamming, high current blocking, or even burning if used with non-optimized motors. It is highly recommended to use it with compatible MFE motors for optimal and safe performance.

Q2. Does this ESC include a BEC to power my flight controller or receiver?

Ans. No, the Makeflyeasy Mapbird 6S Brushless ESC is an "OPTO" type ESC, which means it does not have a built-in Battery Eliminator Circuit (BEC). For your flight controller, receiver, and other low-voltage electronics, you will need to provide power from a separate, dedicated BEC or a power distribution board that includes a BEC.

Q3. What kind of applications is the Makeflyeasy Mapbird 6S ESC best suited for?

Ans. The Makeflyeasy Mapbird 6S ESC is primarily designed for demanding industrial and agricultural drone applications. Its high current capacity and 6S LiPo compatibility make it ideal for heavy-lift multirotors, spraying drones, inspection UAVs, and other professional platforms requiring robust, stable, and efficient power delivery for large brushless motors.
