Made In India Stack H760
Non-returnable
₹9,999.00
Out of stock
Choose Quantity
Product Details
Technical Specifications

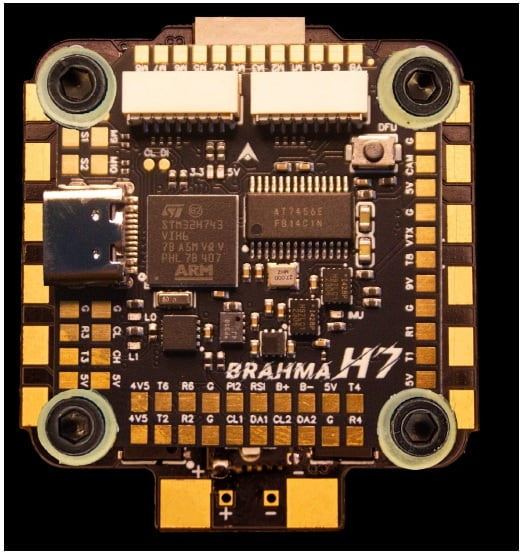

BRAHMA H7 – Specifications
Product Name - DARKMATTER BRAHMA H7
Product Category - Flight Controller
Processor (MCU) - STM32H743VIT6 ARM (480MHz)
Gyroscope (IMU) - DUAL ICM42688
Barometer - DPS310
On-Screen Display - AT7456E
Blackbox - SD CARD
USB Port Type - Type-C
Supported Flight Controller Firmware - BetaFlight (Default), iNav, Ardupilot, PX4
Power Input - 3-6S LiPo

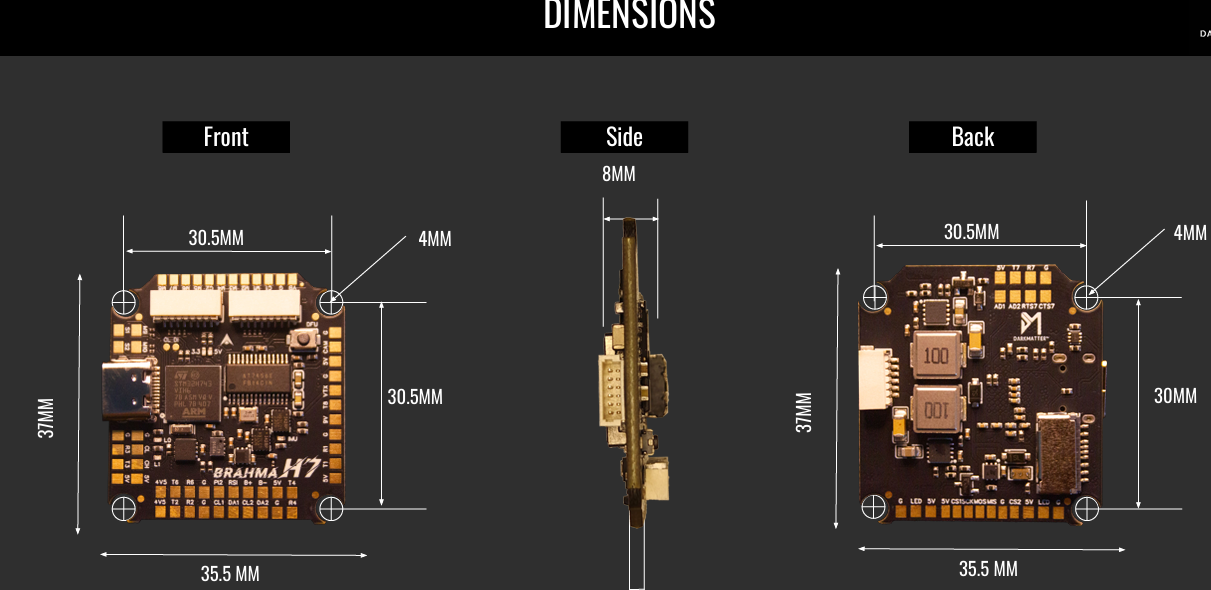

Mounting - 30.5 X 30.5mm (4mm hole size)
Dimensions - 37mm (L) x 35.5 mm(W) x 8mm(H)
Weight - 9g
VISHNU 60 – Specifications
Product Name - DARKMATTER VISHNU 60
Product Category - ELECTRONIC SPEED CONTROLLER (ESC)
Firmware - BLHeli_S /BlueJay ( JH_50 )
Burst Current - 90A (7 Seconds)
Continuous Current - 60A x 4 = 240A
ESC Protocol - DSHOT300/600
Power Input - 3-6S BAT (IMPORTANT Please solder the low ESR capacitor between VBAT "+" and" -", and the VBAT “-” should be connected to the -ve side of the capacitor only.)
Power Output - VBAT
Current Sensor - Inbuilt
Mounting - 30.5 x 30.5mm, 4mm hole size
Dimensions - 46 * 48.8 * 5.7mm
Weight - 14g
COUNTRY OF ORIGIN - INDIA
(Supported Motors PLEASE CHECK MOTOR MAX CURRENT DRAW FROM MOTOR MANUFACTURER’S MANUAL, SHOULD BE BELOW 70-80A. PROVIDED YOU ARE NOT PLANNING TO FLY ON 100% THROTTLE FOR 100% OF THE TIME WITH THE LARGEST PROP SUPPORTED BY THE MOTOR, IF THAT'S THE CASE LOOK FOR 60A OR BELOW. Operating Temperature-20 to 70 Degree Celsius)
