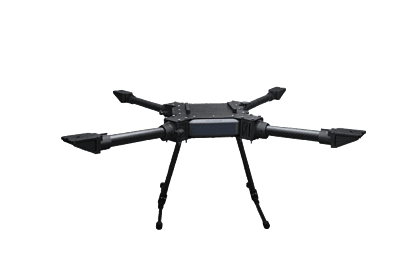

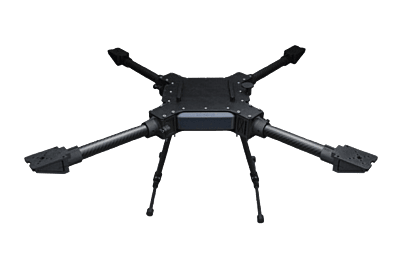

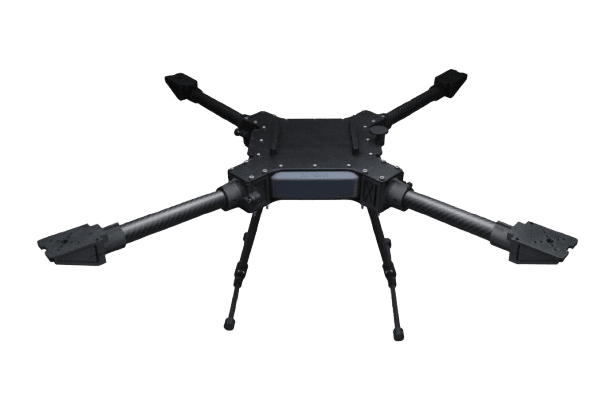

Made In India Skynexus S-1 Surveillance Drone Frame

Features:

• Durable carbon fiber material

• Modular design for easy assembly

• Optimized for stable surveillance operations

• A made-in-India quality product

• Specifically engineered for surveillance drone builds

Technical Specifications:

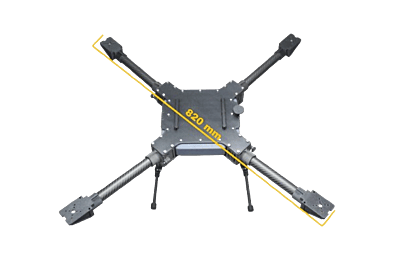

• Wheelbase - 820mm

• Propeller - 13 - 15 inch

• Centre body dimension - 200/200mm

• Landing gear height - 240mm

• Battery - 3s to 6s Lipo

• ESC- Upto 60amp

• Working temperature - 10-60 degree C

• Max takeoff weight - 6kgs

• Weight - 855 gm

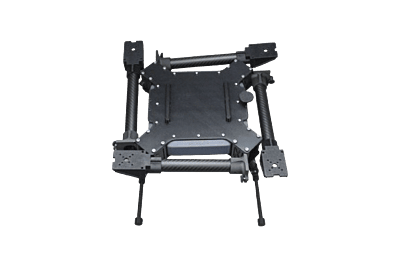

• Horizontal folding arms

• Compatible with Tmotors (380kv)

• Body material - High quality ABS plastic, Nylon

• Carbon fibre & Pure carbon fibre

Additional Details:

• Manufacturer: Skynexus Avionics (P) Ltd.

• Brand: Skynexus

• Generic Name: Drone Frame, Drone Chassis, UAV Frame Kit

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Drone builders, surveillance professionals, hobbyists, security agencies, and researchers.

Package Details:

Includes:

• Top plate - 1 Piece

• Bottom plate - 1 piece

• Centre body - 1 piece

• Arm tube - 4 piece

• Folding arm sets - 4 pieces

• Landing gears - 2 pieces

• Battery connector - XT90 (male)

• Allen key - 2 pieces (2.5mm & 3mm)

• Battery strap - 2 piece

• Flight controller mounting plate

• Power distribution board - 1piece

• GPS mount - 1 piece

Frequently Asked Questions:

Q1: Why is the Skynexus S-1 frame so heavy?

A1: At 855g, the frame is likely designed for professional, heavy-duty use, built to carry large payloads and endure demanding conditions.

Q2: What is the purpose of the horizontal folding arms?

A2: They are an uncommon feature on a heavy frame, suggesting a specialized need for compact transport and storage, possibly for a specific type of vehicle or case.

Q3: Why does the Skynexus S-1 have such tall landing gear?

A3: The 240mm (9.4-inch) height gives the drone high ground clearance, which is essential for landing on uneven surfaces like tall grass or rocky ground. It also protects a large camera or other payload mounted underneath the drone from damage during takeoff and landing.
