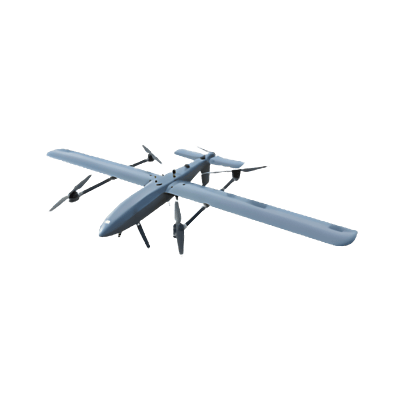

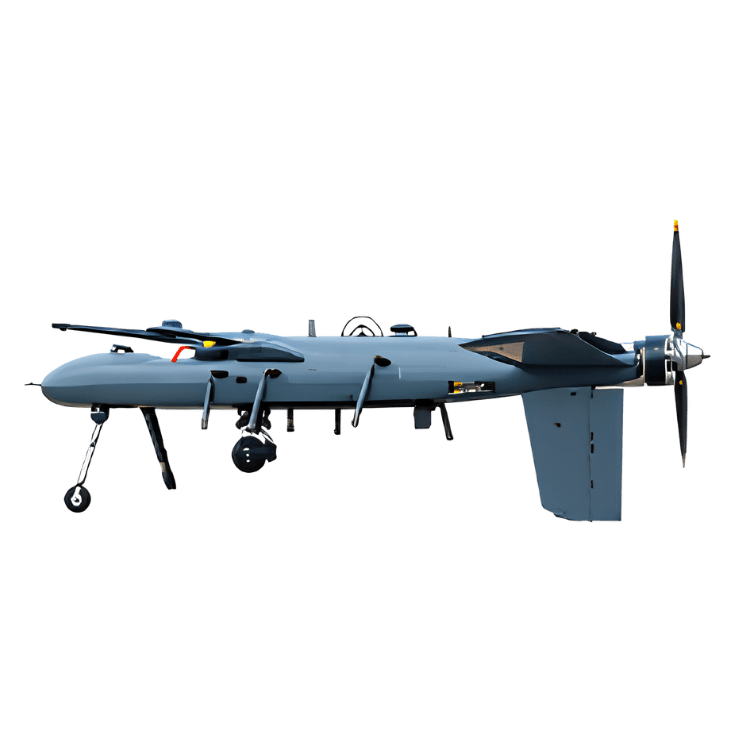

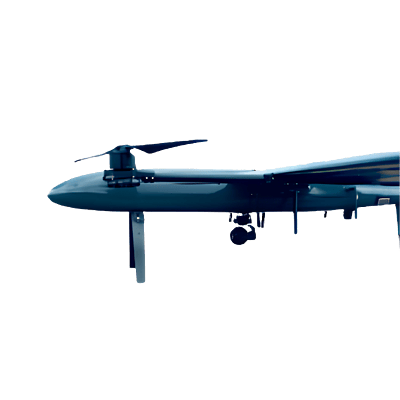

Made in India Shaurya Mark 4 VTOL PNP Kit
₹1,026,767.64
Out of stock
The SHAURYA PNP Kit is supplied as a complete pre-manufactured airframe and propulsion package, comprising all major structural, mechanical, and electrical integration components required for aircraft assembly.
Choose Quantity
Product Details
Features :
- Robust construction utilizes high-strength carbon fiber composite, Kevlar, and aerospace-grade aluminium.
- VTOL (Vertical Take-Off and Landing) capability eliminates the need for runways and large launch areas.
- Heavy-lift capabilities allow for a 22 kg maximum take-off weight with up to a 5 kg payload.

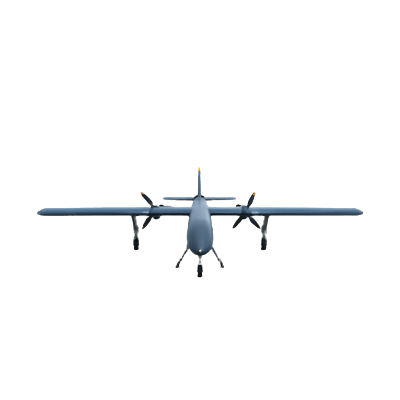

- Tool-less disassembly method allows a single crew member to set up the aircraft in just 10 minutes.
- Advanced failsafe systems protect against GPS glitches, low battery, bad sensor data, and vibrations.
- Designed for extreme conditions with a wind resistance of 12m/s and an operating temperature range of -20°C to 55°C.
- Dedicated transport box ensures safe shipping and mobility to remote operational sites.
- Advanced optional upgrades include frequency hopping, GPS-denied application capabilities, and anti-radar paint.
- Electrical Integration: Complete aircraft wiring harness for all electronic systems, including power distribution and signal wiring.
- EMI-shielded and protected wiring with appropriate insulation, connectors, cable management, and mechanical protection for reliable operation.
- The kit is supplied as a Plug-and-Play (PNP) package, with all structural components, propulsion units, wiring harnesses, and mechanical assemblies prepared for final integration.
Technical Specifications :
- Brand Name: Shaurya
- Model: Mark 4 VTOL UAV
- Wingspan: 3 meter
- Fuselage length: 1758mm
- Fuselage height: 419mm
- Material: High-strength carbon fiber composite, Kevlar, aerospace-grade aluminium
- MAX Take-Off weight: 22 kg (with 5 kg payload)
- Payload capacity: UP TO 5 kg
- Endurance: 90 min (with 5 KG Payload)
- Maximum speed: 30 m/s
- Cruise speed: 18-25 m/s
- Motor Configuration: 4+1 (Vtol M6 150kv, Fixedwing M7 215kv)
- Service Ceiling Altitude: 1000m AGL
Additional Details :
- Manufacturer: SARUS AEROSPACE
- Brand: Shaurya (Made In India)
- Generic Name: VTOL UAV, Commercial Drone, Delivery Drone, Surveillance UAV, Hybrid Fixed-Wing
- Sold By: UAV marketplace
- Ideal For: Enterprise Surveillance, Long-Range Delivery, Tactical Operations, Advanced Aerial Mapping, Industrial Applications
Package Details :
- Composite fuselage – 1 No.
- Right wing – 1 No.
- Left wing – 1 No.
- Tail assembly – 1 No.
- Right elevator – 1 No.
- Left elevator – 1 No.
- Nose canopy – 1 No.
- Electronics canopy – 1 No.
- Parachute canopy – 1 No.
- ESC canopy – 1 No.
- Payload compartment – 1 No.
- Carbon fiber rods:
- Ø16 × Ø12 × 749 mm – 1 No.
- Ø14 × Ø10 × 749 mm – 1 No.
- Transportation/storage box with protective packaging – 1 No. Propulsion & Control System:
- M6 150 KV Brushless Motors – 4 Nos.
- 65A Electronic Speed Controllers (ESCs) – 4 Nos.
- Servo Motors – 5 Nos.
- Propellers (for wing motors- 246.8, ) – 4 Nos.
- M6 210 KV Brushless Motor – 1 No.
- 90A Electronic Speed Controller (ESC) – 1 No.
- Propeller (for forward propulsion-2012 ) – 1 No.
Note:
PDB, Airspeed Sensor, Flight Controller, GNSS MODULE, Compass, Telemetry, Receiver, Transmitter, Battery, CHARGER,PAYLOAD are supplied separately unless specifically included in the quotation.
Frequently Asked Questions :
Q1: Does this UAV require a runway for take-off and landing?
Ans: No, the Shaurya Mark 4 is a VTOL (Vertical Take-Off and Landing) drone. It utilizes four multirotor motors to take off vertically in confined spaces before transitioning to its highly efficient fixed-wing motor for forward flight.
Q2: What kind of battery is required for the Shaurya Mark 4?
Ans: The aircraft requires a 50V solid-state battery ranging from 22AH to 50Ah to achieve its optimal flight endurance.
Q3: Is the Shaurya Mark 4 easy to transport and assemble for field missions?
Ans: Yes, the entire aircraft fits into a customized transport box measuring 1420430470 mm. It features a tool-less disassembly method, requiring only one crew member to completely set up the drone in approximately 10 minutes.
