Made in India RD MI X8 8015 UAV BLDC Motor 12S 125KV
Non-returnable
₹14,099.00 ₹15,699.00
Out of stock

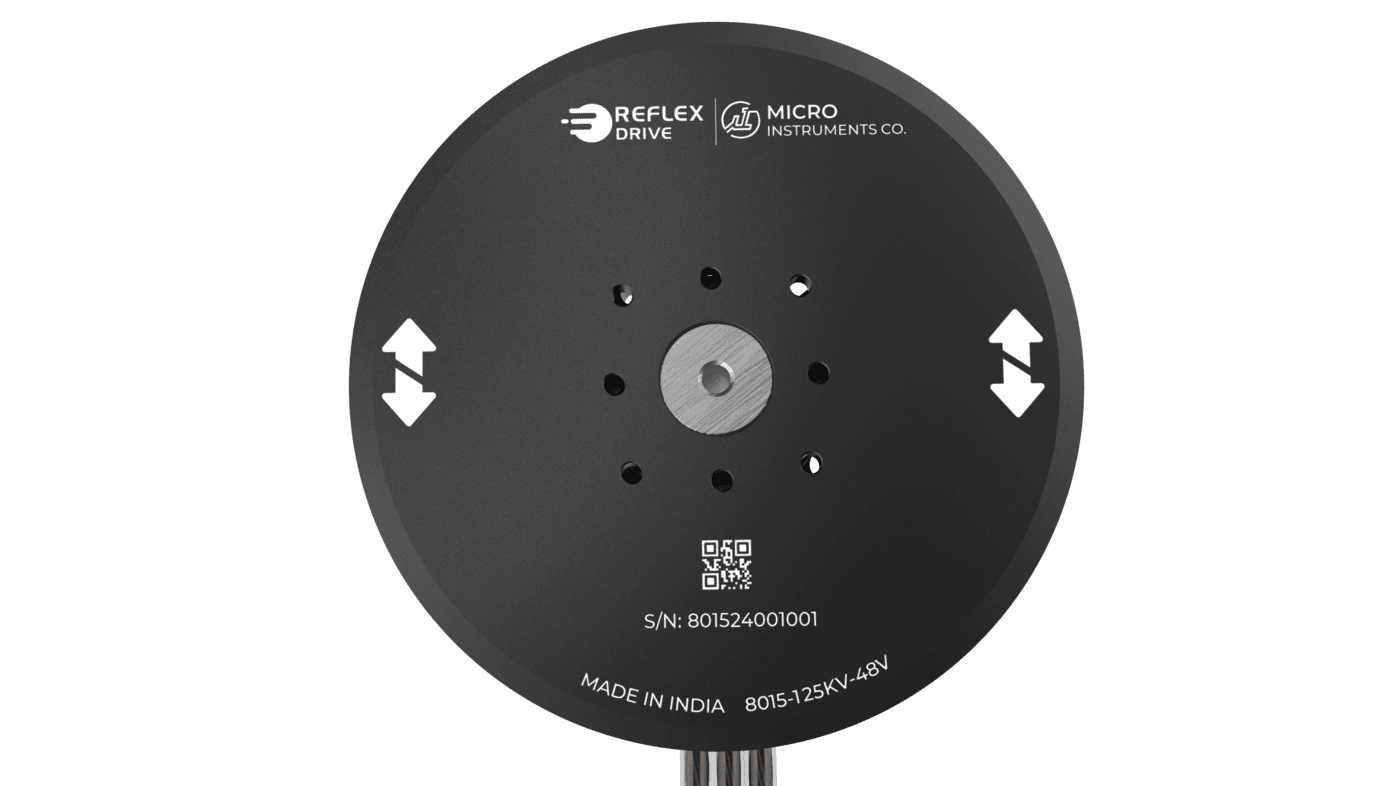

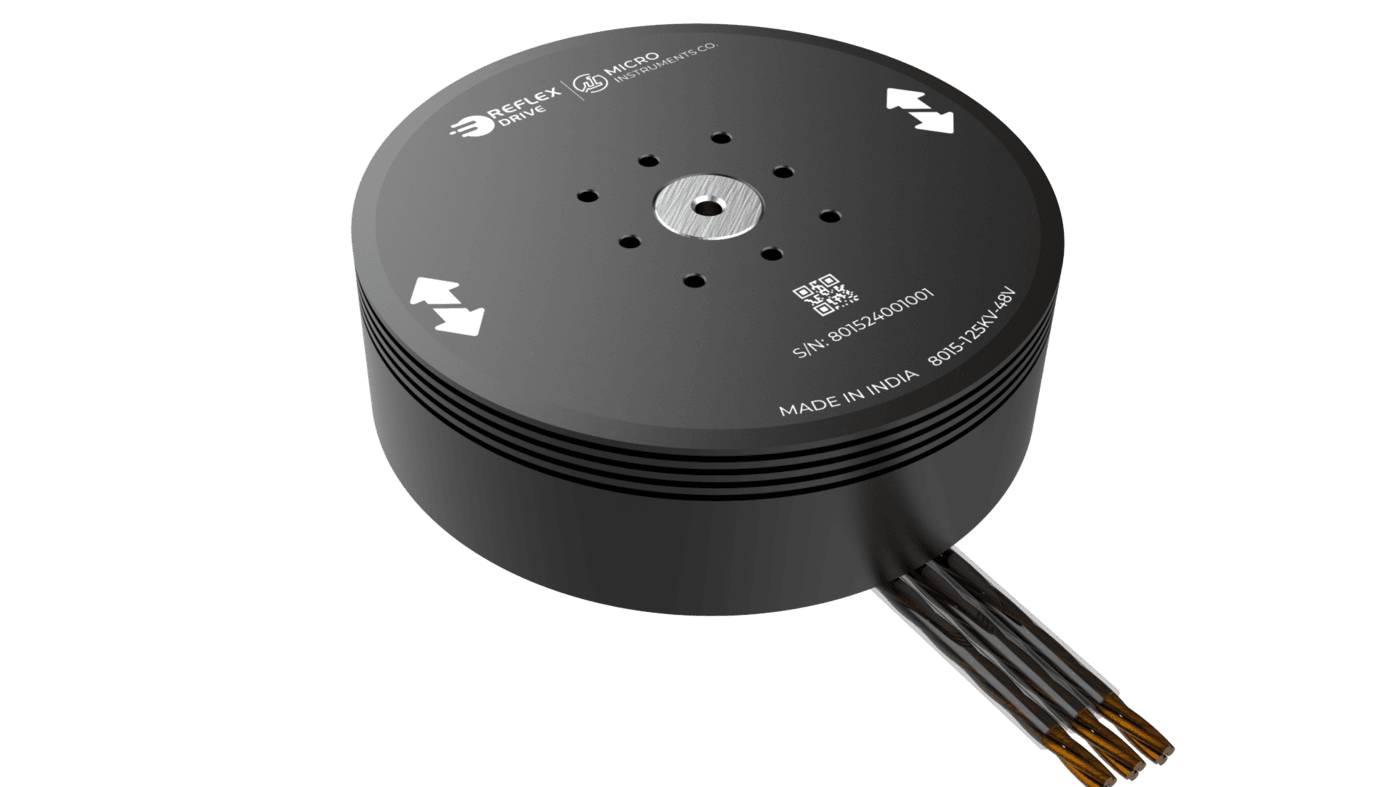

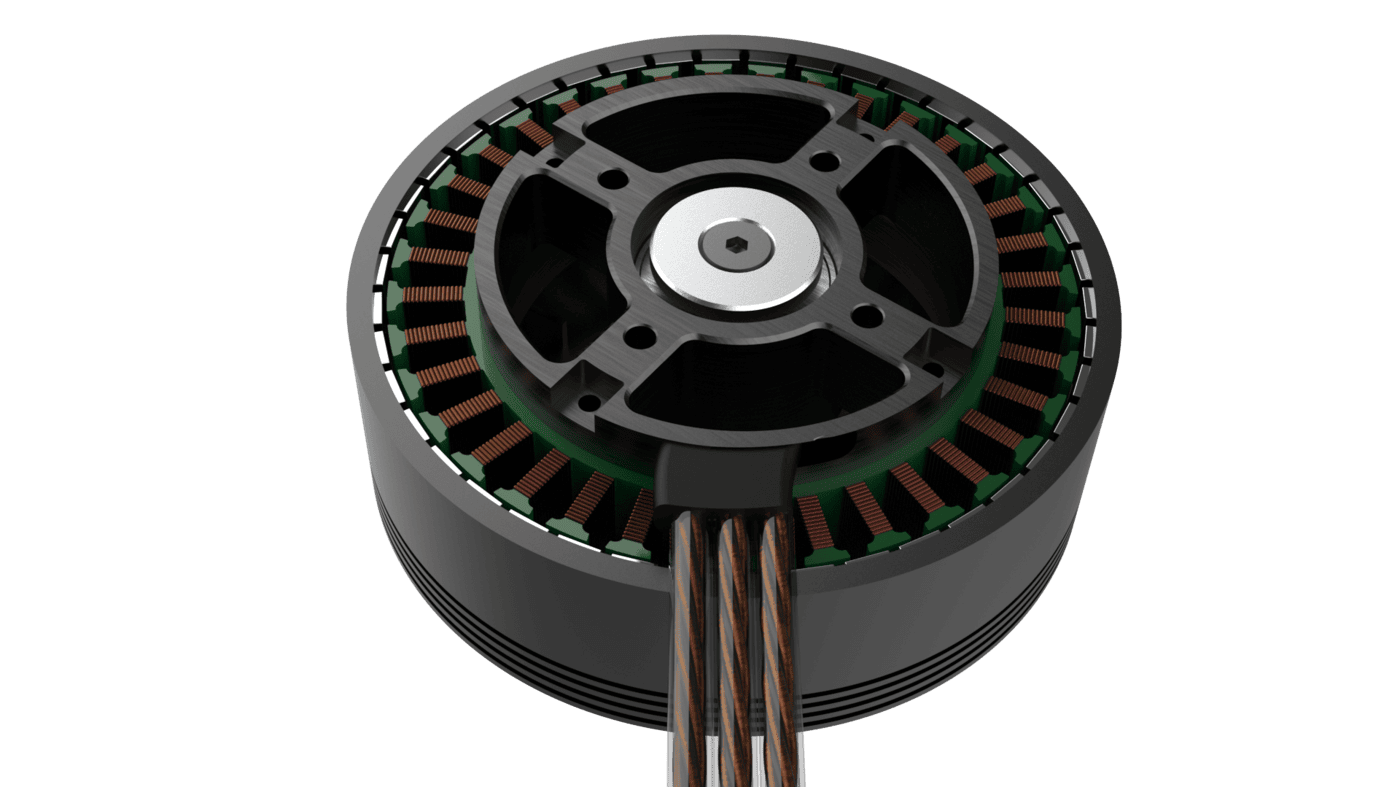

The RD MI X8 8015 125KV is a powerful, Made in India BLDC motor designed for heavy-lift multirotor UAVs. Optimized for 12S operation, it delivers substantial thrust for industrial, agricultural, and surveillance drones. Engineered for reliability and efficiency, this motor is a robust choice for demanding professional applications, supporting India's growing drone ecosystem.
Product Details
Features:
- Made in India product.
- High power for heavy-lift UAVs.
- Optimized for 12S LiPo systems.
- High efficiency for long flight.
- Low KV for large propellers.
- Robust and durable construction.
- Precision balanced rotor.
- High-quality bearings for smooth operation.
- Designed for industrial applications.
- Supports significant payload capacity.
Technical Specifications:
- Motor Type - Outrunner
- KV Rating - 125 KV
- Maximum Thrust - 14 KG
- Stator Poles / Magnet Poles - 36 / 42
- No load current - 3.2A
- Motor Efficiency - 90.99%
- Weight (Including Cable) - 509 grams
- Voltage Range - 48 V (12S LIPO - 4.2V/ pc)
- Peak Current (30 Sec) - 90 A
- Peak Power (30 Sec) - 3996 W
- Motor Dimensions - Ø90mm x 33.25mm
- Cable length - 100 mm
- Shaft Diameter (Internal) - Ø6mm
- Magnet Temperature Rating - 150 ℃
- Cable Type / Length - 14AWG / 100mm
- Copper wire Temperature Rating - 150 ℃
- Winding material - 100% Copper
- IP Rating - IP34
- Maximum Operating Temperature - 60 ℃
- Recommended Propeller - 30*95 (Folding)
- Perfomance Data:
- Motor - RD-M-X8.1
- ESC - RD Q Series ESC
- Operating Temperature - -20 °C ~ 60 ℃
- Multicopter design recommendations with RD-M-X8.1
- Recommended Propeller - 30*95 (Folding)
- Recommended ESC - RD Q Series ESC
- Quad-copter - Maximum take-off weight for the drone: 30 KG
- Hex-copter - Maximum take-off weight for the drone: 46 KG
- Oct-copter - Maximum take-off weight for the drone: 60 KG
Additional Details:
- Manufacturer: Reflex Drive
- Brand: Reflex Drive
- Generic Name: Drone Motor || Brushless Motor || Multirotor Motor || UAV Motor || Heavy Lift Motor || Industrial Drone Motor || BLDC Motor || Electric Motor || Outrunner Motor || Professional Drone Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Heavy-Lift Multi-rotors || Agricultural Drones || Industrial Inspection UAVs || Surveillance Drones || Cargo Delivery Drones || Custom Heavy-Duty Drone Builds || Commercial Drone Applications || Mapping & Surveying UAVs || Defense & Security Drones || Platforms requiring robust, high-payload capacity.
Package Details:
Includes:
- 1 x RD MI X8 8015 125KV UAV BLDC Motor
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What is the significance of "Made in India" for the RD MI X8 8015 motor?
Ans. Being "Made in India" signifies local manufacturing, potentially leading to easier procurement, quicker support, and contribution to domestic drone technology development in line with government initiatives.
Q2. What battery voltage is recommended for the RD MI X8 8015 125KV motor?
Ans. This motor is specifically designed for 12S LiPo battery systems, providing the high voltage necessary for optimal power and efficiency in heavy-lift UAV applications.
Q3. What type of applications is this motor best suited for, given its specifications?
Ans. With its 125KV and robust design, it's ideal for heavy-lift multirotor UAVs in industrial, agricultural (spraying), surveillance, and cargo delivery roles, capable of handling significant payloads.
